Zebra SP7208 single plane horizontale multi-interface AUX-poort standaardbereik

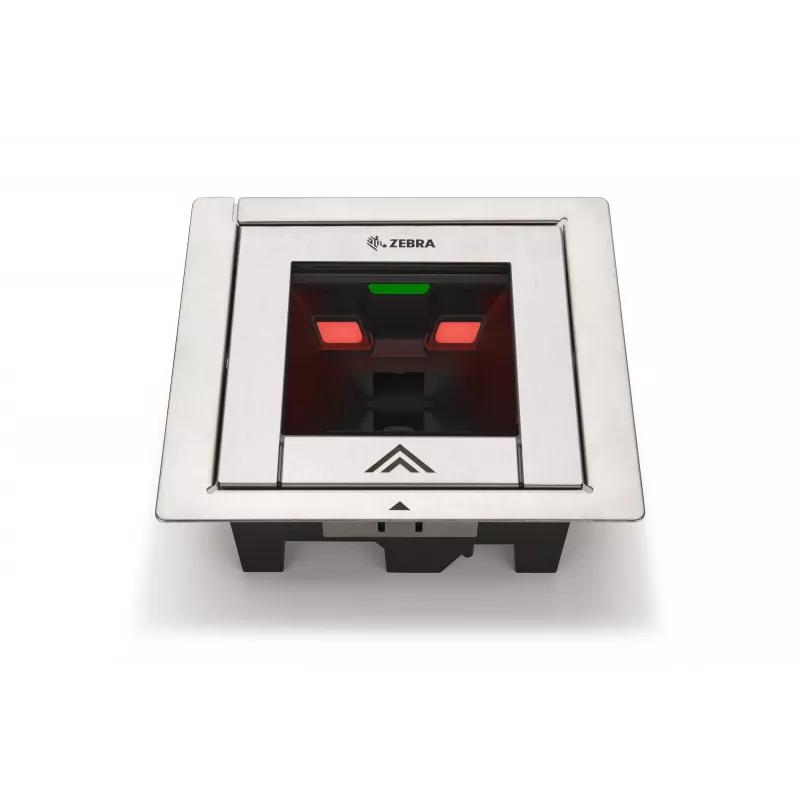

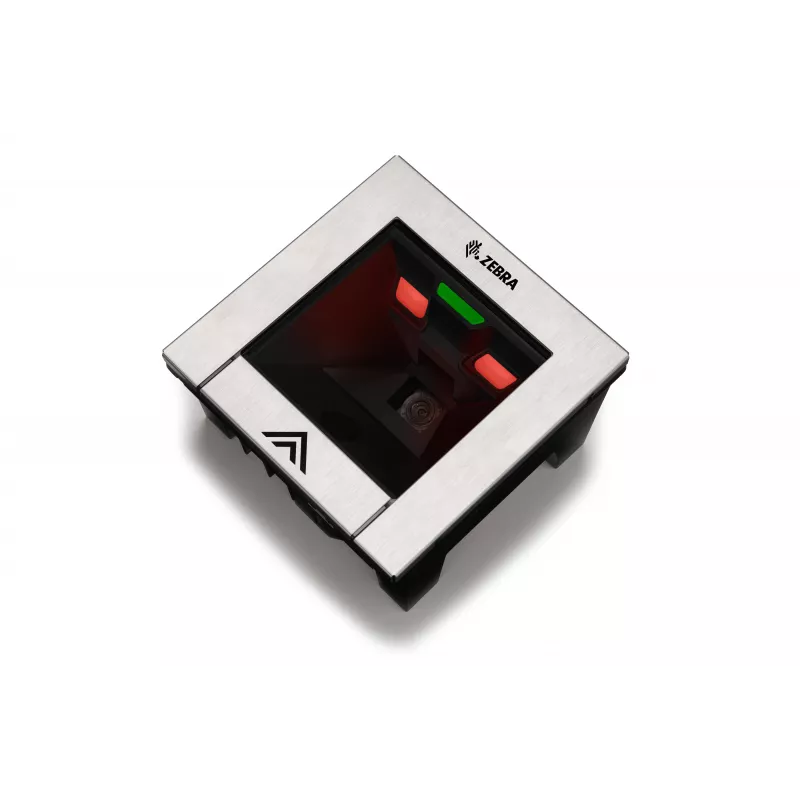

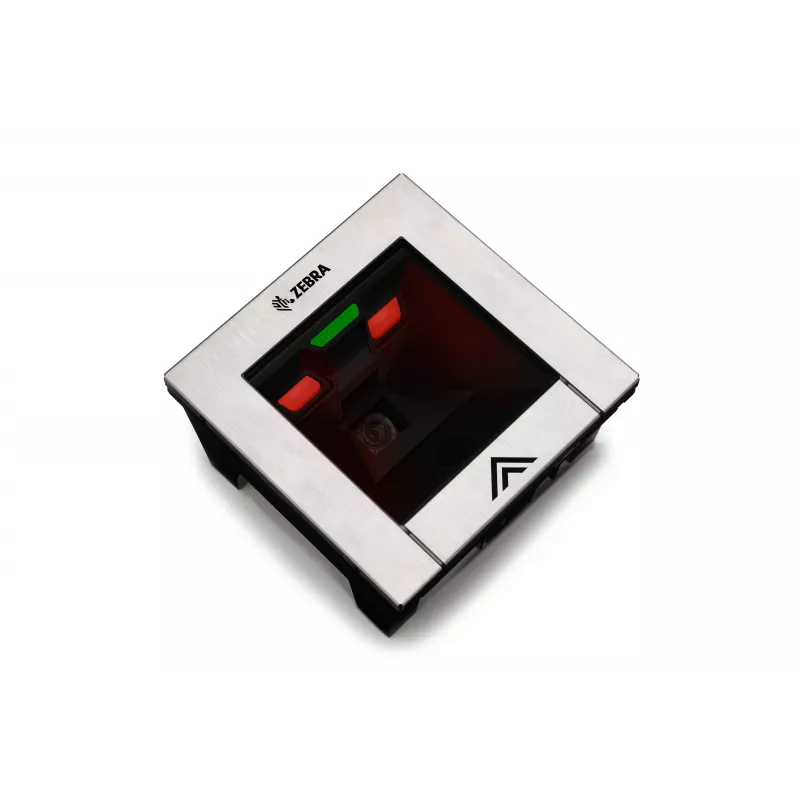

The Zebra SP7208 is a high-performance in-counter barcode scanner engineered for high-throughput retail checkout environments. Its single-plane horizontal scan pattern and 2D area imager deliver rapid, accurate reads of 1D and 2D barcodes, including mobile coupons and digital wallets, at swipe speeds up to 6.1 m/s. With a multi-interface design and auxiliary port, it integrates seamlessly into existing POS systems while supporting optional handheld scanners or EAS deactivation.

Advantages

The SP7208 excels in demanding retail settings. Its white LED illumination and 15% minimum print contrast ensure reliable scanning even on poorly printed or damaged labels. The IP52-rated housing protects against dust and moisture, while the wide operating temperature range (0°C to 40°C) and 5-95% non-condensing humidity tolerance guarantee consistent performance. The auxiliary port adds flexibility for connecting a handheld scanner or EAS system, reducing the need for additional hardware.

Suitable for

• High-volume retail checkout counters
• Supermarkets and hypermarkets
• Convenience stores and pharmacies
• Point-of-sale environments requiring 2D barcode reading
• Systems needing EAS deactivation integration

Key specifications

• Scanner type: 2D area imager
• Scan pattern: single-plane, horizontal
• Decoding capability: 1D, 2D, Digimarc (optional)
• Interface: USB, RS-232, IBM 468x/9x
• Auxiliary port: yes (for handheld scanner or EAS)
• Swipe speed: up to 6.1 m/s (240 in./sec)
• Illumination: white LED
• Minimum print contrast: 15% MRD
• Power source: host power or external power supply
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Humidity: 5% to 95% non-condensing
• IP rating: IP52
• Mounting: in-counter
• Colour: black

Recommendations

For retailers seeking a durable, high-speed in-counter scanner with multi-interface flexibility and future-proof 2D decoding, the Zebra SP7208 is an excellent investment. Its auxiliary port and EAS support make it a versatile choice for modern checkout lanes.
