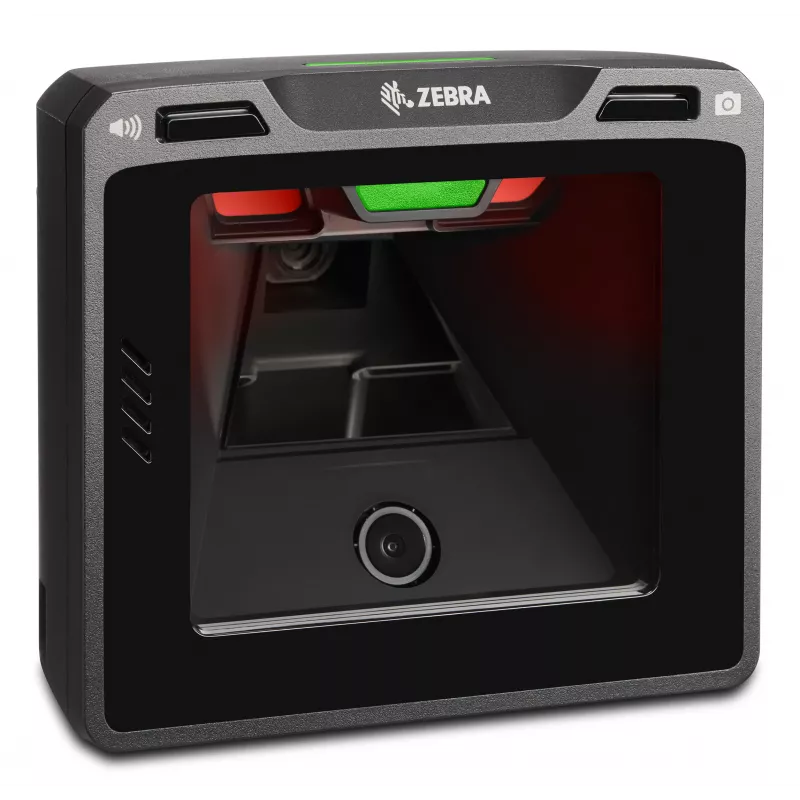

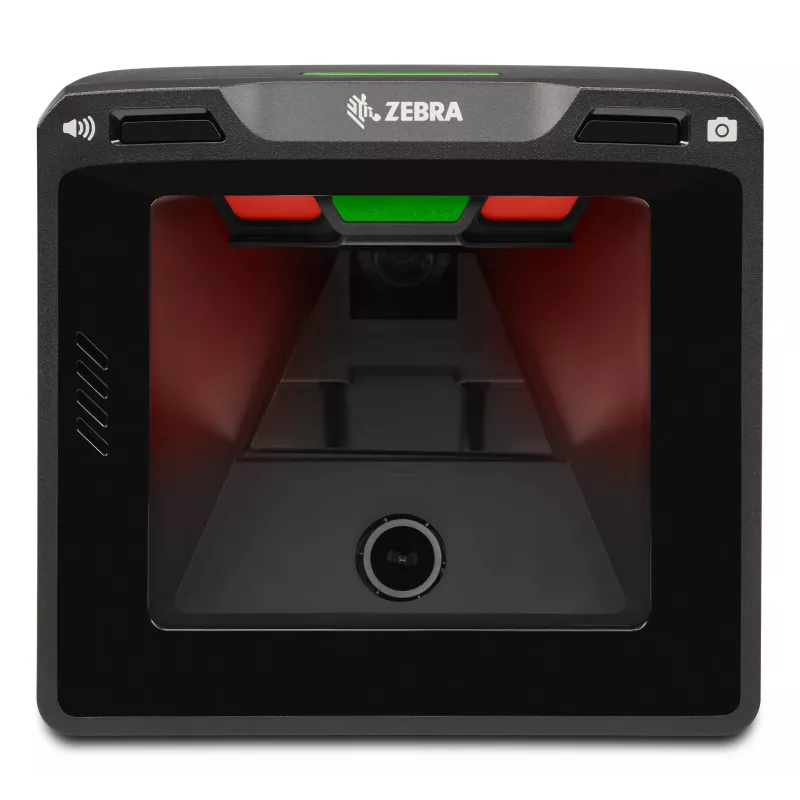

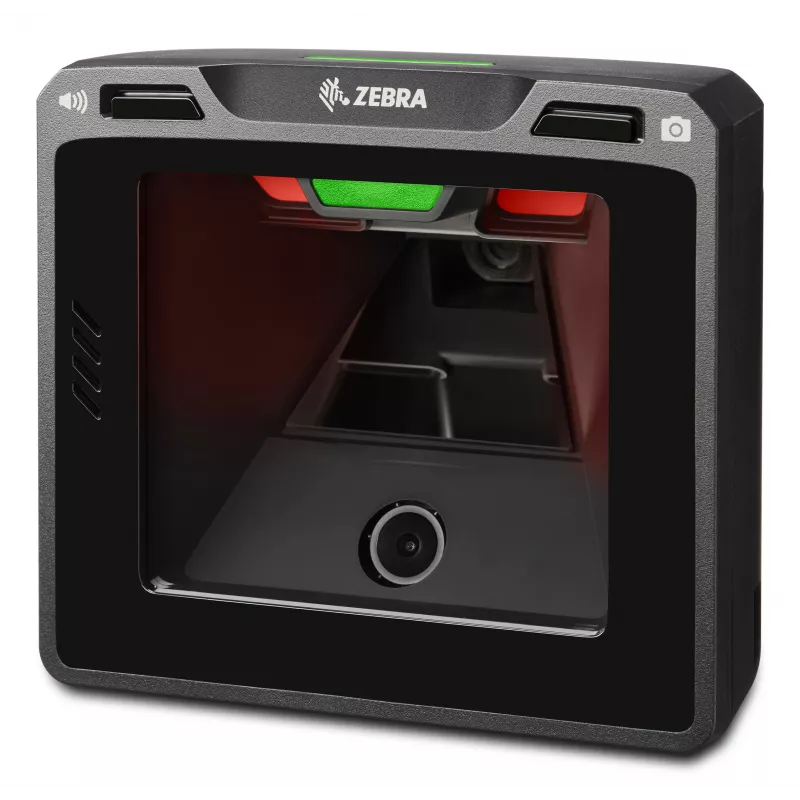

Zebra SP7208-V USB-kit: SP7208-SV00004ZZWW, CBA-U21-S07ZBR

High-volume retail checkout and hospitality environments demand fast, accurate barcode scanning that keeps lines moving. The Zebra SP7208-SV4U2100AZW, featuring the MP7000 vertical imager, delivers omnidirectional 1D and 2D scanning in a compact, countertop-ready design. Simply plug it into a USB port and start scanning—no external power supply needed.

Who is it for

This scanner kit is ideal for retailers, convenience stores, pharmacies, and quick-service restaurants that need a reliable, fixed-mount scanner for high-throughput point-of-sale. It suits businesses upgrading from single-line laser scanners to multi-plane imaging technology without complex installation.

Main features

• Multi-plane imager with omnidirectional scan pattern captures barcodes from any angle, reducing the need to orient items precisely.
• Reads all common 1D, 2D, and PDF417 symbologies, including QR codes from mobile wallets and loyalty apps.
• Megapixel sensor and multi-color LED illumination ensure high first-pass read rates even on damaged or poorly printed codes.
• USB connectivity with included 2.1 m cable provides plug-and-play simplicity and host-powered operation.
• Rugged design withstands multiple 1.2 m drops to concrete and carries an IP52 rating against dust and moisture.
• Compact vertical form factor fits neatly on countertops or can be integrated into existing checkout fixtures.

Specifications

• Scanner type: Multi-plane imager
• Connectivity: Wired USB
• Decoding capability: 1D, 2D, PDF417
• Supported symbologies: UPC/EAN, Code 39, Code 128, QR Code, Data Matrix, Aztec, PDF417
• Imager sensor: Megapixel
• Illumination: Multiple LEDs (red, green, blue)
• Minimum print contrast: 25%
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Drop specification: Withstands multiple 1.2 m (4 ft) drops to concrete
• IP rating: IP52
• Power source: Host power via USB (2.5 A @ 5 VDC)
• Colour: Black
• Mounting: Countertop / in-counter (vertical)
• Cable length: 2.1 m (7 ft)
• Included accessories: MP7000 vertical imager, USB cable (CBA-U21-S07ZBR)

Tips

For best performance, position the scanner at a slight angle to reduce glare from shiny packaging. Clean the scan window regularly with a soft, lint-free cloth to maintain read accuracy. If scanning mobile coupons, ensure the screen brightness is set to maximum.
