ZVK EasyLan LWL Lasbehuizing Basic SB0012571HE 12x LC-Duplex Standard OS2 uitschuifbaar - LWL - LC-Duplex aansluiting

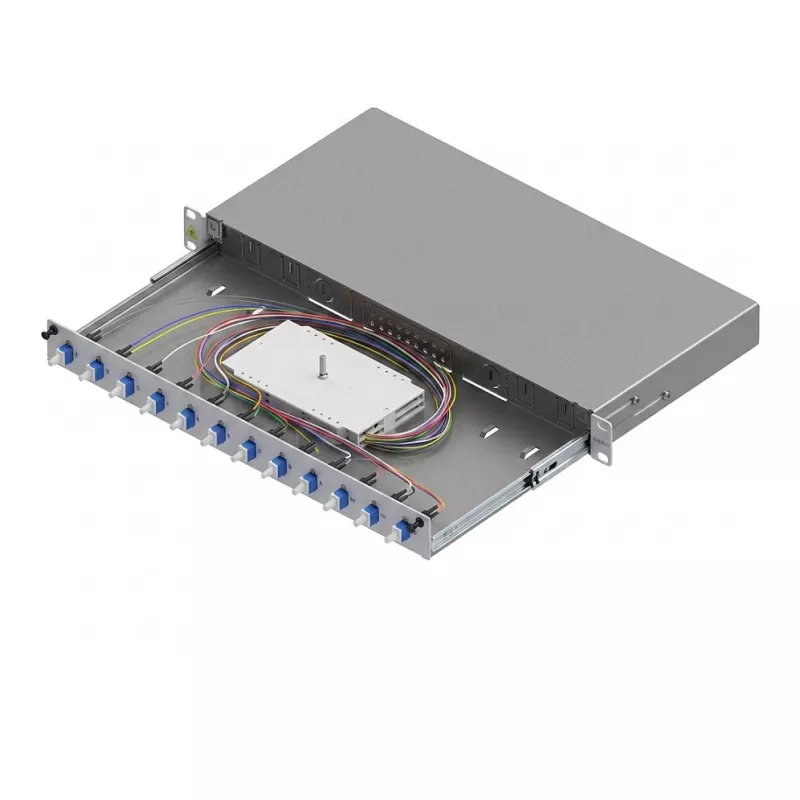

The ZVK EasyLan LWL Splice Housing Basic SB0012571HE is a high-quality 19-inch 1U rack-mount fiber optic splice housing designed for professional network infrastructure. It features 12 LC-Duplex ports (24 fibers) with single-mode OS2 adapters, providing reliable and organized fiber management for data centers, telecommunications, and LAN environments. The slide-out/extractable design allows easy access for splicing and maintenance.

Advantages

Space-saving 1U form factor with 12 LC-Duplex ports; slide-out tray for convenient access; robust steel construction in grey; ceramic adapter sleeves for low insertion loss (<0.2 dB) and high return loss (>50 dB); includes splice tray for secure fiber management.

Suitable for

• Data centers requiring high-density fiber patching
• Telecommunications networks
• LAN infrastructure and structured cabling
• Fiber optic distribution points

Key specifications

• Product Type: Fiber Optic Splice Housing / Patch Panel
• Connector Type: LC-Duplex
• Fiber Type: Single-mode OS2
• Number of LC-Duplex Ports: 12
• Total Fiber Capacity: 24 (12x Duplex)
• Housing Design: Slide-out / Extractable
• Mounting Standard: 19-inch Rack Mount
• Rack Units (RU): 1U
• Material: Steel
• Color: Grey
• Application: Data Centers, Telecommunications, LAN Infrastructure
• Splice Tray Included: Yes
• Cable Entry Points: Multiple rear entries
• Adapter Sleeve Material: Ceramic
• Typical Insertion Loss: < 0.2 dB per connection
• Typical Return Loss: > 50 dB
• Protection Class: IP20
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cable management. Ideal for high-density fiber installations where reliability and ease of access are critical.
