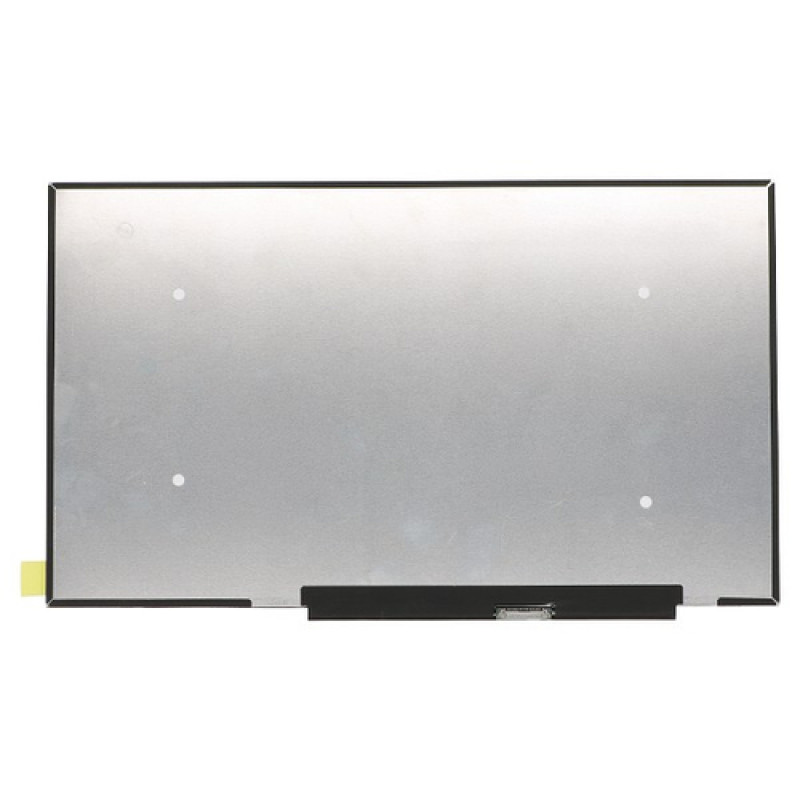

2-POWER 14,0 inch FHD IPS beeldschermmodule (1920x1080, eDP 30-pin, mat) (2P-B140HAN06.B 2A)

When a laptop screen fails, the difference between a quick fix and a lasting repair often comes down to the panel itself. The 2-POWER 2P-B140HAN06.B 2A is a 14.0-inch Full HD IPS display module built around the trusted AUO B140HAN06.B panel, delivering consistent color and wide viewing angles that generic replacements frequently miss. With its 30-pin eDP connector and standard mounting, it drops into a broad range of business and consumer laptops without firmware headaches.

Highlights

• 14.0-inch IPS panel with 1920 x 1080 Full HD resolution for crisp text and sharp images
• Wide 85/85/85/85 degree viewing angles keep the picture stable from almost any position
• Matte anti-glare surface reduces reflections in bright offices or near windows
• 30-pin eDP interface ensures compatibility with many mainstream laptop models
• LED backlight with 250 cd/m² brightness and 45% NTSC color gamut for everyday productivity
• 60 Hz refresh rate and 25 ms response time are ideal for office work, web browsing, and video
• Low power consumption of approximately 3.5W helps preserve battery life

In daily use

This panel is a practical choice for restoring a laptop to full functionality. The IPS technology means you won't lose clarity when sharing your screen with a colleague, and the matte finish keeps glare at bay under fluorescent lights. Whether you are replacing a cracked display, upgrading from a lower-resolution TN panel, or building a portable workstation, the 2P-B140HAN06.B 2A offers a straightforward, reliable solution. Installation is simplified by the standard 30-pin eDP connector, and the panel's slim profile fits most 14-inch chassis designed for slim or standard bezels.

Full specifications

• Brand: 2-POWER
• Model: 2P-B140HAN06.B 2A
• Screen Size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel Type: IPS (In-Plane Switching)
• Aspect Ratio: 16:9
• Backlight Type: LED
• Surface Finish: Matte (Anti-Glare)
• Refresh Rate: 60 Hz
• Connector Type: eDP (Embedded DisplayPort)
• Connector Pins: 30 Pins
• Brightness: 250 cd/m² (nits)
• Color Gamut: 45% NTSC
• Viewing Angle: 85/85/85/85 (Left/Right/Up/Down)
• Response Time: 25 ms
• Technology: TFT Active Matrix
• Power Consumption: Approx. 3.5W
• Compatibility: Universal for laptops requiring 14.0" FHD IPS eDP 30-pin panels

Final note

Built on a proven AUO panel design, the 2-POWER 2P-B140HAN06.B 2A delivers the clarity, color, and reliability you expect from a quality display replacement—without the inflated price of OEM parts.
