2-power 2P-B133HTN01.1 notebook-vervangingsonderdeel beeldscherm

A cracked or dim laptop screen can make work impossible, but replacing it doesn’t have to be complicated. The 2-POWER 2P-B133HTN01.1 is a direct replacement for the AU Optronics B133HTN01.1 panel, delivering crisp Full HD visuals in a 13.3-inch form factor. This panel-only unit (no bezel or frame) is ready to bring your notebook back to life.

Who is it for

This display is ideal for technicians, IT departments, and DIY users who need a reliable, cost-effective screen replacement for compatible laptops. It suits those who prefer a matte finish to reduce glare in bright environments and require a standard 30-pin eDP connection.

Main features

• 13.3-inch TN panel with Full HD 1920 x 1080 resolution for sharp text and images.
• Matte (anti-glare) surface minimizes reflections, improving visibility in offices or outdoors.
• WLED backlight offers consistent brightness at 220 cd/m² and a 400:1 contrast ratio.

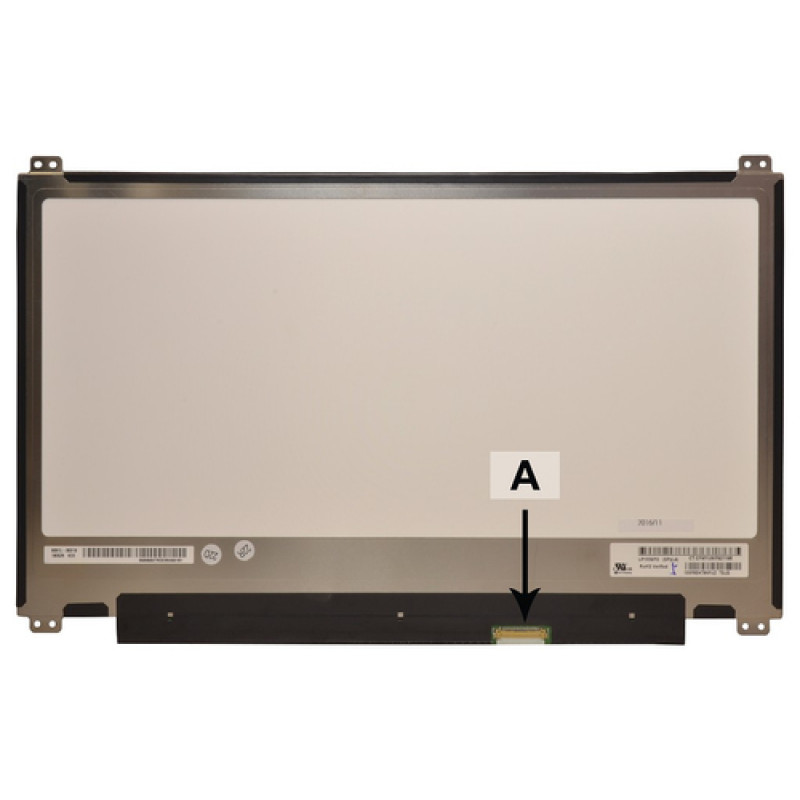

• 30-pin eDP connector positioned bottom-right (viewed from back) for straightforward installation.
• 60 Hz refresh rate and 16 ms response time handle everyday productivity and video playback.
• Panel only – no frame or bezel – allowing reuse of existing housing.

Specifications

• Screen size: 13.3 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TN (Twisted Nematic)
• Surface finish: Matte (Anti-Glare)
• Backlight type: WLED
• Data connector: 30-pin eDP
• Connector position: Bottom right (when viewed from the back)
• Aspect ratio: 16:9
• Brightness: 220 cd/m²
• Contrast ratio: 400:1
• Color gamut: 45% NTSC
• Refresh rate: 60 Hz
• Response time: 16 ms
• Viewing angle (H/V): 90° / 50°
• Touchscreen: No
• Frame/bezel included: No (panel only)
• Original panel model: AU Optronics B133HTN01.1

Tips

Before ordering, verify your laptop’s original panel model and connector type. Handle the panel by its edges to avoid damage, and test before final assembly. A matte screen protector can further reduce fingerprints if desired.
