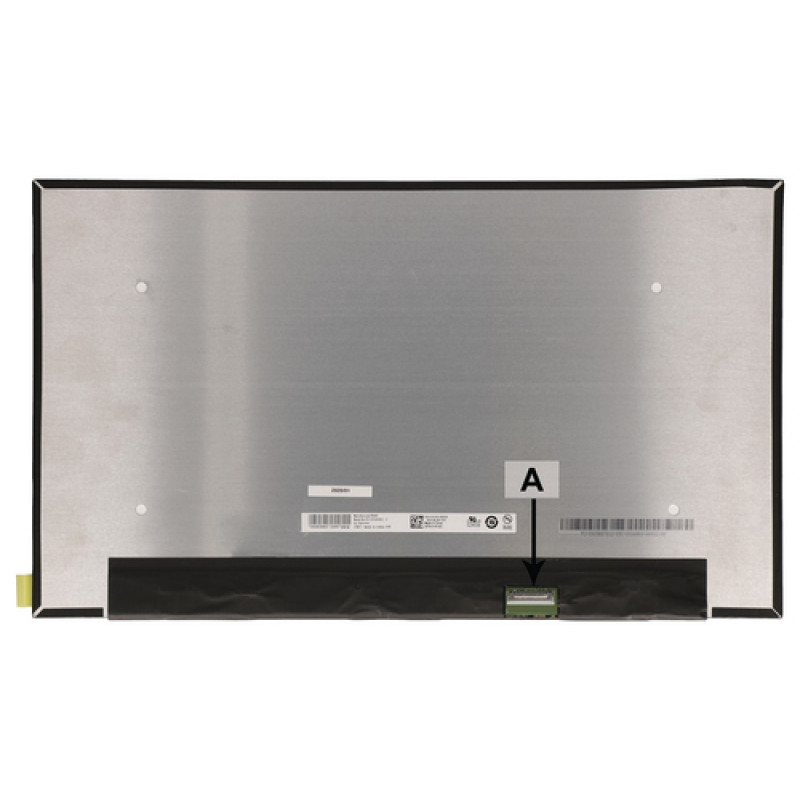

2-power 2P-B156HAN02.6 - 39,6 cm (15,6 inch) - Full HD

A cracked or dim laptop display can make your device nearly unusable, but replacing it doesn’t have to be complicated. The 2-POWER 2P-B156HAN02.6 is a direct replacement panel built around the trusted AU Optronics B156HAN02.6 specification, delivering sharp Full HD visuals with accurate colour and wide viewing angles. It’s a practical way to restore a laptop to like-new condition without buying a whole new machine.

Who is it for

This panel suits technicians, IT departments, and DIY upgraders who need a reliable 15.6-inch screen for compatible laptops. If your original panel is an AUO B156HAN02.6 or an equivalent 30-pin eDP Full HD IPS display, this unit drops in with minimal fuss. It’s also a solid choice for anyone repairing a fleet of business notebooks where consistent image quality matters.

Main features

• 15.6-inch (39.6 cm) IPS panel with Full HD 1920 x 1080 resolution for crisp text and images.
• Wide 85/85/85/85 viewing angles keep colours stable from almost any position.
• Matte anti-glare surface reduces reflections, making it easier to work under office lights or near windows.
• WLED backlight with 300 cd/m² typical brightness provides clear visibility in normal indoor environments.
• 30-pin eDP (2-lane) connector matches the standard interface on many modern laptops.
• 60 Hz refresh rate and 25 ms response time are ideal for productivity, web browsing, and video playback.
• 72% NTSC colour gamut (approximately 100% sRGB) delivers vibrant, accurate colours for design and media tasks.
• Hard coating 3H adds a layer of scratch resistance for everyday handling.

Specifications

• Brand: 2-POWER
• Model: 2P-B156HAN02.6
• Panel size: 15.6 inches (39.6 cm)
• Resolution: Full HD (1920 x 1080)
• Panel type: IPS (AHVA)
• Surface finish: Matte (anti-glare)
• Backlight: WLED
• Connector: 30-pin eDP (2 lanes)
• Refresh rate: 60 Hz
• Aspect ratio: 16:9
• Brightness: 300 cd/m² (typical)
• Contrast ratio: 700:1 (typical)
• Viewing angles: 85° left/right, 85° up/down
• Response time: 25 ms (typical)
• Colour gamut: 72% NTSC (approx. 100% sRGB)
• Panel manufacturer: AU Optronics (AUO)
• Panel model: B156HAN02.6
• Hard coating: 3H
• Condition: New

Tips

Before ordering, confirm your laptop’s exact panel model and connector type. The 30-pin eDP interface is common but not universal, so check the service manual or existing panel label. Handle the new screen by its edges and avoid touching the surface to prevent smudges or damage. For best results, use a clean, static-free workspace and test the panel before fully reassembling the laptop.
