2-power 2P-B156XW02 - beeldscherm - 39,6 cm (15,6) - WXGA

The 2P-B156XW02 stands out among 15.6-inch replacement panels by combining a true WXGA resolution with a glossy surface and a slim eDP interface, making it a straightforward upgrade for systems that originally shipped with TN technology. Unlike generic panels with uncertain backlight behaviour, this unit uses a stable LED source and a 30-pin embedded DisplayPort connector for reliable signal integrity.

Highlights

• Native 1366 x 768 (WXGA) resolution with 16:9 aspect ratio
• Glossy TN panel with LED backlight for bright, clear images

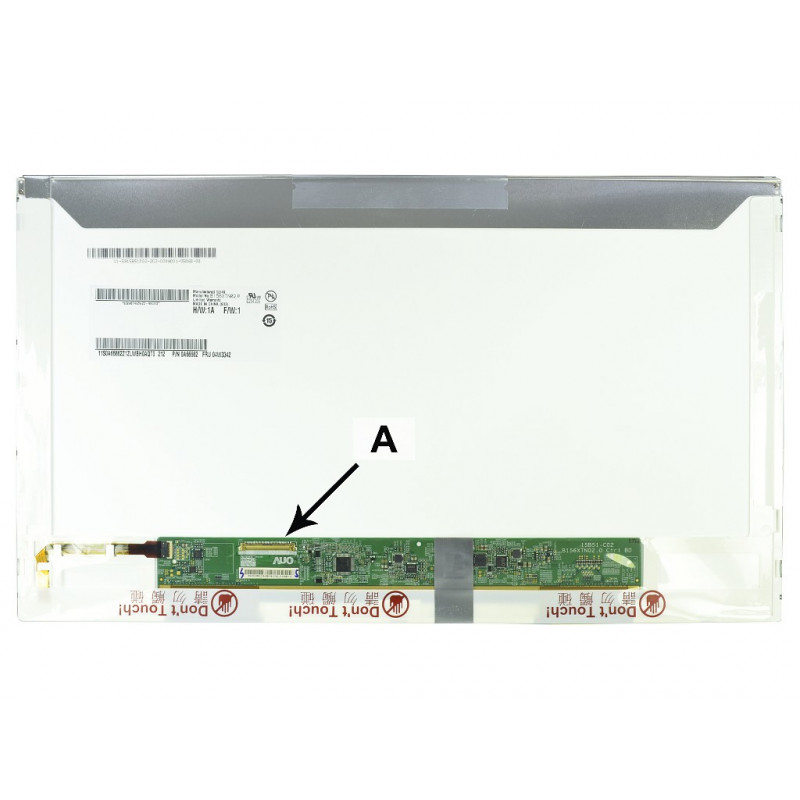

• eDP 30-pin connector – compatible with many mainstream laptops
• 220 cd/m² brightness and 400:1 contrast ratio
• Fast 8 ms response time reduces motion blur
• Side bracket mounting for easy installation

In daily use

Whether you are repairing a notebook for a customer or refreshing your own device, this panel delivers consistent colour and sharp text. The 60 Hz refresh rate keeps everyday tasks smooth, while the 45% NTSC colour gamut handles documents, web browsing, and video playback without oversaturation. Viewing angles of 45/45/20/40 degrees are typical for TN panels, so it is best used directly in front of the screen.

Full specifications

• Brand: 2-POWER
• Model: 2P-B156XW02
• MPN: 2P-B156XW02
• Display diagonal: 39.6 cm (15.6")
• Display resolution: 1366 x 768 pixels (WXGA)
• HD type: WXGA
• Panel type: TN
• Backlight type: LED
• Surface finish: Glossy
• Connector type: eDP
• Connector pins: 30
• Refresh rate: 60 Hz
• Response time: 8 ms
• Brightness: 220 cd/m²
• Contrast ratio (typical): 400:1
• Viewing angle, horizontal: 45° (left) / 45° (right)
• Viewing angle, vertical: 20° (up) / 40° (down)
• Colour gamut: 45% NTSC
• Pixel density: ~100 PPI
• Mounting type: Side brackets
• Condition: New
• Compatibility: Universal 15.6" WXGA eDP 30-pin laptop replacement

Final note

For technicians and DIY upgraders, the 2P-B156XW02 offers a dependable, no-frills display solution with the exact connector and resolution needed for a wide range of laptops. Its glossy finish and LED backlight bring a modern feel to older systems without compatibility guesswork.
