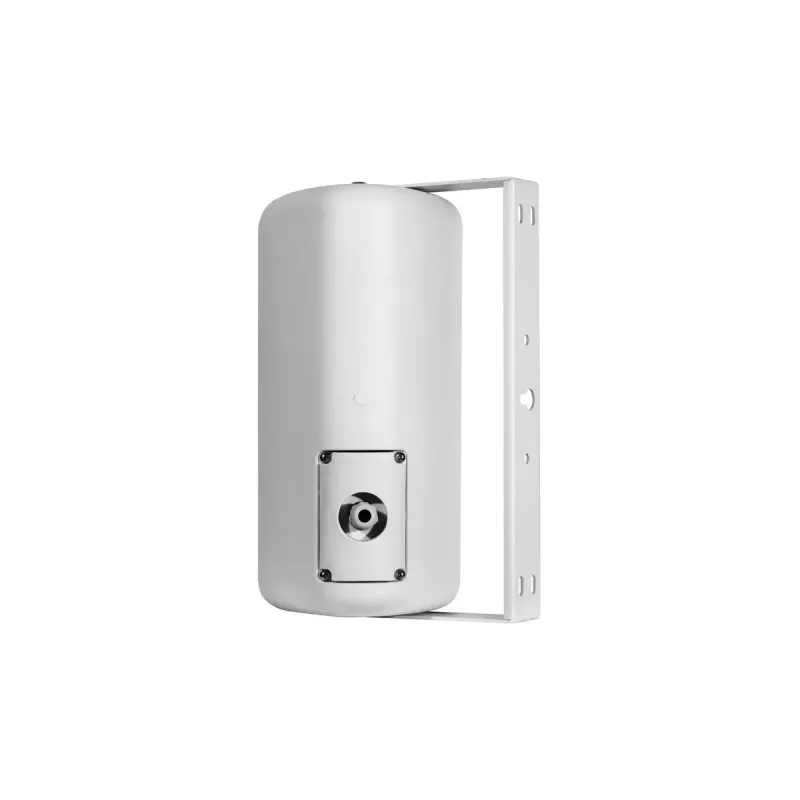

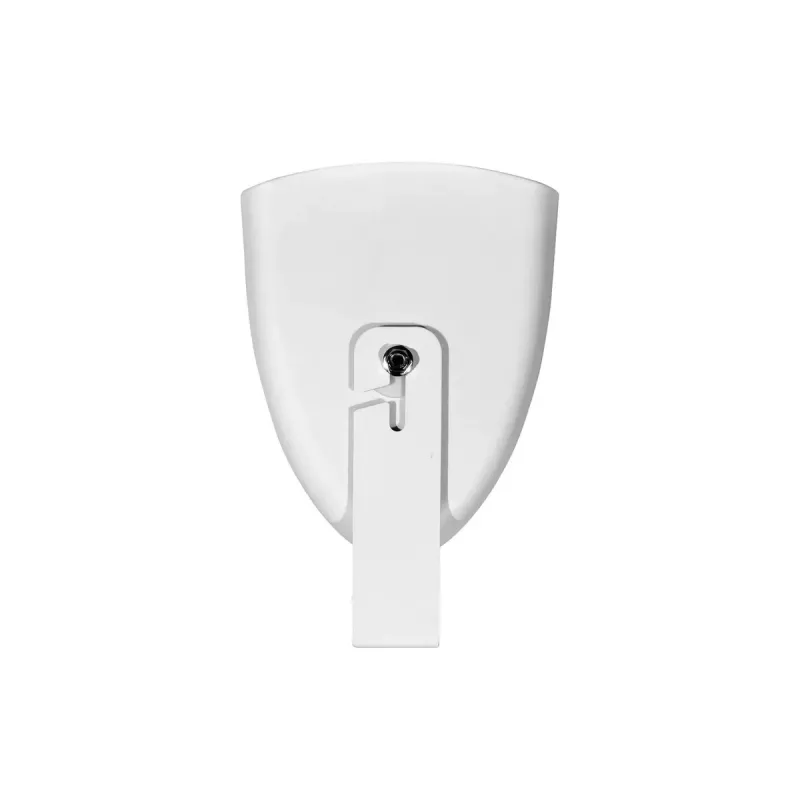

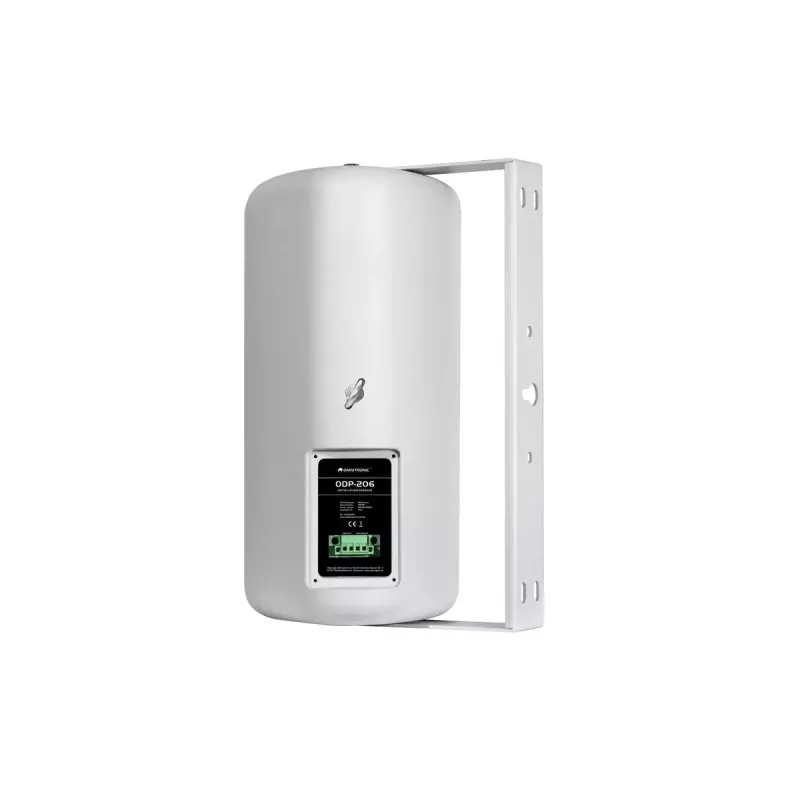

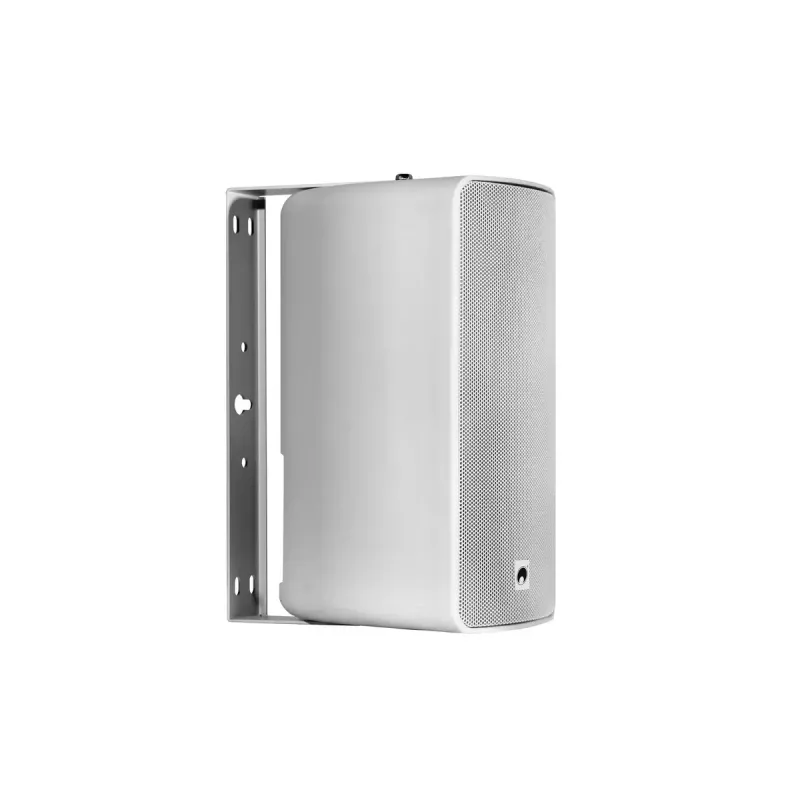

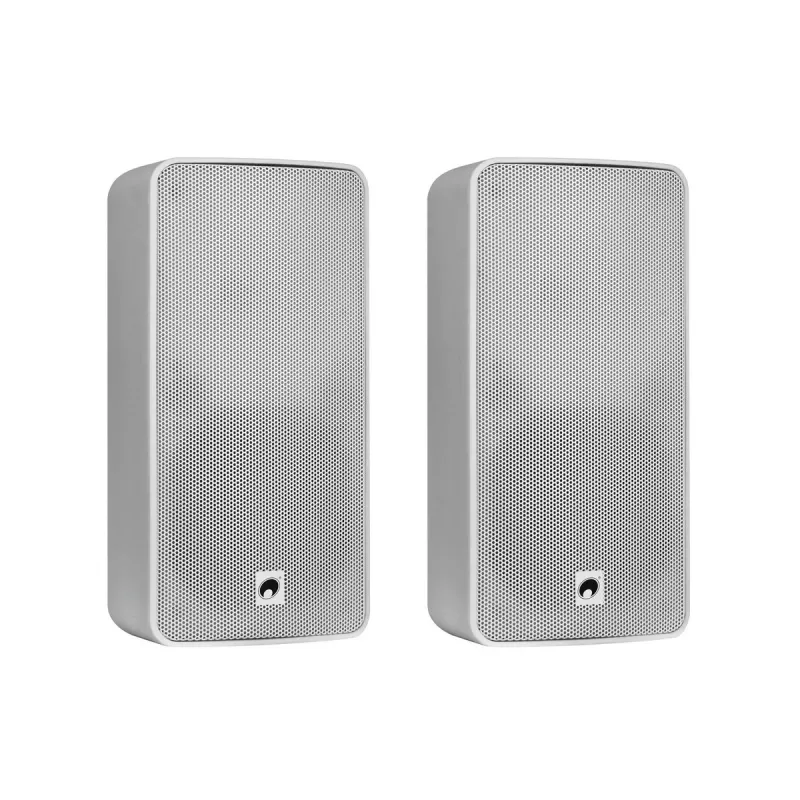

2-weg luidspreker Omnitronic 11036955 80 W

The Omnitronic 11036955 is a 2-way loudspeaker designed for installation in commercial and hospitality environments. It offers 80 W RMS power, a frequency response of 60–18,000 Hz and 16 Ω impedance for direct low‑ohm wiring. The speaker is available in both low‑ohm (16 Ω) and 100 V versions and features a weatherproof (IP54) plastic enclosure suitable for indoor and outdoor placement. A rotatable mounting bracket is included; an optional swivel wall mount in matching colours is available.

Advantages

The loudspeaker provides balanced, clear sound with 89 dB sensitivity for reliable voice and music reproduction. Its IP54‑rated housing protects against dust and splashing water, making it suitable for outdoor terraces as well as indoor spaces. The included rotatable bracket simplifies aiming during installation, and the availability of a 100 V version allows use in larger distributed audio systems.

Suitable for

Key specifications

How to use

Mount the speaker using the supplied rotatable bracket and aim it toward the listening area. Connect to a suitable amplifier or 100 V line transformer according to the chosen version (16 Ω direct wiring for the low‑ohm model, or the 100 V tapping for distributed systems). Adjust amplifier output and tone controls to achieve the desired balance between voice clarity and background music. For outdoor installations, place the speaker under cover when possible to extend service life despite the IP54 protection.

Recommendations

For distributed installations or long cable runs choose the 100 V version; for a single amplifier-driven speaker system select the 16 Ω model. Verify amplifier power ratings and use appropriate speaker tap settings to avoid overloading. Regularly inspect mounting hardware and wiring for secure connections.
