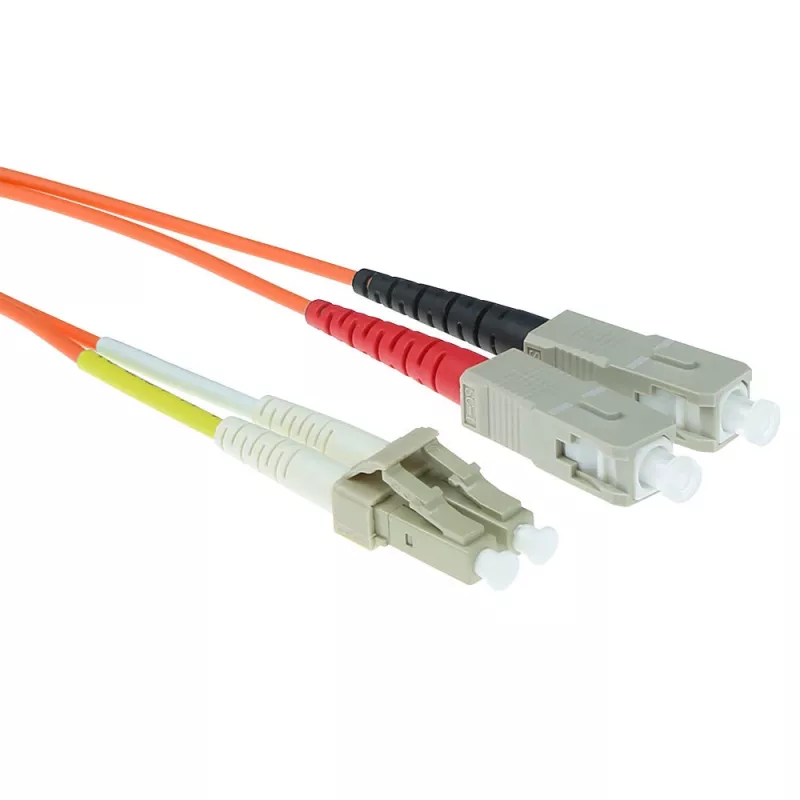

ACT 10 meter LSZH Multimode 62,5/125 OM1 glasvezel-patchkabel duplex met LC- en SC-stekkers

The ACT 10 meter LSZH Multimode 62.5/125 OM1 fiber patch cable duplex with LC and SC connectors is a 10 m multimode fiber patch cord with OM1 62.5/125 µm fiber in a duplex configuration, terminated with LC and SC connectors. The cable jacket is LSZH (Low Smoke Zero Halogen), reducing harmful emissions in case of fire and making it suitable for use in enclosed or densely populated installations such as data centers and telecom rooms.

Advantages

This multimode cable provides a standardized OM1 62.5/125 fiber core for short-distance multimode connections and is supplied in a duplex design for duplex data links. LC and SC connectors allow compatibility with a variety of transceivers and patch panels. The LSZH jacket improves safety by emitting less smoke and no halogenated gases when exposed to high temperatures.

Suitable for

• Connecting network devices in data centers and server rooms
• Telecommunications patching and cross-connects
• Short-range multimode links within buildings

Key specifications

• Length: 10 m
• Fiber type: Multimode OM1 (62.5/125 µm)
• Configuration: Duplex
• Connectors: LC — SC
• Jacket: LSZH (Low Smoke Zero Halogen)
• Brand: ACT
• MPN: RL8010
• EAN: 8716065224412

How to use

Route the duplex fiber patch cable between the required LC and SC ports, making sure connectors are clean before insertion. Align and insert the LC connector into the LC port and the SC connector into the SC port until secure. Use appropriate cable management to avoid tight bends and strain on the fiber; maintain the specified minimum bend radius to preserve performance.

Recommendations

Inspect connector endfaces with a fiber inspection tool and clean as needed before installation. Avoid excessive bending, pulling, or crushing of the cable, and install in environments appropriate for LSZH-jacketed cables.
