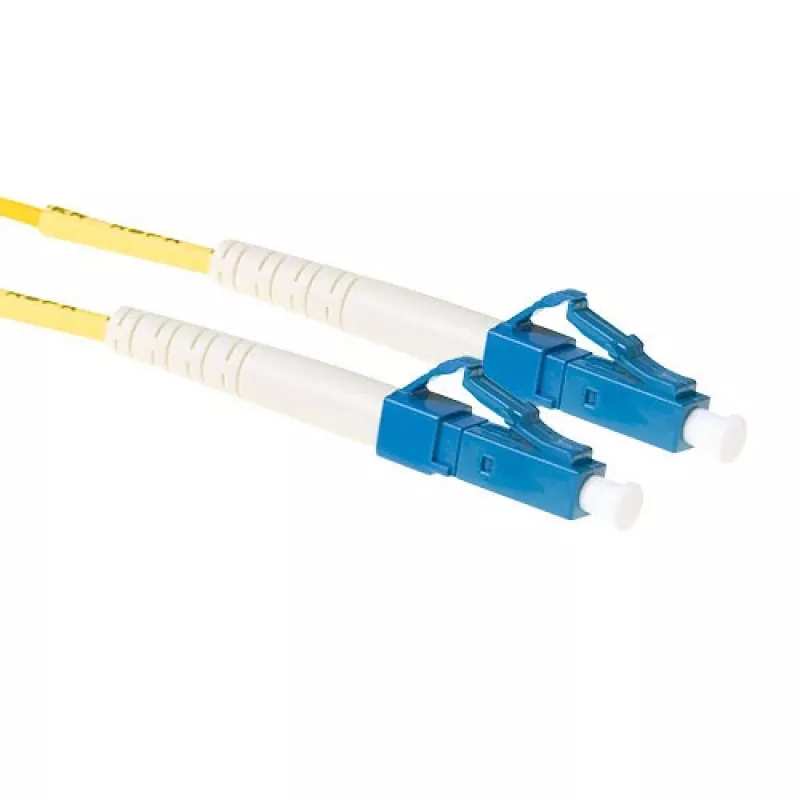

ACT 2 meter LSZH singlemode 9/125 OS2 glasvezel-patchkabel simplex met LC-stekkers

ACT OS2 Fiber Patch Cable 2m LSZH Singlemode 9/125 with LC Connectors is a pre-terminated singlemode fiber patch lead designed for long-distance data links and telecom installations. The cable uses a 9/125 µm OS2 singlemode fiber with LSZH jacket for reduced smoke and no halogen emissions in case of fire. High-quality LC connectors with UPC polish and Grade A fiber provide stable optical performance for network and telecommunication applications.

Advantages

Each cable is supplied with an individual test report showing insertion loss (IL) and return loss (RL) measurements, and all connector end-faces are 100% inspected to ensure polishing and cleanliness. Laser-precision cleaving and UPC polish on the LC termini contribute to low connector loss and consistent mating performance. The LSZH jacket improves safety in enclosed spaces and public buildings.

Suitable for

• Backbone and campus long-distance links
• Telecommunications and carrier networks
• Data centers and network cabinets
• Fiber distribution panels and patch panels

Key specifications

• Type: Singlemode OS2 fiber
• Core/cladding: 9/125 µm
• Length: 2 m
• Connectors: LC — LC, UPC polish
• Jacket: LSZH (Low Smoke Zero Halogen)
• Quality: Grade A fiber; laser precision cleaving; 100% end-face inspection

How to use

Inspect connector end-faces before connecting and clean if necessary using approved fiber cleaning tools. Plug the LC connectors into the corresponding adapter or transceiver until a secure latch is felt. Avoid sharp bends and maintain the cable bend radius recommended for 9/125 fiber to prevent increased attenuation. Store and handle the cable to prevent contamination of connectors and physical damage.

Recommendations

For best results, use the supplied test report to verify insertion loss and return loss after installation; perform end-to-end testing in the live network and follow site safety rules for LSZH cabling in public or enclosed spaces.
