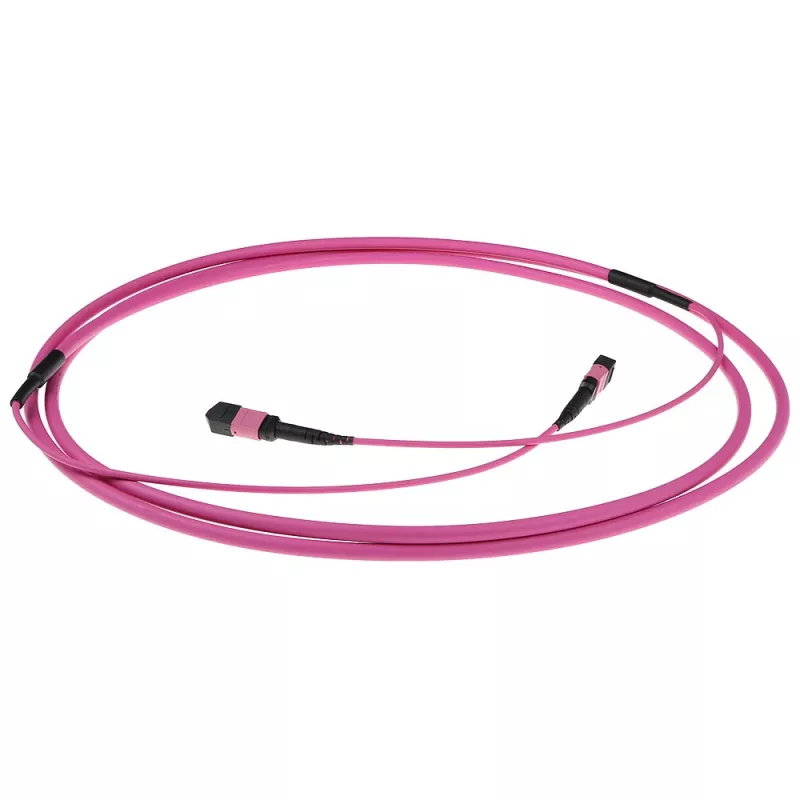

ACT 25 meter multimode 50/125 OM4(OM3) polariteit A glasvezel trunkkabel met MTP/MPO bussen

The ACT 25m Multimode 50/125 OM4(OM3) Fiber Trunk Cable with MTP/MPO female connectors is a 12-fiber, 6.5 mm trunk cable designed for high-density datacenter environments and backbone links. It uses OM4 multimode fibre that is backward compatible with OM3 and is intended for use with QSFP transceivers or as part of high-speed network infrastructure. The cable features an MTP US Conec connector at each end to ensure low insertion loss and improved mechanical performance.

Advantages

Ultra-compact design combines 12 fibers in a single 6.5 mm trunk for reduced space usage in racks and ducts. MTP US Conec connectors provide low loss and consistent optical performance with better mechanical durability. OM4 fibre supports higher bandwidth and longer multimode links while remaining compatible with OM3 equipment. Polarity A wiring simplifies integration in systems that require that configuration.

Suitable for

• Datacenter backbone and high-density patching
• Connections to QSFP transceivers and high-speed modules
• Multimode network infrastructure requiring OM4/OM3 compatibility

Key specifications

• Length: 25 m
• Fiber type: Multimode 50/125 µm OM4 (backwards compatible with OM3)
• Fiber count: 12 fibers
• Cable diameter: 6.5 mm

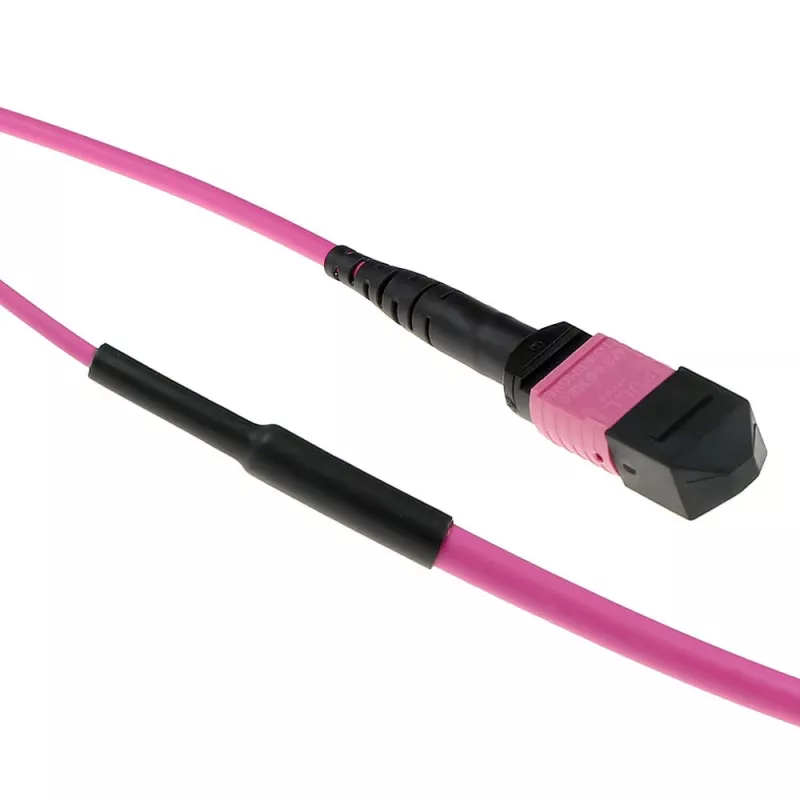

• Connector type: MTP/MPO female (MTP US Conec)
• Polarity: A
• Brand/Model: ACT, MPN DC5000
• EAN: 8716065420692

How to use

Route the trunk cable through racks or containment systems, avoiding sharp bends and excessive tensile stress. Terminate each end into compatible MTP/MPO adapters or cassette panels and connect to QSFP transceivers or patch panels following the Polarity A wiring scheme. Ensure connectors are clean before mating and secure cable to prevent strain on the connector interfaces.

Recommendations

Inspect and clean MTP connectors with appropriate fibre cleaning tools before installation, maintain minimum bend radius according to manufacturer guidance, and use compatible MPO/MTP adapters or cassettes to preserve low loss and mechanical integrity.
