ACT 3 meter LSZH multimode 50/125 OM2 glasvezel-patchkabel duplex met SC-stekkers

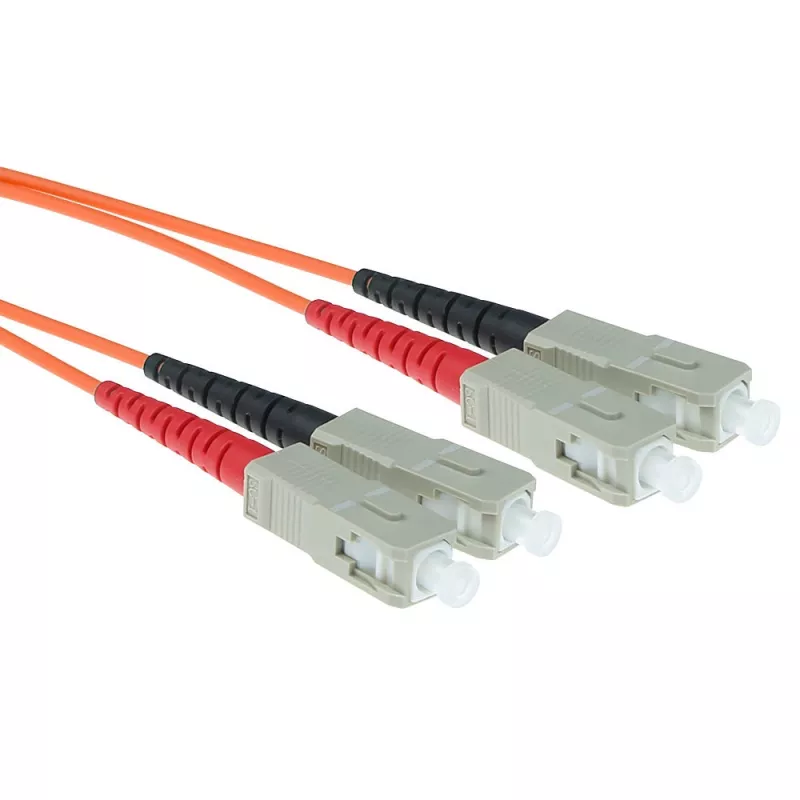

Fiber patch cable duplex SC connectors ACT 3 meter LSZH Multimode 50/125 OM2 is a duplex multimode fiber patch cable with SC–SC connectors and a 3.00 m length. The cable uses 50/125 µm OM2 multimode cores and an LSZH outer sheathing that reduces smoke and halogen emissions in case of fire. Its duplex design supports simultaneous transmission and reception for network links requiring two fiber strands.

Advantages

The cable provides reliable optical connectivity with standardized SC connectors and multimode OM2 cores for short- to medium-range data links. The LSZH jacket improves safety in enclosed environments by limiting harmful fumes, while the PVC-sheathed option in the source data indicates durable outer protection. The 3 m length and duplex configuration simplify patching between equipment in racks, patch panels, or wall outlets.

Suitable for

• Data centres and server rooms for short- to medium-range multimode connections
• Patch panels and network equipment interconnects
• Office LAN and telecom cabinets

Key specifications

• Connectors: SC – SC
• Fiber type: Multimode 50/125 µm OM2
• Configuration: Duplex
• Length: 3.00 m
• Outer sheath: LSZH (source data also lists PVC)
• Cable diameter: 2 x 3 mm
• Colour: Orange
• Brand: ACT, MPN: RL3503, EAN: 8716065223835

How to use

Route the duplex fiber patch cable between SC ports on transceivers, patch panels, or network devices. Align and insert SC connectors until the latch clicks to ensure secure connection. Maintain minimum bend radius as recommended by the equipment manufacturer and avoid excessive tension on the cable to preserve optical performance.

Recommendations

For best results, store and install the cable in clean conditions, avoid sharp bends or crushing, and verify link performance with appropriate light source and power meter or optical transceiver diagnostics after installation.
