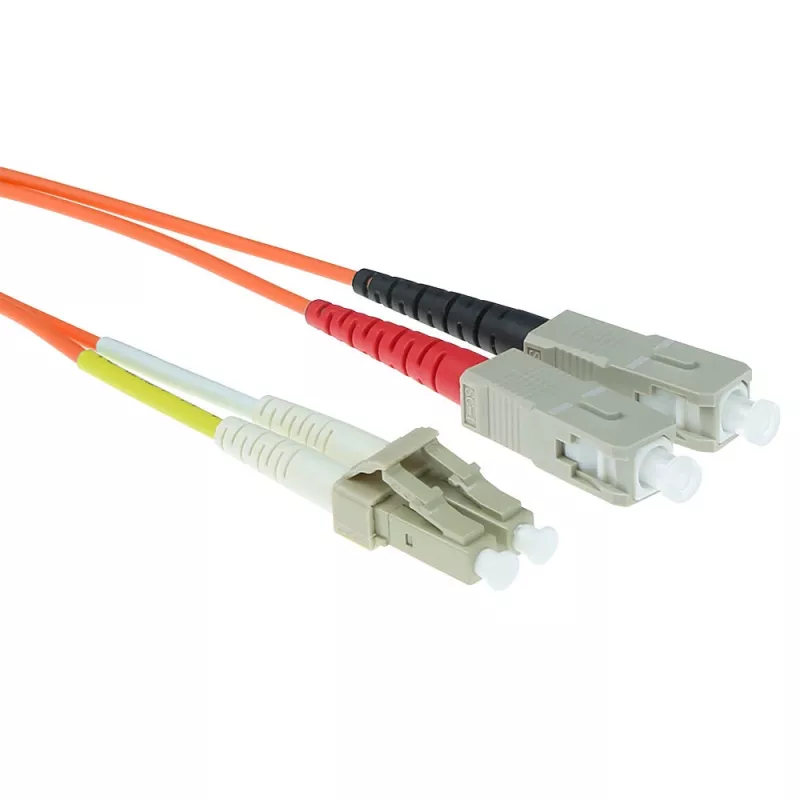

ACT 5 m LSZH multimode 62.5/125 OM1 glasvezel-patchkabel duplex met LC- en SC-stekkers

Fiber patch cable duplex ACT 5 meter LSZH Multimode 62.5/125 OM1 with LC-SC connectors, designed for multimode optical networking. The 5 m duplex cable uses 62.5/125 OM1 fibers and complies with LSZH requirements for reduced smoke and halogen-free materials, providing a compact solution for short-range data transmission and typical LAN connections.

Advantages

This ACT multimode fiber patch cable offers duplex LC to SC connectivity for straightforward termination between devices with different connector types. The OM1 62.5/125 fiber supports legacy multimode links and short-distance high-speed data transmission, while the LSZH jacket reduces smoke and hazardous gases in case of fire, making it suitable for indoor installations where safety standards are a concern.

Suitable for

• Local area networks (LAN) and campus networking
• Patch panels and equipment interconnects
• Short-range multimode links and legacy multimode systems
• Indoor installations requiring low-smoke, halogen-free cabling

Key specifications

• Brand: ACT
• MPN: RL8005
• EAN: 8716065171068
• Length: 5 meter
• Connector types: LC (one end) to SC (other end), duplex
• Fiber type: Multimode OM1, 62.5/125 µm
• Jacket: LSZH (Low Smoke Zero Halogen)

How to use

Install the ACT 5 m duplex fiber patch cable by connecting the LC connector to the LC port on your device or patch panel and the SC connector to the corresponding SC port. Ensure connectors are clean before mating to prevent signal loss. Route the cable following standard bend radius recommendations for multimode fiber and secure it to avoid excessive strain. Verify link integrity using appropriate testing equipment after installation.

Recommendations

Use this 5 m OM1 LSZH duplex patch cable for short-distance indoor multimode links and when low-smoke, halogen-free cabling is required. Avoid sharp bends, excessive pulling force, and exposure to moisture or chemicals. Clean connectors with suitable fiber cleaning tools before connecting.
