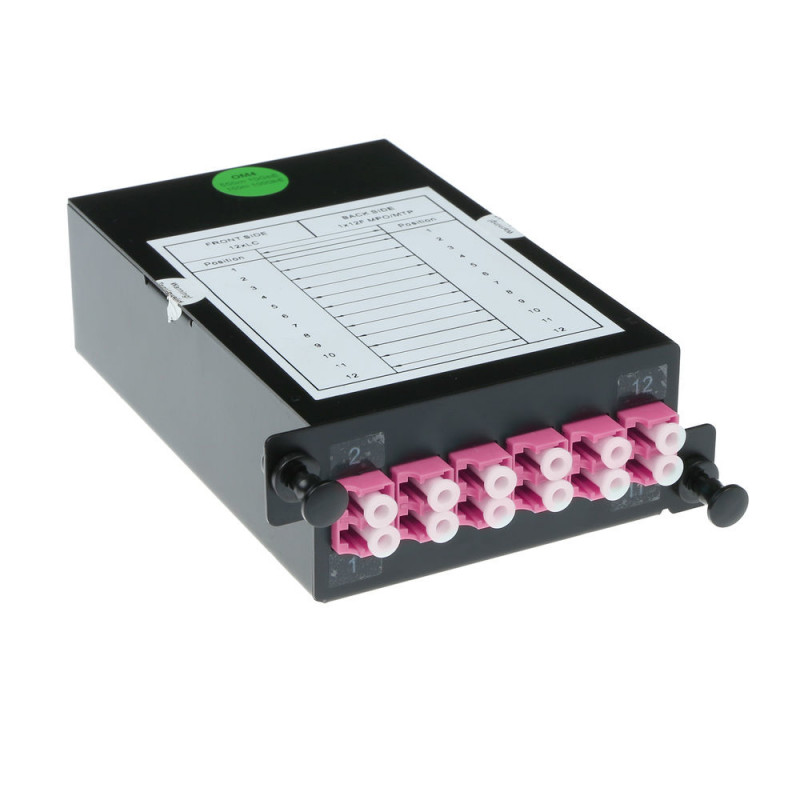

ACT FA2054 Fanout-cassette 12 vezels MTP/MPO naar LC Duplex Low Loss OM4, LGX-compatibel, zwart

The ACT FA2054 fanout cassette converts a single 12-fiber MTP/MPO female connector into six LC duplex ports, enabling high-density OM4 multimode connectivity in LGX-compatible panels. Its low-loss design and Type B polarity make it a reliable choice for data center and SAN environments where space and performance are critical.

Highlights

• OM4 multimode fiber, 50/125 µm core/cladding
• 12 fibers: 1x MTP/MPO female input to 6x LC duplex output
• Low insertion loss: ≤ 0.35 dB per channel
• Type B polarity
• LGX-compatible cassette with cold-rolled steel housing
• LSZH internal cable jacket
• Operating temperature: -10°C to +60°C

In daily use

Install the cassette into any LGX-compatible enclosure or panel. Connect a 12-fiber MTP/MPO trunk cable to the rear MTP/MPO adapter, then use standard LC duplex patch cords at the front for equipment connections. The low insertion loss ensures minimal signal degradation across the link.

Full specifications

• Fiber type: OM4 multimode
• Fiber count: 12
• Input connector: 1x MTP/MPO female (12-fiber)
• Output connector: 6x LC duplex
• Polarity: Type B
• Insertion loss (max): ≤ 0.35 dB per channel
• Return loss (min): ≥ 30 dB
• Form factor: LGX compatible
• Housing material: cold-rolled steel
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Fiber core/cladding: 50/125 µm
• Internal cable jacket: LSZH
• Colour: black
• Compliance: TIA/EIA-568.3-D, IEC 61754-7, IEC 61754-20, RoHS

Final note

For high-density fiber management, the FA2054 provides a clean, low-loss transition from MTP/MPO trunk cables to LC duplex equipment connections.
