Patchpaneel-accessoire BTR NETCOM 130922-00-E

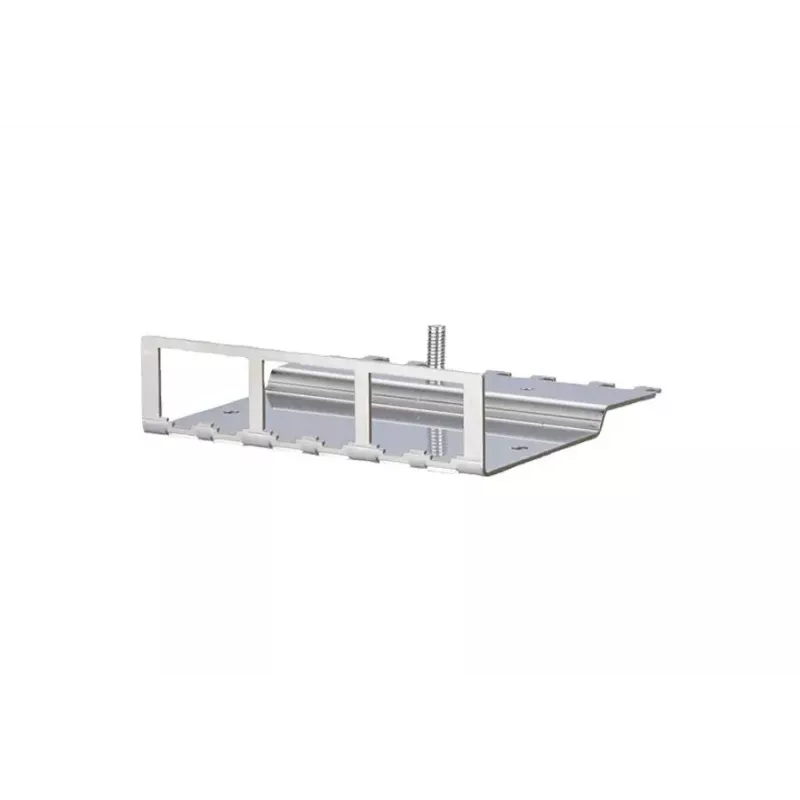

The BTR NETCOM 130922-00-E is a stainless steel module frame designed to hold up to six individual modules in Modul design. It fits into a 1RU module frame, can be mounted in a surface-mounted housing or attached using a top hat rail adapter, and includes a grounding bolt (M6 x 10) with nut and lock washer. The construction uses corrosion-resistant stainless steel for long-term durability and stable mechanical support for network cabling and connectors.

Advantages

The module frame is made of durable stainless steel, offering corrosion resistance and reliable mechanical stability. It supports different mounting options — surface-mounted housing, top hat rail adapter or a standard 1RU module frame — which allows flexible installation in rack or enclosure environments. An optional strain relief using cable ties is provided for improved cable management, and a grounding bolt with nut and lock washer is included to ensure proper earthing.

Suitable for

• Mounting up to six Modul-design modules in 1RU space
• Integration into surface-mounted housings
• Installation on top hat (DIN) rails using an adapter
• Organising network patching and fibre/copper connector panels

Key specifications

• Brand: BTR
• MPN: 130922-00-E
• EAN: 4250184106173
• Material: stainless steel
• Capacity: 6 individual Modul-design modules
• Mounting: 1RU module frame, surface-mounted housing, top hat rail adapter
• Grounding: M6 x 10 grounding bolt with nut and lock washer included
• Strain relief: optional using cable ties

How to use

Place the module frame into the intended 1RU module frame, surface-mounted housing or secure it to a top hat rail using the appropriate adapter. Install each Modul-design module into the frame's six positions and fasten according to the module manufacturer's instructions. Use cable ties through the provided openings for optional strain relief and attach the grounding bolt (M6 x 10) with its nut and lock washer to the designated grounding point to ensure earthing.

Recommendations

For safe and reliable operation, install the frame in accordance with local electrical and cabling standards. Ensure the grounding bolt is properly torqued and that cable ties are positioned to avoid undue stress on connectors or cables. Select compatible Modul-design modules to match the frame's mounting dimensions.
