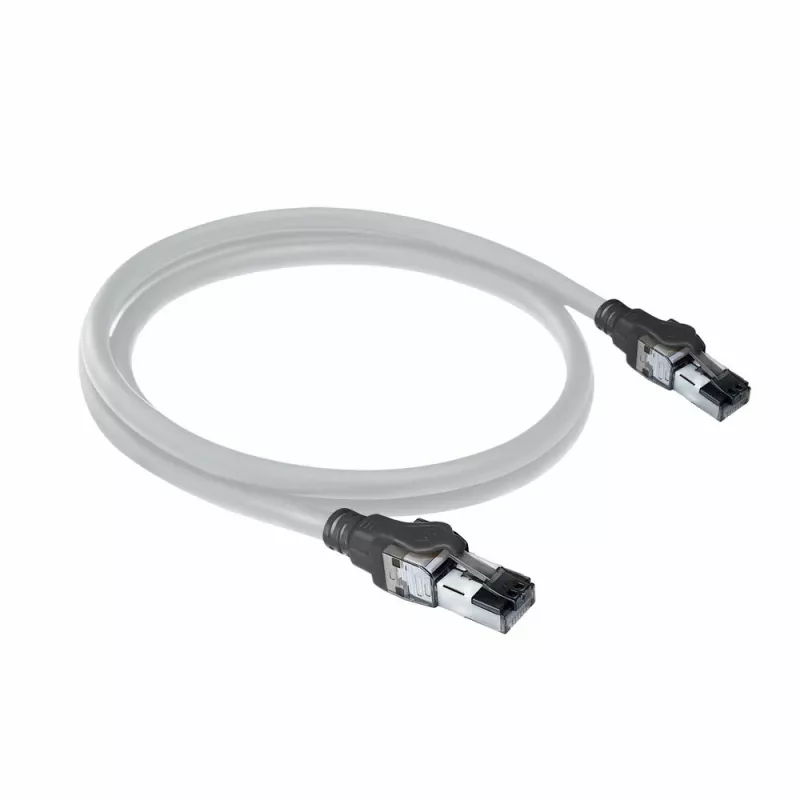

ACT grijs 3 meter S/FTP CAT6A IDC 4PPoE / PoE++ 100W LSZH patchkabel rastnasenfrei met RJ45-stekkers

The ACT Grey 3m S/FTP CAT6A patch cable with RJ45 connectors is designed for high-power PoE applications and safe installation in plenum spaces and raised floors thanks to its LSZH (Low Smoke Zero Halogen) jacket. It supports 4PPoE / PoE++ up to 100W and is intended for use between PoE network switches and powered devices such as security cameras or access points. The cable uses full copper 24AWG conductors and 50 µin gold-plated RJ45 contacts attached via Insulation Displacement Contact (IDC) technique and conforms to ANSI/TIA-568.2-D.

Advantages

The cable combines S/FTP shielding and a Cat6a design to provide reliable high-speed data transfer while supporting PoE++ 100W power delivery. IDC-mounted gold-plated contacts offer lower electrical resistance and increased contact stability compared with insulation-piercing variants, which improves longevity and performance in 4PPoE 100W environments. The LSZH jacket reduces toxic smoke and halogen release in case of fire, making the cable suitable for plenum and raised-floor installations.

Suitable for

• Connecting PoE++ (4PPoE) switches to security cameras
• Powering and networking wireless access points via a single cable
• High-power PoE deployments in plenum spaces and raised floors

Key specifications

• Standard: ANSI/TIA-568.2-D, Cat6a
• Length: 3 m
• Conductor: solid copper, 24 AWG
• Shielding: S/FTP

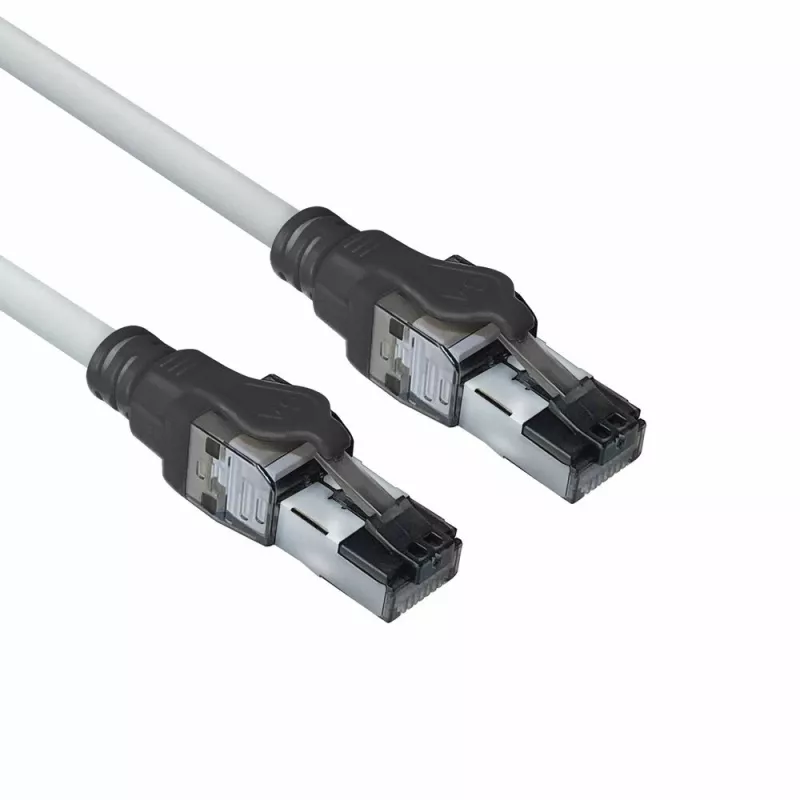

• Connector: RJ45 with IDC termination, 50 µin gold-plated contacts
• PoE support: 4PPoE / PoE++ up to 100 W
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Black, Grey

How to use

Plug the RJ45 connectors into the corresponding Ethernet ports on the PoE switch and the powered device. Ensure connectors are fully seated to maintain the IDC contact integrity. Route the cable according to building codes for LSZH-rated cabling and avoid sharp bends or excessive tension that could damage the conductor or shielding. Verify network link and power delivery after installation.

Recommendations

Use this Cat6a S/FTP cable for installations where 100W PoE delivery and low smoke/low halogen properties are required; pair with compatible 4PPoE-capable switches and devices and follow local cabling and fire-safety regulations.
