ACT high density D-Sub-adapter 15-polig stekker naar 15-polig bus

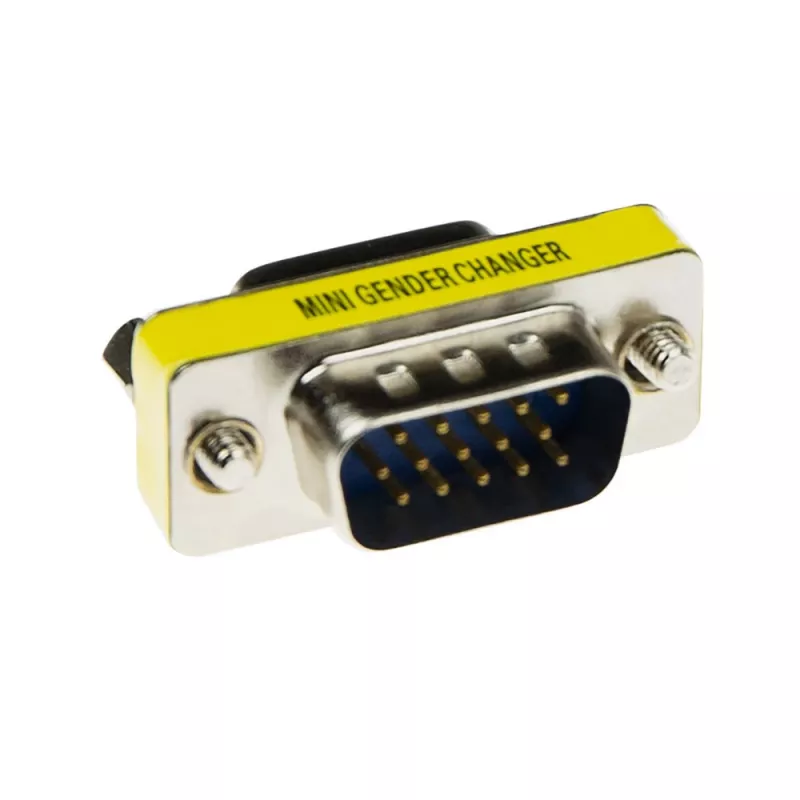

ACT AB9055 is a compact D-sub gender changer with a 15-pin High Density Sub-D (VGA-type) configuration, featuring a male connector on one side and a female connector on the other. It provides a straightforward way to change connector gender and maintain signal continuity between devices that use 15-pin D-sub interfaces.

Advantages

The adapter supports reliable contact between 15-pin High Density Sub-D connectors and helps preserve video and analogue signal integrity in short interconnection paths. Its compact form factor and solid construction offer simple, space-saving installation and dependable mechanical stability during repeated mating cycles.

Suitable for

• Connecting two VGA-type 15-pin D-sub cables where gender conversion is required
• Adapting equipment with male 15-pin High Density Sub-D to devices with female 15-pin High Density Sub-D
• Short patching tasks in AV setups, test benches, and legacy computer/video systems

Key specifications

• Model: ACT AB9055
• Type: Gender changer, 15-pin High Density Sub-D (VGA-type)
• Configuration: Male 15-pin to Female 15-pin
• Brand: ACT
• Category: Cable interface and gender adapters
• EAN: 8716065127195

How to use

Align the adapter’s male connector with the female connector of the cable or device and gently insert until the shell and screws (if present) are seated. Connect the opposite side to the matching male or female D-sub connector. Tighten any thumbscrews or fastening hardware by hand to secure the connection and avoid excessive torque to prevent damage.

Recommendations

Use this adapter for short interconnections and gender conversion only; it is not intended as a signal amplifier. Avoid exposing the connector to excessive mechanical stress, moisture, or corrosive environments to maintain reliable contact performance.
