ACT RG-59 patchkabel zwart 75 Ohm 1,00 m

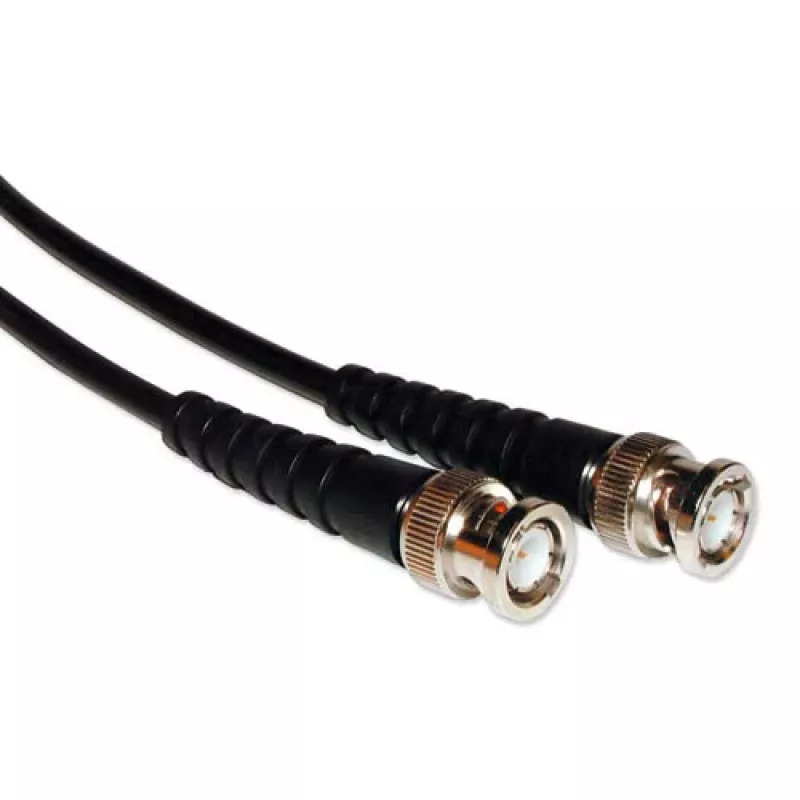

ACT RG-59 patch cable (Q71100) is a 1.00 m coaxial cable with BNC connectors on both ends, designed for audio and video signal transmission. The cable has a characteristic impedance of 75 Ohm and is suited for installations that require stable analogue video connections. It complies with RoHS and the Q71100 product standard.

Advantages

The RG-59 construction provides consistent 75 Ohm impedance to minimise signal reflections and loss. BNC connectors ensure a secure, easy-to-use connection compatible with a wide range of video equipment. The 1.00 m length offers convenient patching between nearby devices while keeping cable routing tidy.

Suitable for

• Analogue CCTV and surveillance camera connections
• Short-side video patching between monitors, switchers and recorders
• Audio/video test setups and temporary installations

Key specifications

• Model: Q71100
• Brand: ACT
• Cable type: RG-59 coaxial
• Connector type: BNC — both ends
• Impedance: 75 Ohm
• Length: 1.00 m
• Colour: Black
• Compliance: RoHS, Q71100
• EAN: 8716065155129

How to use

Connect the BNC connectors to the corresponding BNC sockets on your video devices by aligning the connector and twisting until it locks. Use the 1.00 m patch cable to bridge short distances between cameras, monitors, DVRs or other 75 Ohm equipment. Ensure connectors are fully seated to maintain signal integrity and avoid sharp bends in the cable to prevent damage.

Recommendations

For best performance, use the ACT RG-59 patch cable for short runs and indoor installations; for longer distances or higher-frequency digital signals consider using higher-grade coaxial cable types or appropriate baluns/converters.
