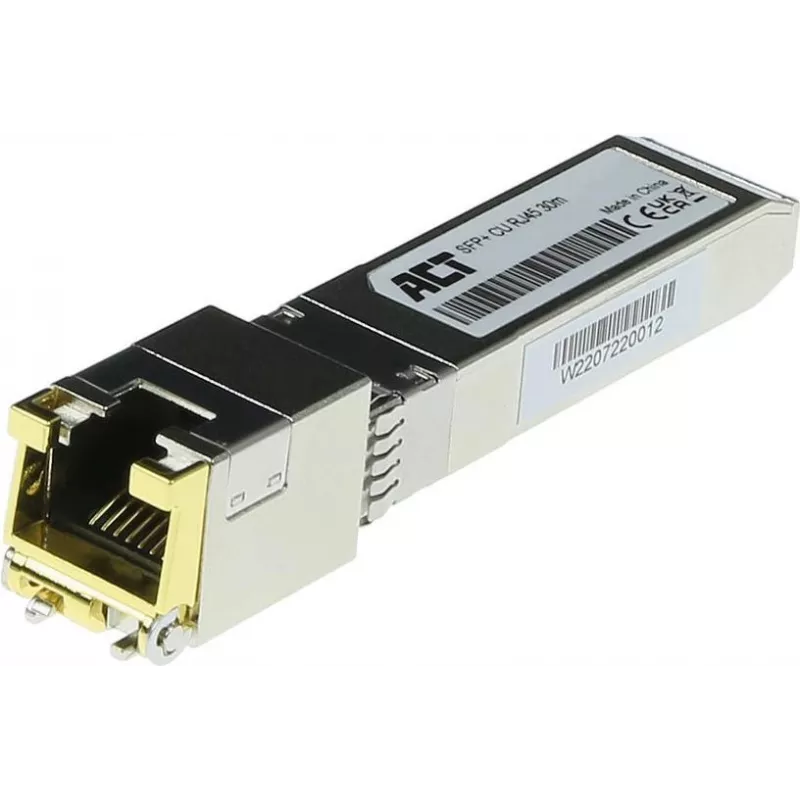

ACT TR0016 10GBase-T SFP+ koper transceiver module, 30m, RJ-45, DDM, MSA

Deliver 10 Gbps over copper with the ACT TR0016 SFP+ transceiver. This hot-swappable module supports 10GBase-T over Cat 6a/7 cabling up to 30 meters, making it a flexible solution for high-speed connections in data centers and enterprise networks.

Overview

The ACT TR0016 is an MSA-compliant SFP+ transceiver that converts an SFP+ port to an RJ-45 copper interface. It operates over standard twisted-pair cabling, eliminating the need for fiber optics in short-range 10 Gigabit Ethernet links. With full-duplex operation and DDM support, it provides real-time monitoring of key parameters.

What stands out

• 10 Gbps data rate with 10GBase-T protocol
• Copper RJ-45 connector for easy deployment
• Hot-swappable for minimal downtime
• DDM support for diagnostics
• Low power consumption: 2.5 W max
• Wide operating temperature: 0 to 70 °C

Technical details

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Protocol: 10 Gigabit Ethernet (10GBase-T)
• Max Transfer Distance: 30 m
• Cable Type: Cat 6a/7
• Connector: RJ-45
• Duplex Mode: Full-duplex
• Standards: IEEE 802.3ae, IEEE 802.3an
• Voltage: 3.3 V
• Power Consumption: 2.5 W max
• Operating Temperature: 0 - 70 °C
• Compliance: MSA

Our verdict

The ACT TR0016 is a reliable and cost-effective way to add 10G copper connectivity to SFP+ equipped switches and servers. Its DDM support and robust design make it suitable for demanding environments.
