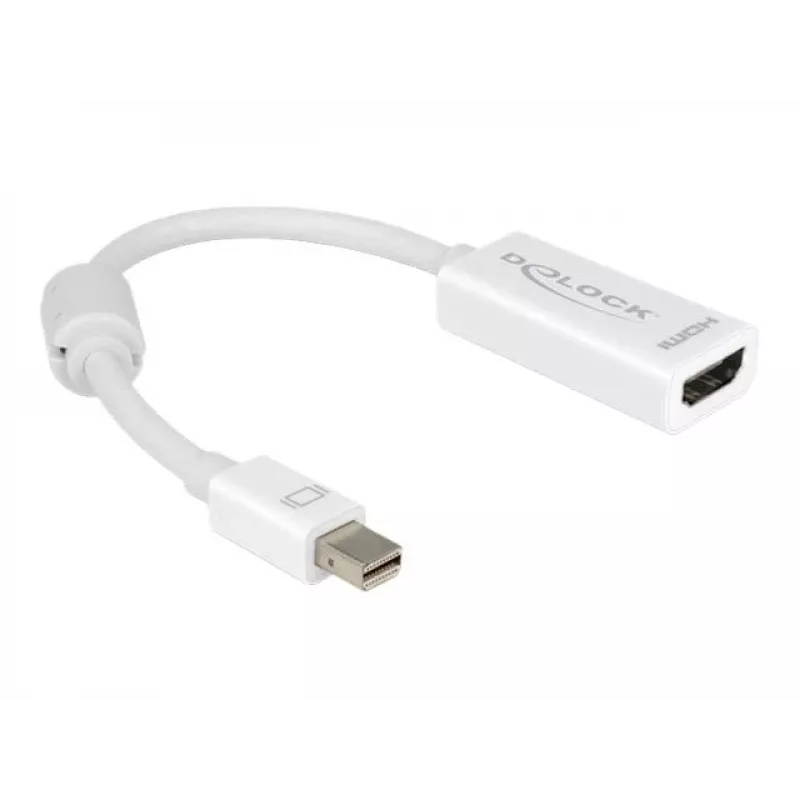

Adapter mini DisplayPort naar HDMI DeLOCK 65128

This mini DisplayPort to HDMI adapter from Delock enables connection of HDMI devices, such as monitors or TVs, to computers with a Mini DisplayPort output (for example MacBook, MacBook Pro or MacBook Air). The adapter has a male Mini DisplayPort (20 pin) connector and a female HDMI Type A (19 pin) connector in a compact white housing with an 18 cm cable.

Advantages

The adapter follows the Mini DisplayPort 1.1a and HDMI 1.3b standards, supports high-definition video up to 1080p and a transfer rate up to 6.75 Gbps. It provides a bandwidth of 225 MHz (2.25 Gbps per channel) and a vertical frequency range up to 162 MHz. The adapter also supports standby detection and can enter sleep mode automatically to reduce power use.

Suitable for

• Connecting a MacBook, MacBook Pro or MacBook Air to an HDMI monitor or TV
• Using a laptop with Mini DisplayPort output with external displays for presentations
• Connecting tablets or other devices with Mini DisplayPort to HDMI displays

Key specifications

• Connection: Mini DisplayPort 20 pin (male) to HDMI 19 pin (female)
• Standards: Mini DisplayPort 1.1a, HDMI 1.3b
• Maximum resolution: up to 1080p (Full HD)
• Maximum transfer rate: up to 6.75 Gbps
• Bandwidth: 225 MHz / 2.25 Gbps per channel
• Vertical frequency range: 162 MHz
• Cable length: 18 cm (with connectors)
• Colour: White

How to use

Connect the male Mini DisplayPort plug to the Mini DisplayPort output on your computer and plug an HDMI cable into the adapter's HDMI female connector. Then connect the HDMI cable to the monitor or TV. Select the correct input on the display. The adapter transfers video and audio signals in accordance with the supported standards. When the connected computer enters standby, the adapter supports standby detection and will enter sleep mode automatically.

Recommendations

For best results use a high-quality HDMI cable that supports the adapter's maximum bandwidth. Ensure your source device supports Mini DisplayPort output and is configured for external display output in the system display settings.
