Adapterplaat ACT FA2153 voor 6x LC Quad, 24-vezel OS2

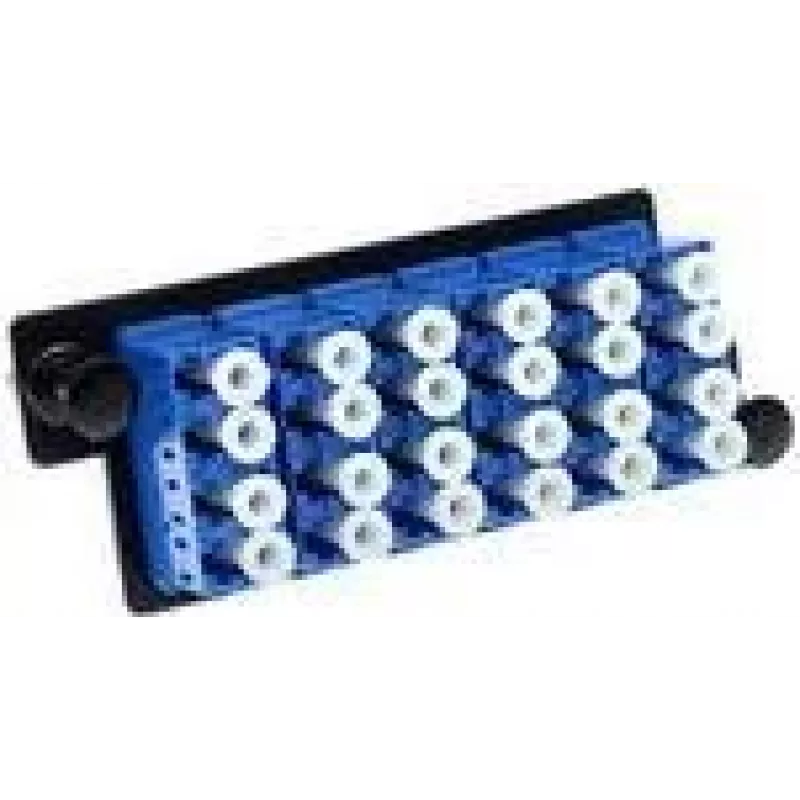

ACT FA2153 adapter plate provides a compact mounting solution for six LC quad adapters, enabling connection of up to 24 single-mode OS2 fibers. The plate is intended for installation in fiber distribution panels, patch cabinets and splice enclosures where a small footprint and orderly connector arrangement are required. It supports standard LC quad connectors and keeps fiber terminations accessible and organized for installation and maintenance tasks.

Advantages

The adapter plate groups six LC quad adapters in a single, space-efficient module, reducing panel clutter and simplifying cable routing. Its design secures connectors in a fixed orientation to help maintain optical alignment and protect connector ferrules. The plate is compatible with common cabinet and enclosure mounting patterns used by network installers and technicians, enabling straightforward replacement or expansion of existing fiber distribution infrastructure.

Suitable for

Key specifications

How to use

Mount the adapter plate into the designated slot or panel space inside a fiber distribution frame, patch cabinet or splice enclosure using the enclosure's standard fasteners. Insert LC quad adapters into the six plate positions, then connect LC patch cords or pigtails to the installed adapters. Ensure connectors are clean and properly seated to maintain optimal optical performance. Verify fiber continuity and link loss with appropriate test equipment after installation.

Recommendations

Use dust caps on unused adapter positions to prevent contamination. When handling connectors and adapters, follow established fiber-optic cleanliness procedures and use a fiber inspection scope and cleaning tools. For single-mode OS2 links, maintain bend radius guidelines for cables and secure patch cords to avoid strain on the adapter plate and connectors.
