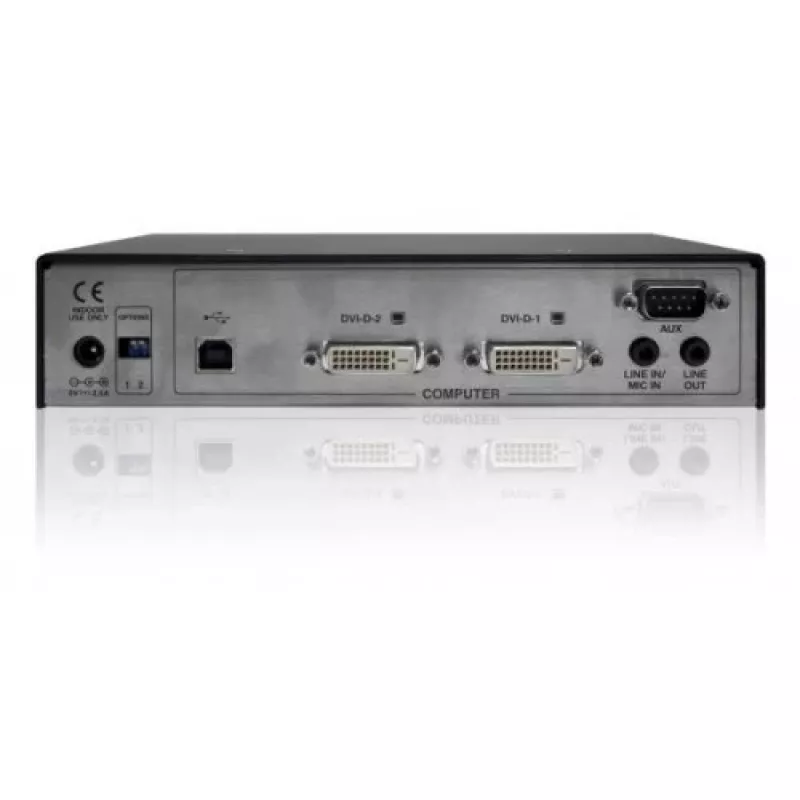

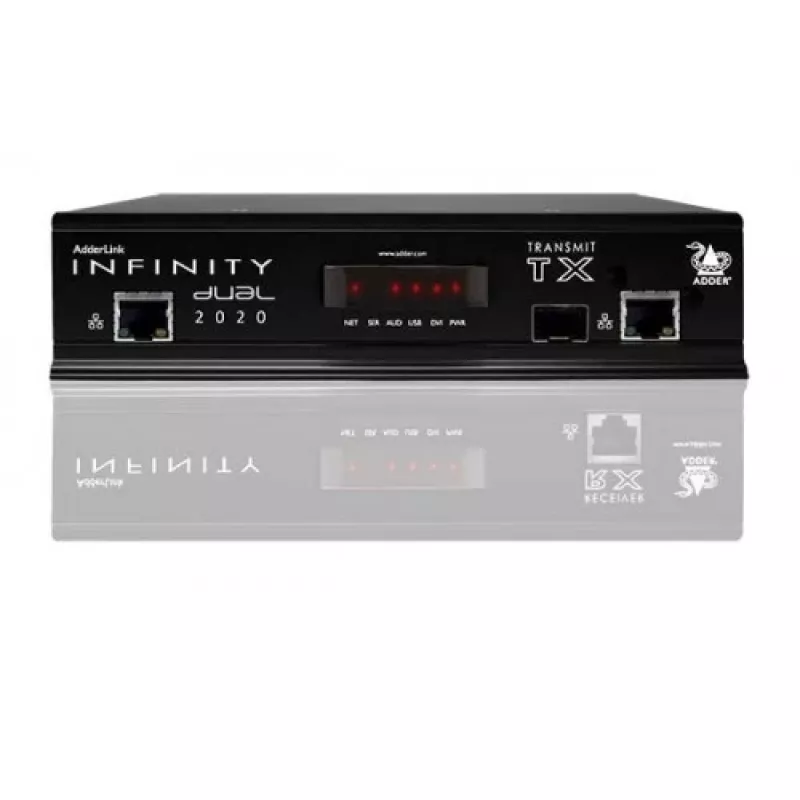

Adder ADDERlink INFINITY Dual 2020 zender-eenheid (ALIF2020T-IEC)

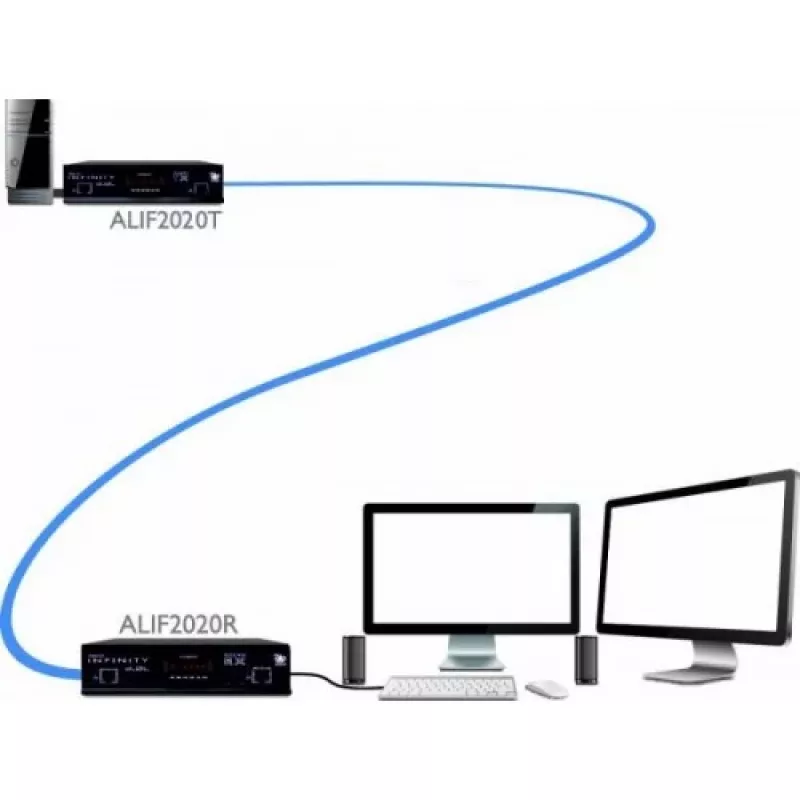

KVM over IP transmitter delivering dual-head DVI video, USB, and audio extension over Gigabit Ethernet with low latency and strong security.

Advantages

Supports two DVI-D heads at up to 1920 x 1200 @ 60Hz each, with four USB 2.0 ports for peripherals and both analog and USB audio. Dual Gigabit Ethernet ports enable redundant networking, while AES 128-bit encryption and RSA 2048-bit authentication protect data. Management is via web interface, CLI, or ADDERLink INFINITY Management (AIM).

Suitable for

• Control rooms requiring dual-monitor KVM extension over IP
• Broadcast and post-production environments
• Industrial and medical applications needing secure remote access
• IT administrators managing servers from a distance

Key specifications

• Video inputs: 2 x DVI-D
• Maximum resolution: 1920 x 1200 @ 60Hz per head
• Network ports: 2 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• USB ports: 4 x USB 2.0 Type A (peripheral), 1 x USB 2.0 Type B (host)
• Audio: Line In/Out (3.5mm jack), USB Audio
• Power input: IEC C14 (AC 100-240V, 50/60Hz)
• Form factor: Desktop, rack-mountable (1U with optional kit)
• Latency: <5ms
• Security: AES 128-bit encryption, RSA 2048-bit authentication
• Management: Web interface, CLI, AIM compatible
• Operating temperature: 0 to 40°C (32 to 104°F)
• Humidity: 10% to 90% non-condensing
• Chassis material: Steel

Recommendations

Ideal for mission-critical dual-head KVM extension where security, redundancy, and low latency are essential.
