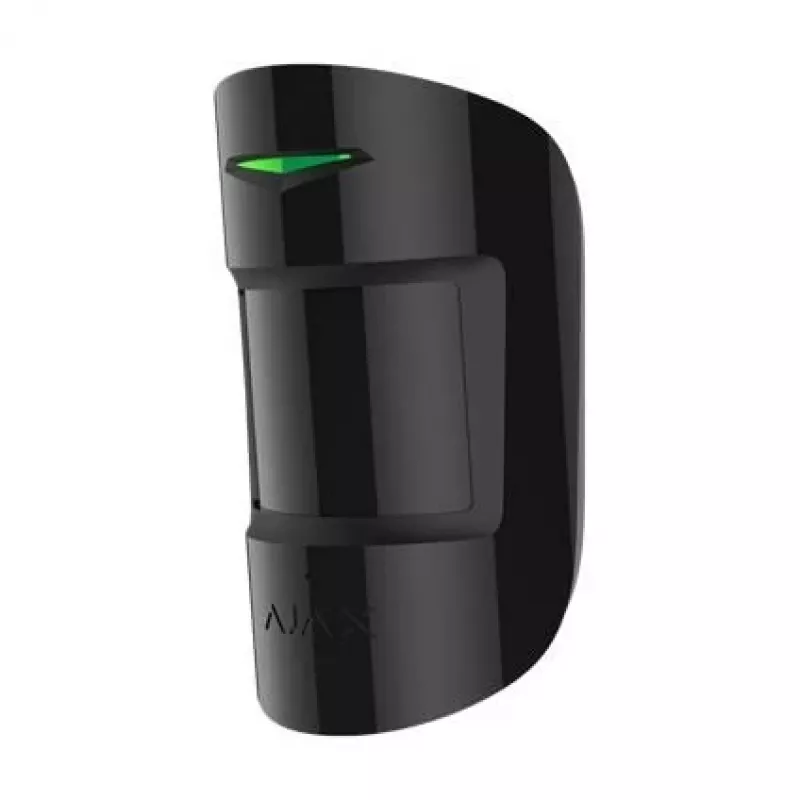

AJAX Draadloze CombiProtect Bewegings- en Glasbreukmelder Zwart 7167

The AJAX Wireless CombiProtect Detector (model 7167) is a professional-grade indoor security device that combines motion detection and glass break detection in a single unit. Designed for use with Ajax security systems, it provides reliable protection for homes and businesses. The detector features a PIR motion sensor with an 88.5° horizontal and 80° vertical detection angle, covering up to 12 meters, and an electret microphone for glass break detection up to 9 meters. With pet immunity up to 20 kg and 50 cm height, it minimizes false alarms. The device operates on the Jeweller wireless protocol (868.0-868.6 MHz) with a range of up to 1200 meters in open space, ensuring stable communication with Ajax hubs and range extenders. Powered by a single CR123A battery, it offers up to 5 years of battery life. The detector includes tamper protection against opening and detachment, adjustable sensitivity (3 levels for motion and 3 levels for glass break), and an alarm delivery time of 0.15 seconds. Recommended installation height is 2.4 meters. The sleek black design blends into any interior.

Advantages

Combines two detection technologies in one device, saving space and installation effort. Long battery life and reliable wireless range ensure low maintenance. Pet immunity reduces nuisance alarms. Fast alarm delivery (0.15 seconds) enhances security response.

Suitable for

• Residential homes
• Small offices
• Retail stores
• Warehouses

Key specifications

• Detection Type: Motion, Glass Break
• Motion Sensor Type: Passive Infrared (PIR)
• Glass Break Sensor Type: Electret Microphone
• Motion Detection Angle: 88.5° horizontal / 80° vertical
• Motion Detection Distance: Up to 12 m
• Glass Break Detection Distance: Up to 9 m
• Pet Immunity: Up to 20 kg, up to 50 cm height
• Wireless Technology: Jeweller (868.0-868.6 MHz)
• Wireless Range: Up to 1200 m (open space)
• Power Supply: 1 x CR123A battery
• Battery Life: Up to 5 years
• Installation Method: Indoor
• Operating Temperature Range: -10°C to +40°C
• Operating Humidity: Up to 75%
• Tamper Protection: Yes (against opening and detachment)
• Adjustable Sensitivity: 3 levels (motion), 3 levels (glass break)
• Alarm Delivery Time: 0.15 seconds
• Color: Black
• Compatibility: All Ajax Hubs and range extenders
• Recommended Installation Height: 2.4 m

Recommendations

For optimal performance, install the detector at the recommended height of 2.4 meters, away from direct sunlight, heat sources, and obstructions. Ensure compatibility with an Ajax hub. Test the device after installation and adjust sensitivity levels as needed.
