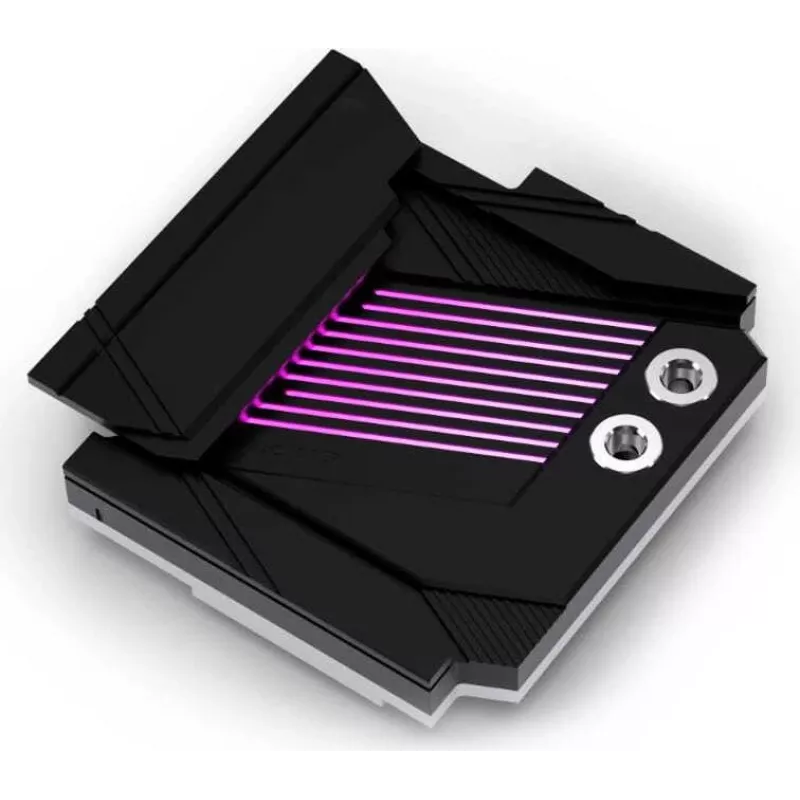

Alphacool Apex Monoblock X870 AORUS ELITE WIFI7 (AM5) CPU-VRM-M.2 waterblok

This Alphacool Apex monoblock delivers integrated liquid cooling for the Gigabyte X870 AORUS ELITE WIFI7 motherboard, covering the AMD AM5 CPU, voltage regulator modules, and two M.2 SSDs in a single precision-machined unit. The nickel-plated copper base with 0.4 mm micro-fins pulls heat away from all critical components, while the acrylic top and acetal frame keep the flow path clear and durable. Four G1/4" threads accept standard fittings, and the integrated digital RGB lighting connects via a 3-pin JST header for synchronized illumination. Each unit is pressure tested to 0.8 bar and includes Alphacool Apex thermal grease plus all mounting hardware.

Advantages

Combining CPU, VRM, and dual M.2 cooling into one block simplifies loop design and reduces potential leak points. The fine micro-fin structure maximizes thermal transfer under high flow, and the transparent acrylic top shows off coolant and RGB effects. The acetal frame adds structural rigidity without adding unnecessary weight, and the included thermal compound ensures a clean installation from the start.

Suitable for

• Gigabyte X870 AORUS ELITE WIFI7 motherboard owners
• AMD AM5 processors (Ryzen 7000/8000/9000 series)
• Custom loop builders seeking full motherboard coverage
• Enthusiasts who want integrated RGB lighting
• Systems with two M.2 NVMe drives

Key specifications

• Compatible motherboard: Gigabyte X870 AORUS ELITE WIFI7
• Socket: AMD AM5
• Cooled components: CPU, VRM, 2x M.2 SSD
• Base plate material: Nickel-plated copper
• Top material: Acrylic with acetal frame
• Threads: 4x G1/4"
• RGB: Digital aRGB, 3-pin JST (5V)
• Fin spacing: 0.4 mm micro-fins
• Included thermal paste: Alphacool Apex Thermal Grease
• Pressure tested: 0.8 bar

Recommendations

For best results, pair this monoblock with a high-flow D5 or DDC pump and a radiator of at least 240 mm. Use clear or colored coolant to showcase the acrylic top, and connect the RGB to a compatible motherboard header or controller. Ensure all fittings are tightened to the recommended torque to prevent leaks.
