Akyga AK-FL-500 ventilatorloze ATX-voeding 500 W, volledig modulair, 80 PLUS, APFC

The Akyga AK-FL-500 is a 500 W ATX power supply with a fully modular design and fanless construction. It features active PFC and 80 PLUS efficiency.

Key features

• Fully modular design
• Fanless construction
• 80 PLUS efficiency
• Active PFC
• Protections: OVP, OCP, OPP, OTP, SCP, UVP

Specifications

• Brand: Akyga
• MPN: AK-FL-500
• Product colour: Black
• Product type: Computer power supply
• Format: ATX 2.31
• Series: Fanless
• Supply voltage: 230 V
• Power consumption: 5 A
• Efficiency: > 80 %
• 80 PLUS compatibility: Yes
• Current on the +3.3V rail: 18 A
• Current on the +5V rail: 18 A
• Maximum load on +3.3V and +5V line: 75 W
• Current on the +12V rail: 41.7 A
• Maximum load on 12V line: 412 W
• Maximum power: 500 W

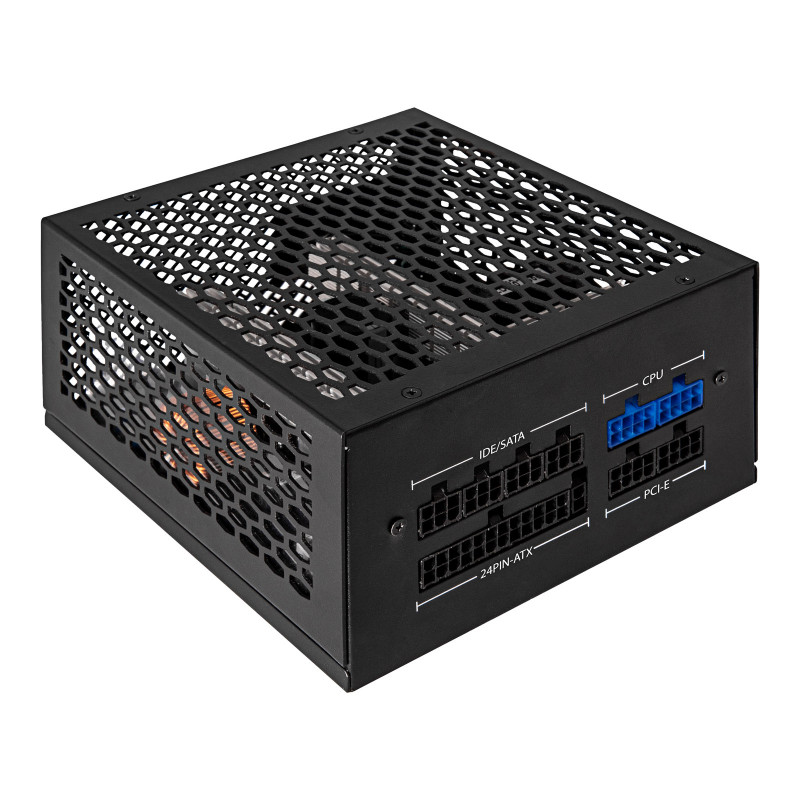

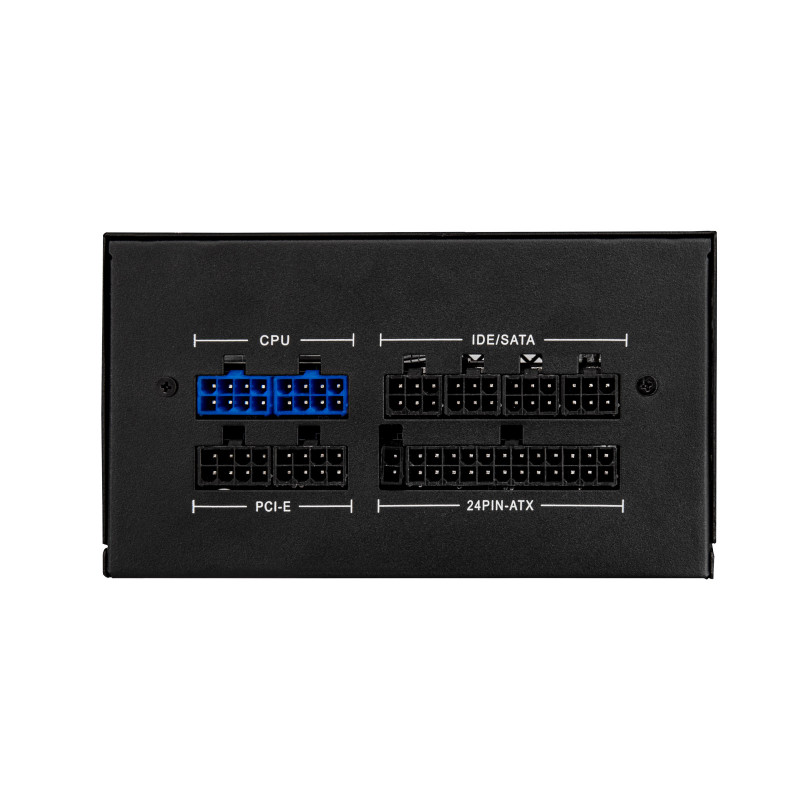

• Mainboard Power Connector: 24-pin
• Power connector EPS12V 8 pin: 1 pc (4 + 4-pin)
• Power connector PCI-E 6+2 pin: 1 pc
• Molex connector: 2 pcs
• SATA connector: 4 pcs
• Modular power supply: Yes
• PFC filter: Active
• Mechanical switch: Yes
• Ground wire: Yes
• Power supply connector: IEC C14
• The cable plug #1: Hybrid standard C/E/F (CEE 7/7)
• The cable plug #2: IEC C13
• Power cable included: Yes
• Material: Galvanized steel
• MTBF: 100000 h
• Temperature: 0 - 40 °C
• Package: EcoBox
• Product size (L x W x H): 85 x 150 x 160 mm
• Net weight: 1367 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
