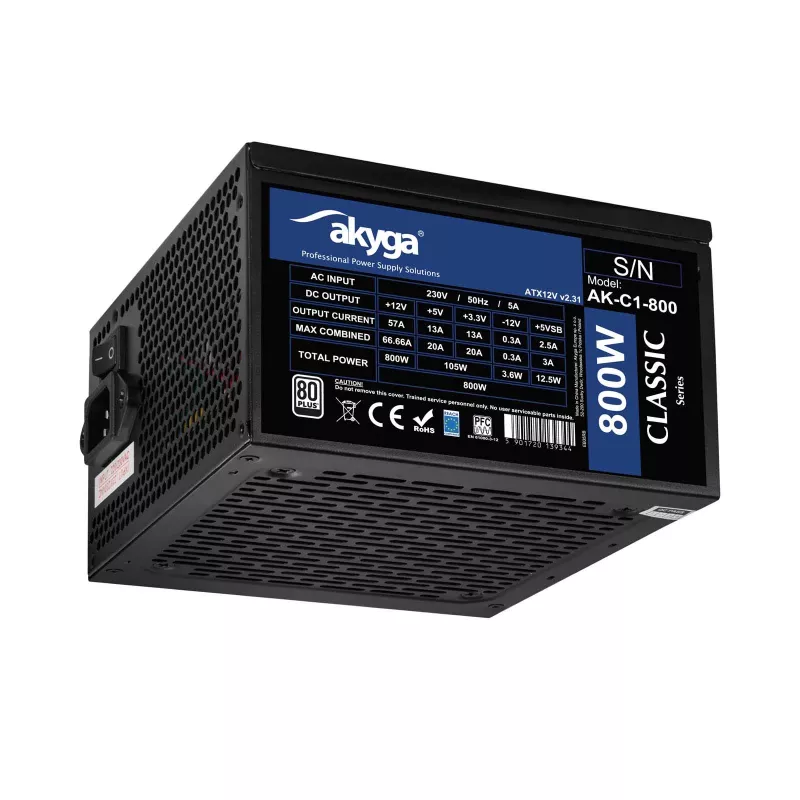

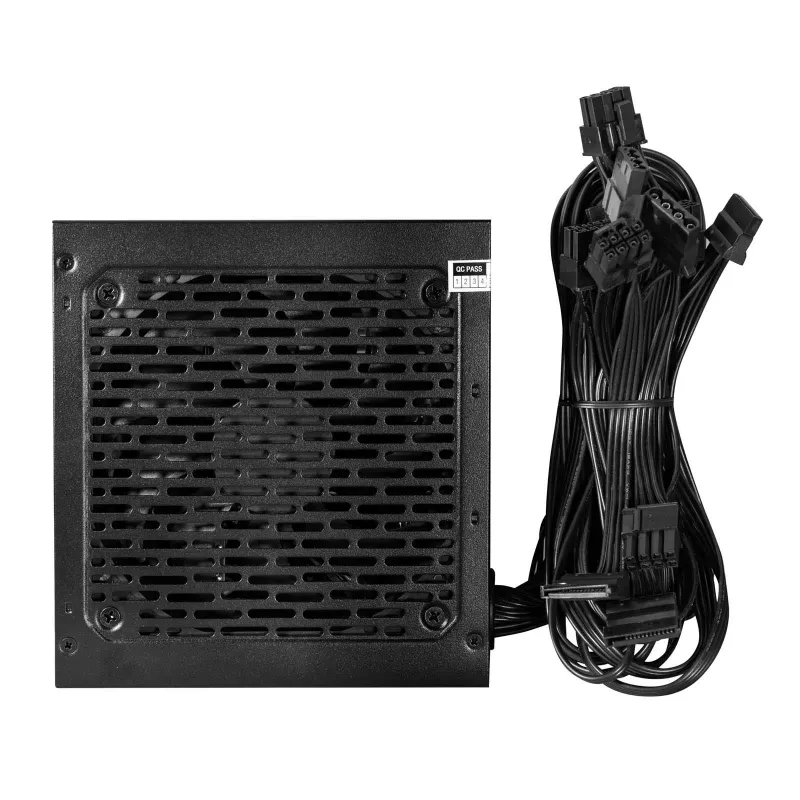

Akyga Classic AK-C1-800 ATX-voeding 800 W, 80 PLUS, actieve PFC, 120-mm ventilator

The Akyga Classic AK-C1-800 is an ATX power supply with 800 W total power and 80 PLUS certification. It features active PFC, a 120 mm fan, and a non-modular cabling design with flat cables for easier cable management.

Key features

• 800 W total power
• 80 PLUS certified
• Active Power Factor Correction (PFC)
• 120 mm fan
• Non-modular cabling with flat cables
• Black galvanized steel casing
• Power protection: OVP, OCP, OPP, OTP, SCP

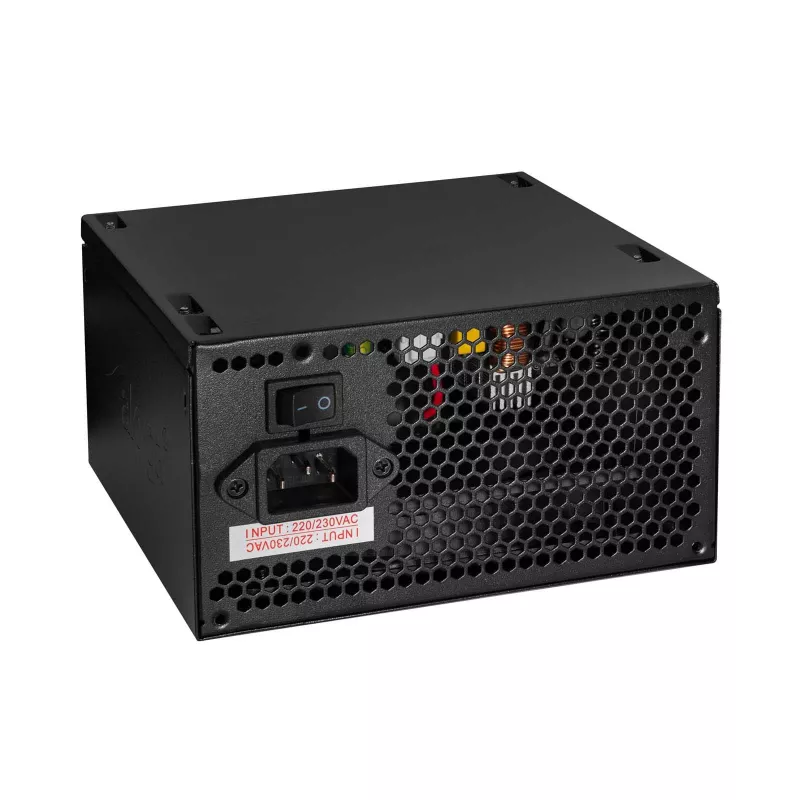

• On/off switch
• Manual included
• Screws included

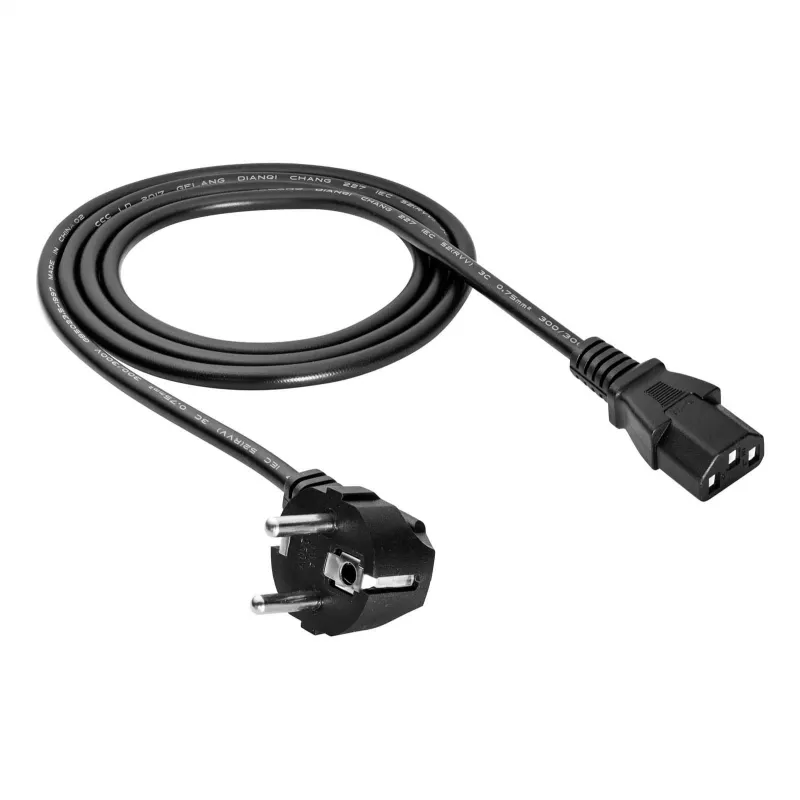

• Power cable included (CEE 7/7 - IEC C13)

Specifications

• Purpose: PC
• Format: ATX 2.31
• Series: Classic
• AC input voltage: 230 V
• AC input frequency: 50/60 Hz
• Efficiency: > 80%
• Max output current (+12V): 57 A

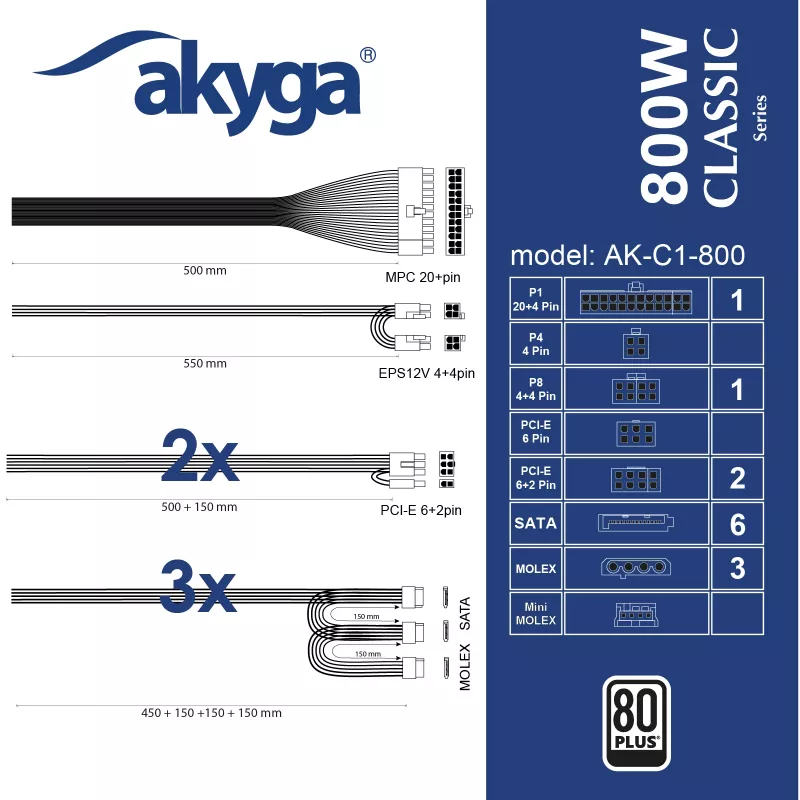

• Motherboard power connector: 24-pin
• EPS power connector (8-pin): 1
• PCI Express power connectors (6+2 pin): 2
• SATA power connectors: 6
• Peripheral (Molex) power connectors (4-pin): 3
• Number of fans: 1
• Fan diameter: 120 mm
• Cooling type: Active
• Product colour: Black
• Weight: 1.51 kg
• MTBF: 100000 h
