ALLNET Towlines kabel slepersysteem 7mm openbaar - ALL_Tow_7mm

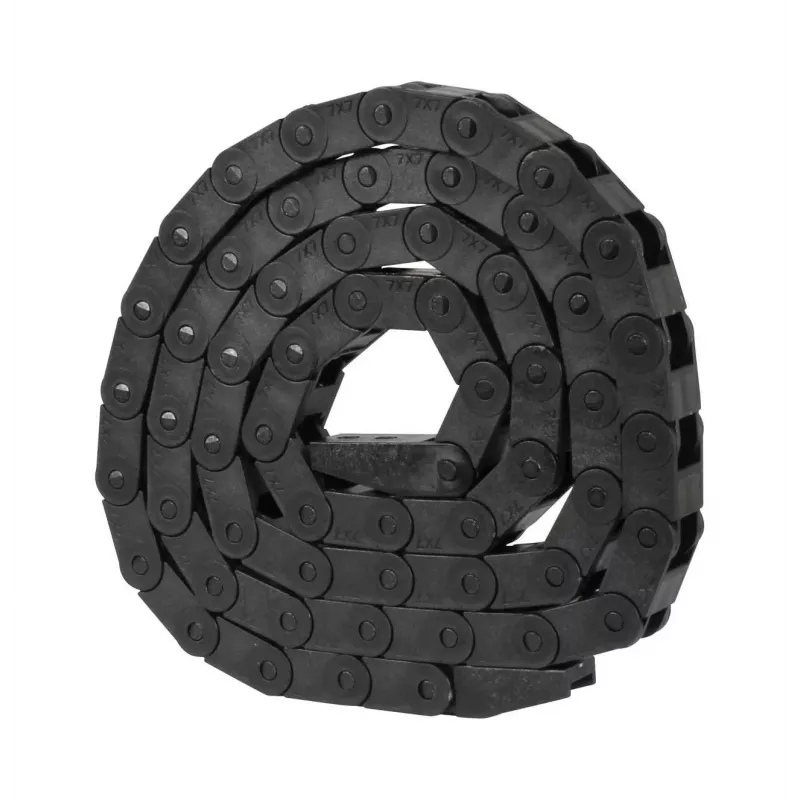

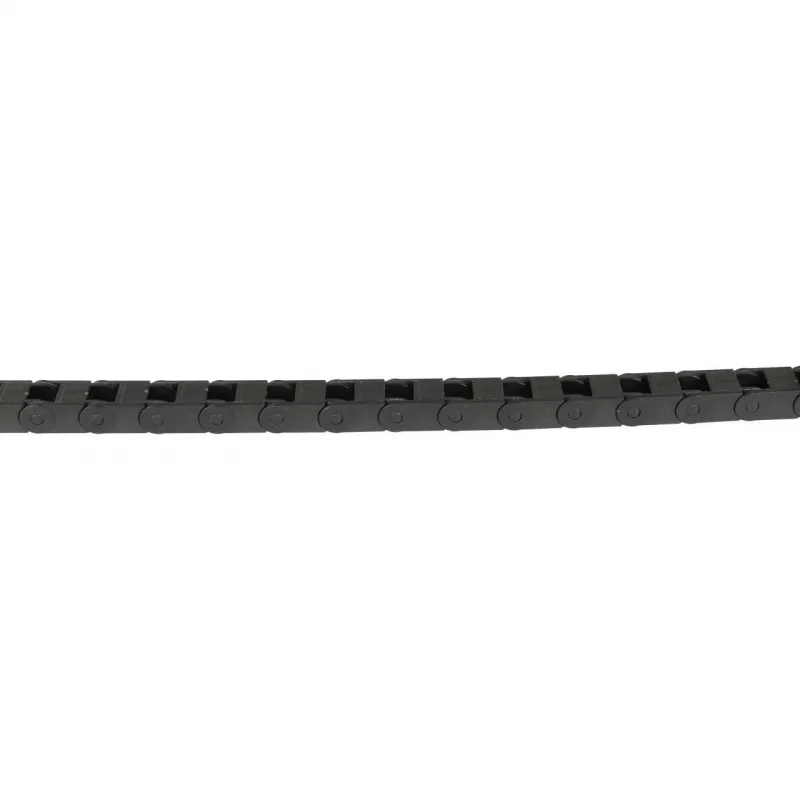

The ALLNET Towlines Cable Drag Chain (ALL_Tow_7mm) is a high-quality, openable cable carrier designed for mechanical protection of cables and hoses in motion systems. With an internal height and width of 7 mm, this compact drag chain is ideal for applications requiring precise cable guidance in tight spaces. Manufactured from reinforced nylon (PA66), it offers excellent durability and resistance to wear. The chain features a bend radius of R18 and a pitch of 12.5 mm, supporting travel speeds up to 5 m/s and accelerations up to 5 m/s². Its openable design on one side allows for easy cable installation and maintenance. Operating temperature range from -20°C to +80°C ensures reliable performance in various environments. Sold per meter, this bridge-type drag chain is a versatile solution for cable and hose protection in automation, robotics, and machinery.

Advantages

Openable on one side for quick cable insertion and removal; compact 7x7 mm internal dimensions save space; reinforced nylon construction provides long service life; high speed and acceleration capability; wide operating temperature range.

Suitable for

• Automation and robotics cable management
• CNC machines and 3D printers
• Motion systems with limited installation space
• Protection of cables and hoses from mechanical stress

Key specifications

• Internal Height: 7 mm
• Internal Width: 7 mm
• External Height: 10 mm
• External Width: 13 mm
• Bend Radius: R18
• Pitch: 12.5 mm
• Material: Reinforced Nylon (PA66)
• Color: Black
• Max Travel Speed: 5 m/s
• Max Acceleration: 5 m/s²
• Operating Temperature: -20°C to +80°C
• Type: Bridge Type
• Unit of Sale: Per meter

Recommendations

For optimal performance, ensure the drag chain is installed with proper support and within the specified bend radius. Use appropriate cable ties or separators to organize cables inside the chain. Regularly inspect for wear and replace if damaged.
