ALOGIC Fusion USB-C naar DisplayPort 1.2 kabel 1M USB Type-C DisplayPort

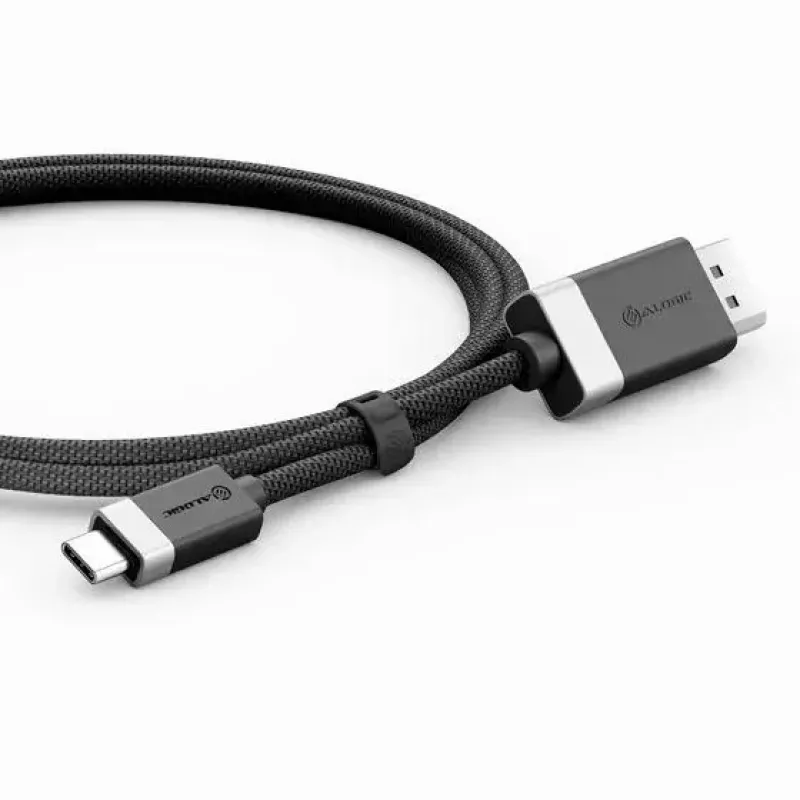

The ALOGIC Fusion USB-C to DisplayPort 1.2 Cable (1 m) connects USB Type-C devices to DisplayPort displays and delivers up to 4K Ultra HD video at 60 Hz. With a USB-C connector on one end and a DisplayPort on the other, this 1 metre cable is suitable for laptops, tablets and other USB-C sources requiring high-quality video output and audio support.

Advantages

This cable supports 4K @ 60Hz for crisp, detailed video and is compatible with lower resolutions such as 1440p and 1080p. It carries multichannel audio including 7.1 surround sound and implements HDCP 2.2 and DPCP content protection standards. The braided black jacket increases durability and reduces wear compared with standard cables.

Suitable for

• Connecting USB-C laptops or tablets to a DisplayPort monitor
• Hooking a computer to a projector for presentations
• Extending desktop space by connecting to an external display
• Watching 4K video or content with HDCP 2.2 protection

Key specifications

• Length: 1 m
• Connector A: USB Type-C
• Connector B: DisplayPort
• DisplayPort version: 1.2
• Maximum resolution: 4K Ultra HD (3840×2160) at 60 Hz
• Audio: up to 7.1 surround sound
• Colour: Black
• Content protection: HDCP 2.2, DPCP

How to use

Ensure the host device’s USB-C port supports DisplayPort Alternate Mode, then connect the USB-C end to your laptop or tablet and the DisplayPort end to your monitor or projector. Select the appropriate input on the display and configure resolution and audio settings in the host device’s display settings. For best results, set the display to 3840×2160 at 60 Hz if supported.

Recommendations

Use this cable for direct device-to-display connections; avoid running through passive adapters that may not preserve 4K@60Hz. Inspect connectors before use and replace the cable if the braid or contacts show visible damage.
