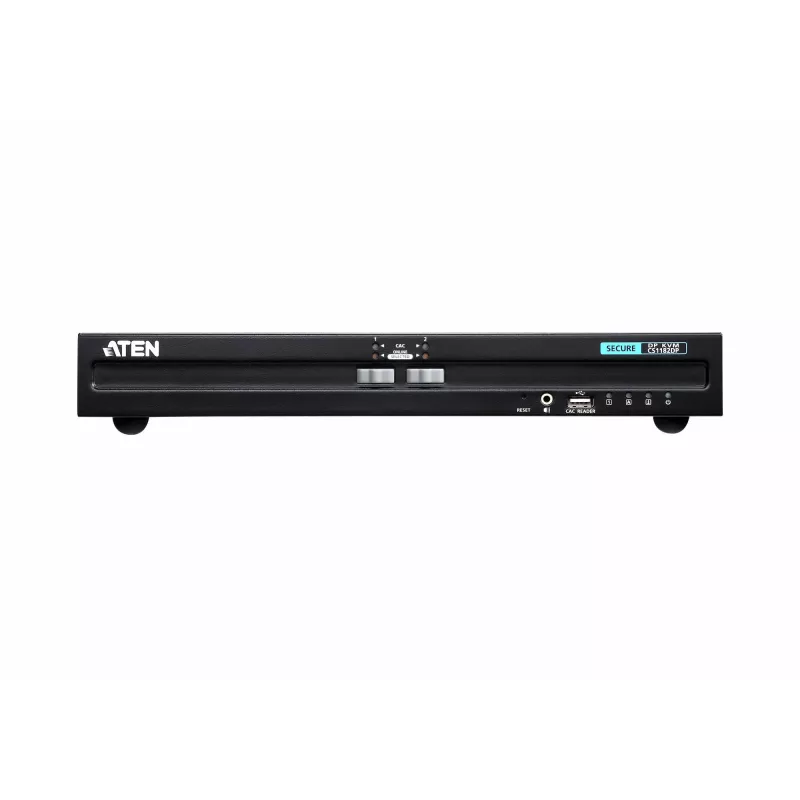

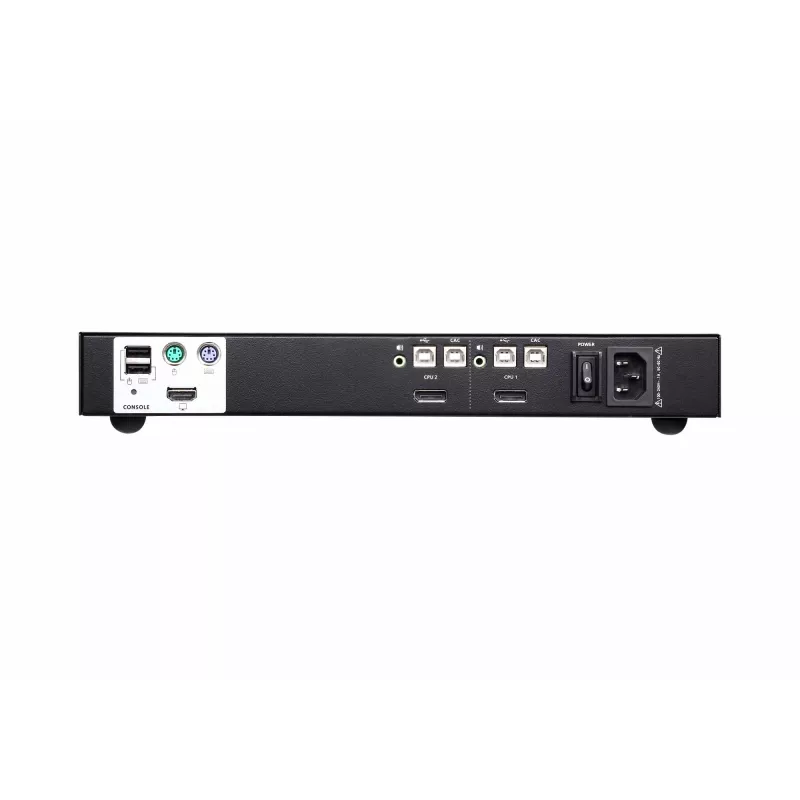

ATEN 2-poorts USB DisplayPort Secure KVM-switch

The ATEN PSS PP v3.0 Secure KVM Switch (CS1182DP) is designed for secure defense and intelligence environments and certified to the PSS PP v3.0 Protection Profile by the National Information Assurance Partnership (NIAP). This 2-port USB DisplayPort KVM switch lets you control two computers with a single keyboard, mouse and DisplayPort monitor, supports up to 4K Ultra HD (3840 x 2160) at 30 Hz, and is built in a durable metal 1U rack-mountable enclosure. It includes the CS1182DP unit, a LIN2-418K-E12G power cord and user instructions.

Advantages

The switch meets stringent security requirements for peripheral sharing in classified or sensitive installations through PSS PP v3.0 certification. It provides a compact 1U metal housing for rack mounting, USB connectivity for keyboard and mouse, and DisplayPort video output supporting high-resolution displays. Wide AC input (100–240 V) ensures compatibility with global power systems, and the unit complies with RoHS environmental standards.

Suitable for

• Secure government, defense and intelligence facilities
• Data centers and server rooms requiring controlled peripheral sharing
• Environments needing centralized control of two workstations with one set of peripherals

Key specifications

• Model: CS1182DP
• Ports: 2 computer ports (USB for keyboard/mouse), DisplayPort video
• Maximum resolution: 3840 x 2160 @ 30 Hz (4K Ultra HD)
• Power: AC 100–240 V
• Form factor: 1U rack-mountable, metal casing
• Weight: 1.94 kg
• Colour: Black
• Compliance: PSS PP v3.0 (NIAP), RoHS

How to use

Install the CS1182DP into a 1U rack location or place it on a stable surface. Connect the DisplayPort monitor and a USB keyboard and mouse to the console ports, then connect each computer to the corresponding DisplayPort and USB computer ports. Plug in the supplied power cord to an AC outlet within the 100–240 V range and power on the unit. Switch control between connected computers using the device's front-panel control method as described in the user instructions.

Recommendations

For secure deployments, follow your organisation's security procedures and the product user instructions for physical installation and cable management. Use certified power sources and ensure firmware and configuration comply with the PSS PP v3.0 security profile requirements.
