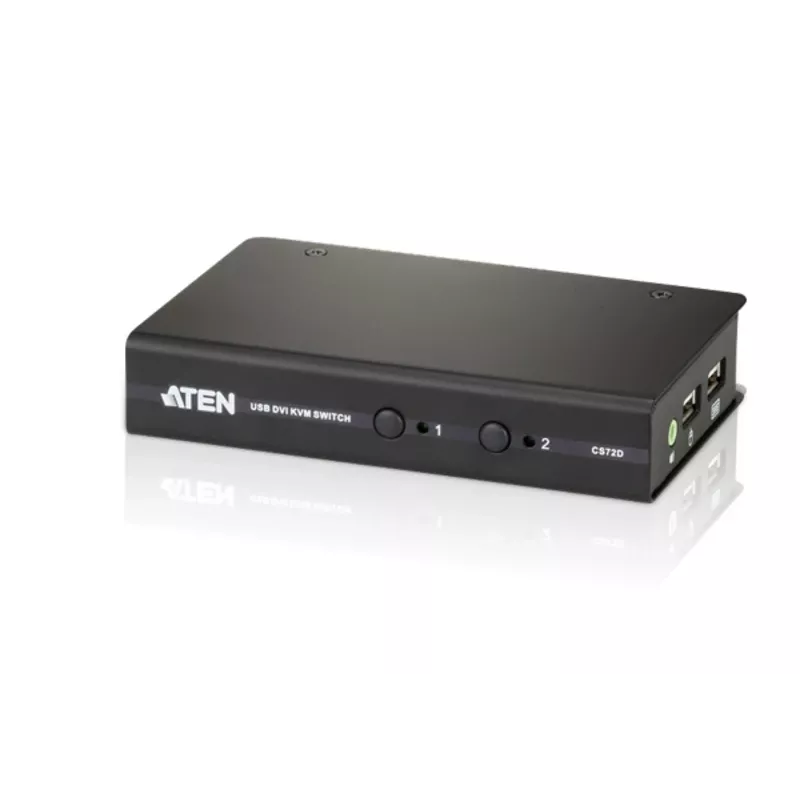

ATEN CS72D KVM-switch zwart

The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.

The CS72D comes with ATEN’s Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB2.0 peripheral sharing, as well as provides quick and easy methods to access computers.

Features:
-Fully compliant with DVI specifi cation (Digital only)
-Supports multi-function mouse and wireless mouse/keyboard
-Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
-Superior video quality – 1920 x 1200@60Hz
-Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun
-HDCP compliant
-Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
-Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems

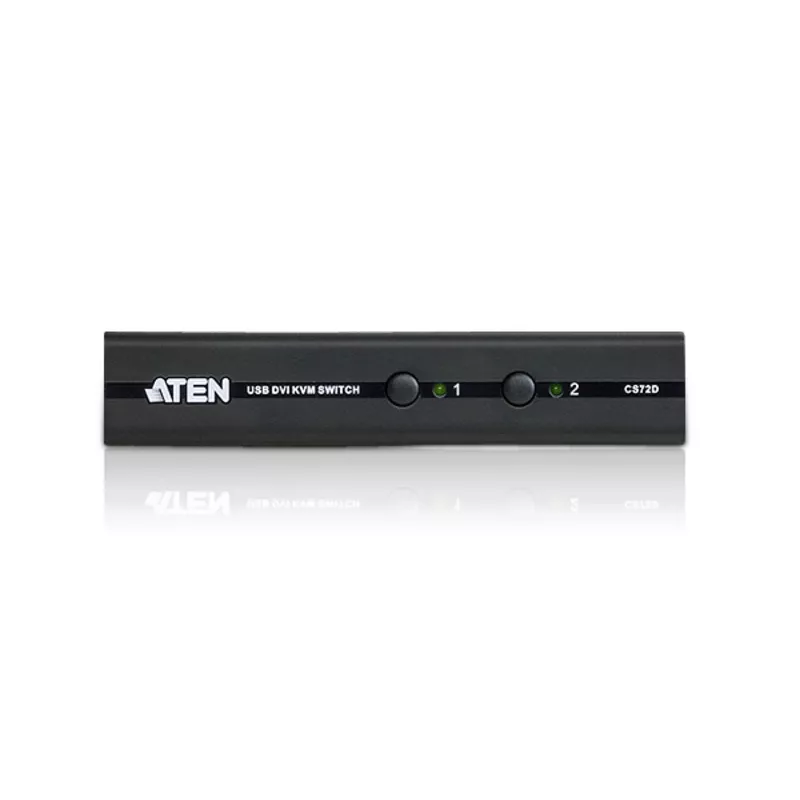

-Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*
-USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
-Complete keyboard emulation for error-free booting
-Firmware upgradeable
-Non-powered
-Mac/Sun keyboard support and emulation**

* Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse
** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

Package Contents
1x CS72D 2-Port USB DVI KVM Switch
1x Custom KVM Split Cable (DVI-D, USB, Audio; 1.2m/4ft)
1x User Instructions

ATEN CS72D. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Cable length: 1.2 m. Input voltage: 5 V, Power consumption (typical): 5 W. Compliance certificates: RoHS

How to use

Connect the included custom KVM split cable from the CS72D to each computer's DVI‑D, USB and audio ports, then attach your DVI monitor, USB keyboard and USB mouse to the console ports. Power is supplied via the connected computers (bus‑powered), so no external power adapter is required. Switch between connected systems using the front‑panel pushbutton, configured hotkeys on the keyboard or by enabling mouse switching.

Recommendations

For best video performance, use high‑quality DVI‑D cables and ensure connected displays support the target resolution (1920 x 1200 @ 60 Hz). If audio or USB 2.0 peripheral sharing is required, verify that the connected computers provide the necessary USB 2.0 support.
