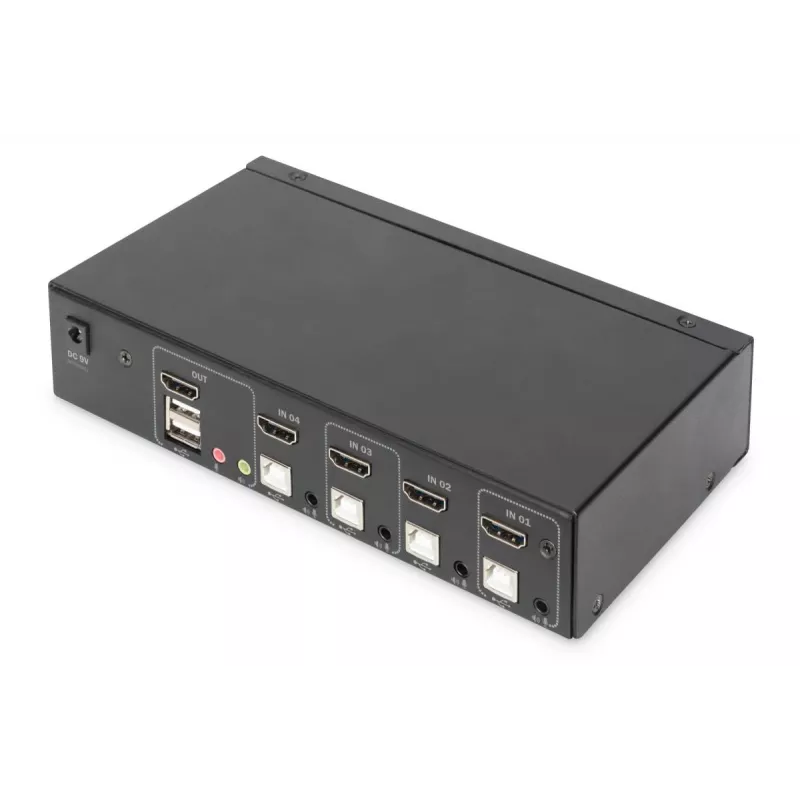

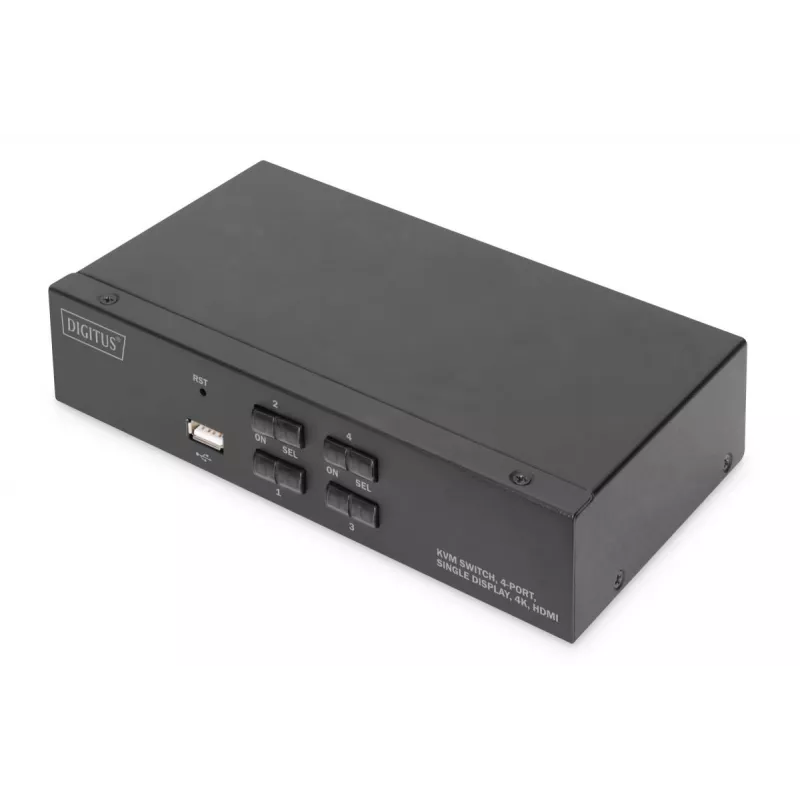

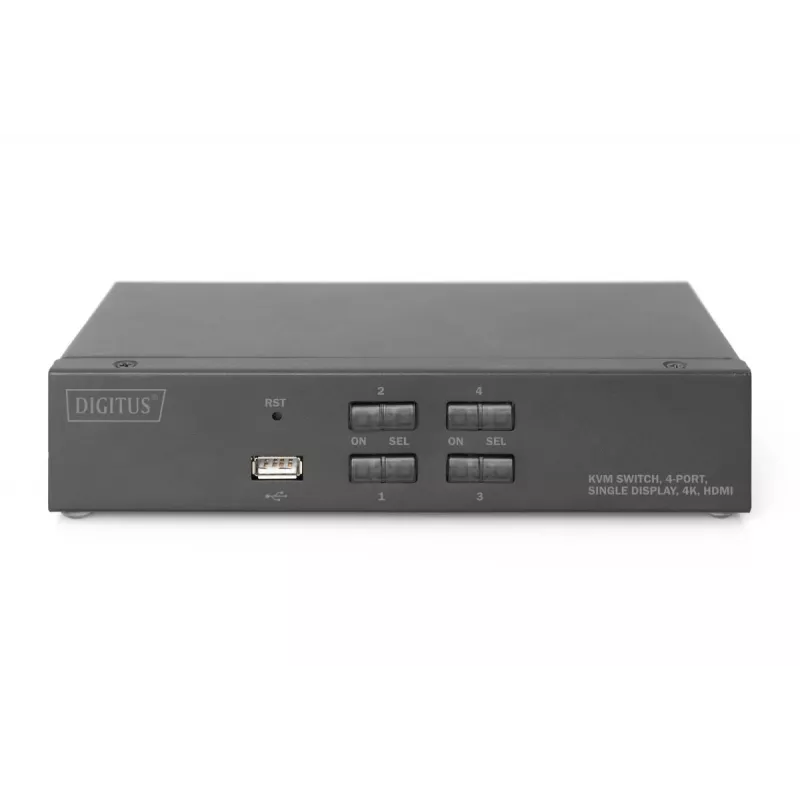

KVM-switch Digitus 4 poorten single display 4K HDMI

The KVM Switch Digitus 4 Port Single Display 4K HDMI lets you control up to four computers with a single HDMI monitor, one USB keyboard and one USB mouse. It supports UHD 4K output at 30 Hz with FreeSync and provides audio switching for microphone and speaker. The unit includes an integrated USB A port on the front panel for additional peripherals and status LEDs to indicate the active connection. The sturdy metal housing and Plug-and-Play operation (no drivers required) simplify installation and daily use.

Advantages

This 4-port KVM switch eliminates the need to replug cables when changing between systems by offering button or hot‑key switching. It provides a combined USB hub for keyboard, mouse and an extra USB A port for shared peripherals, supports Dolby TrueHD and DTS HD Master Audio, and displays connection and operating status with front LEDs. The metal enclosure and included cables make the device durable and ready for fast deployment.

Suitable for

• Workstations requiring one shared monitor and input peripherals
• Small offices and home offices with multiple PCs
• Setups that need 4K/30 Hz video output with audio switching
• Environments where quick switching between systems is necessary

Key specifications

• Brand: DIGITUS, MPN: DS-12880, EAN: 4016032468639
• Controls up to 4 computers via HDMI/DisplayPort input and HDMI output
• Maximum resolution: 3840 x 2160 (4K) at 30 Hz; FreeSync supported
• Keyboard and mouse: USB ports; front USB A port for additional peripherals
• Audio: microphone and speaker switching; supports Dolby TrueHD and DTS HD Master Audio
• Dimensions: 202 × 110 × 44 mm; Weight: 0.78 kg; Colour: Black
• Housing: sturdy metal; Plug-and-Play (BIOS level), LED status indicators

How to use

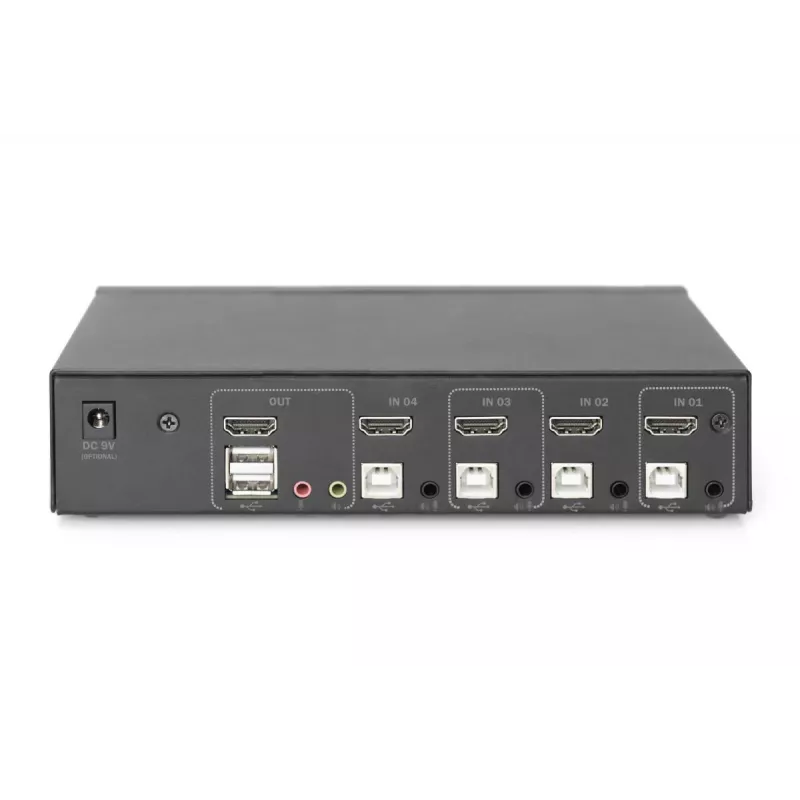

Connect up to four source computers to the KVM switch using the supplied HDMI and USB cables, and connect your monitor to the HDMI output on the rear. Plug your USB keyboard and mouse into the dedicated USB ports and attach any additional USB device to the front USB A port if needed. Switch between connected computers using the button on the switch or the keyboard hot key. Audio lines for microphone and speaker can be connected and switched together with the active video and USB signals.

Recommendations

For stable 4K/30 Hz output, use high-quality HDMI cables and ensure source GPUs support 4K at 30 Hz. When using audio formats like Dolby TrueHD or DTS HD Master Audio, verify that the connected devices and playback software support these formats. Place the switch on a flat, ventilated surface and avoid blocking the ventilation around the metal housing.
