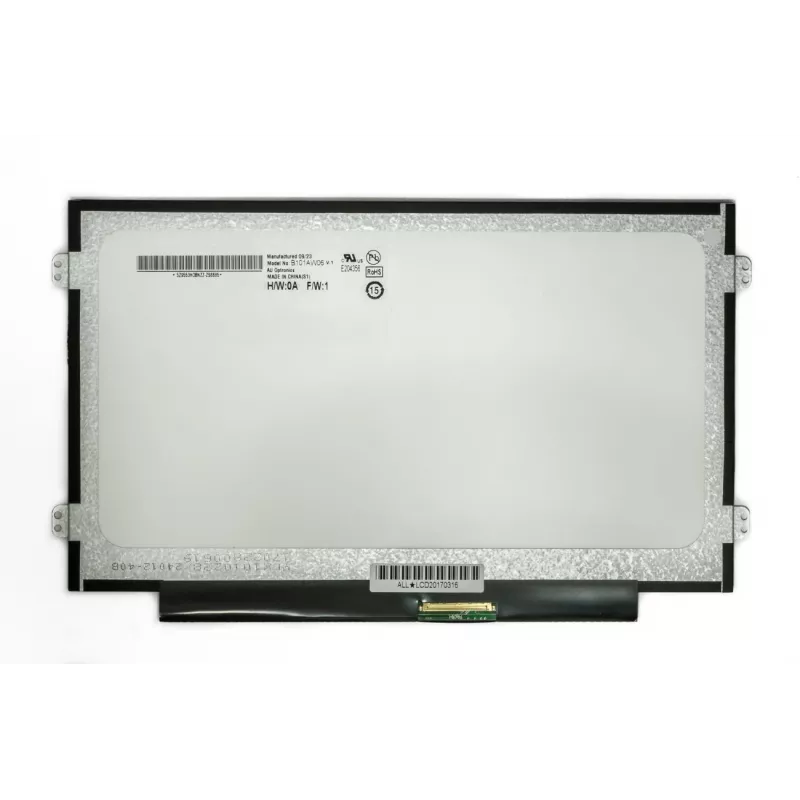

AUO LC300525 10,1" WSVGA 1024x600 60Hz glanzend 40-pins lcd-scherm

Replacement LCD screen with a 10.1-inch WSVGA panel, delivering a clear 1024 x 600 resolution at a 60 Hz refresh rate. Its glossy surface enhances contrast and colour vibrancy, while the 40-pin LVDS connector ensures straightforward integration into compatible devices.

Advantages

This display features a 16:9 aspect ratio, ideal for widescreen content. The LED backlight offers efficient, uniform illumination, and the TFT active matrix technology provides consistent image quality. The connector is positioned on the bottom right (from the back view), simplifying installation in many systems.

Suitable for

• Industrial equipment and embedded systems requiring a 10.1" WSVGA display
• Portable devices and kiosks needing a glossy, high-clarity screen
• Repair and upgrade projects where a 40-pin LVDS connection is standard

Key specifications

• Display size: 10.1 inches
• Resolution: 1024 x 600 pixels
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Panel type: LCD (TFT active matrix)
• Backlight: LED
• Surface finish: Glossy
• Data connector: 40-pin LVDS
• Connector position: Bottom right (from back view)
• Touchscreen: No
• Colour support: 262K colours (6-bit)

Recommendations

Verify that your device's connector type, position, and mounting dimensions match this panel before ordering. Handle the screen by its edges and use proper ESD precautions during installation.
