AUO scherm 14,0 inch, 1920x1080, 60Hz, mat, 30-pin, rechts, IPS

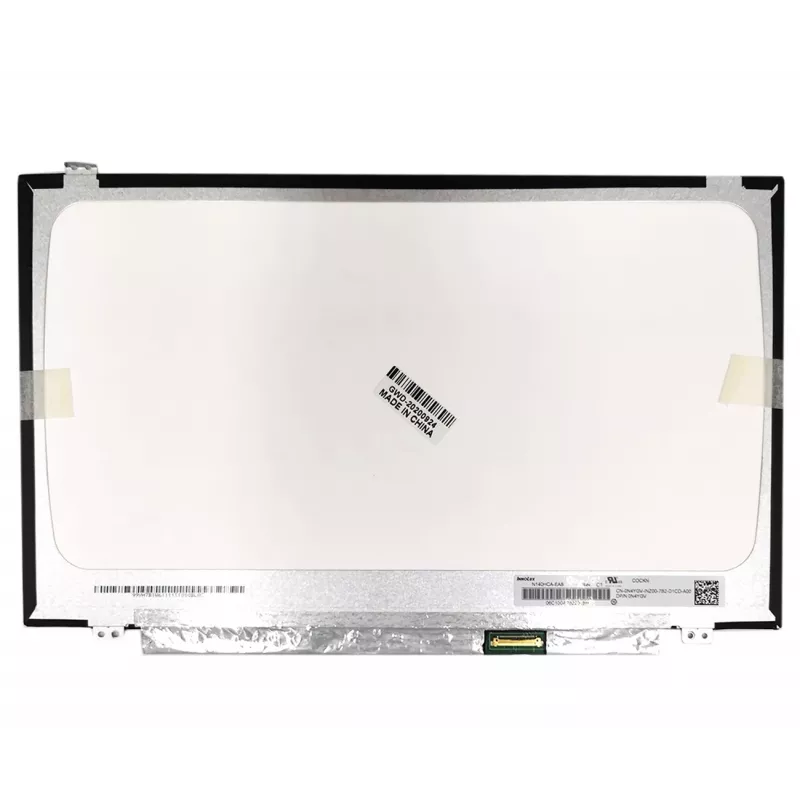

Laptop screens fail—cracks, dead pixels, backlight bleed. The AUO LC302086 is a direct replacement 14.0-inch IPS panel that restores a crisp Full HD image without glare, using a standard 30-pin eDP connection positioned on the right side for easy installation.

Who is it for

Repair technicians and DIY upgraders who need a reliable, matte-finish panel for compatible laptops. It fits models that accept a 14.0-inch 1920x1080 IPS screen with a right-side 30-pin connector.

Main features

• 14.0-inch IPS display with 1920x1080 Full HD resolution
• Matte (anti-glare) surface reduces reflections in bright environments
• 60Hz refresh rate for smooth everyday use
• LED backlight for consistent brightness and low power draw
• 30-pin eDP connector positioned on the right (viewed from the back)
• Panel only—bezel and mounting hardware not included

Specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Refresh rate: 60 Hz
• Panel type: IPS (In-Plane Switching)
• Surface finish: Matte (anti-glare)
• Backlight type: LED
• Aspect ratio: 16:9
• Connector type: eDP 30-pin
• Connector position: Right (when viewed from the back)
• Brightness: 250 cd/m²
• Contrast ratio: 800:1
• Viewing angle (H/V): 85°/85°
• Color gamut: 45% NTSC
• Response time: 25ms
• Display technology: TFT Active Matrix
• Condition: New

Tips

Before ordering, confirm your laptop uses a 30-pin eDP connector on the right side and a 14.0-inch 16:9 panel. Handle the panel by its edges and avoid touching the surface to prevent damage.
