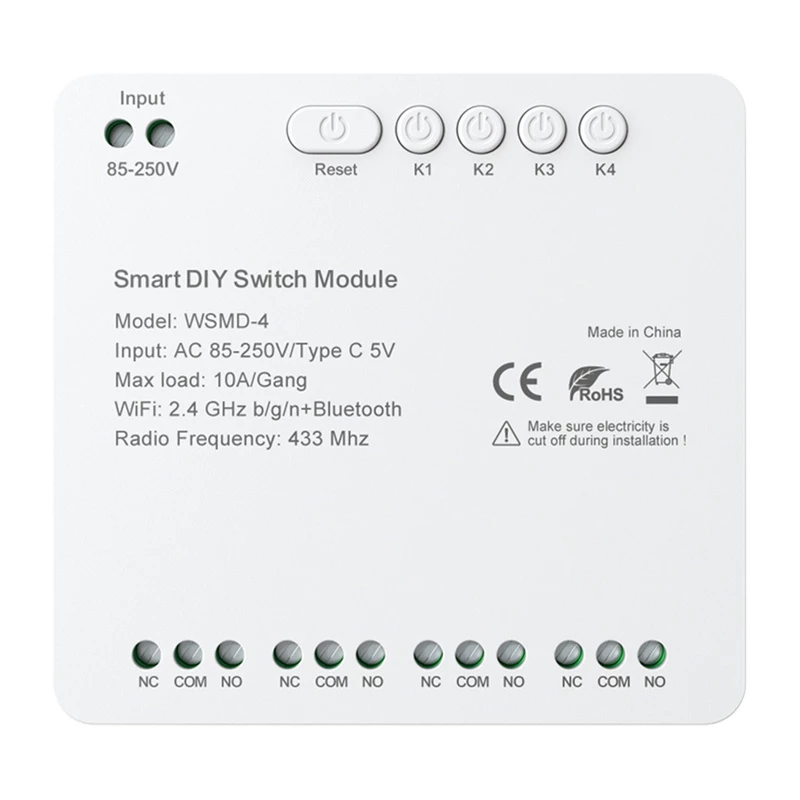

AVATTO WSMD-4 250V Slimme schakelmodule

The Avatto WSMD-4 250V is a smart four-channel DIY switch module that allows you to remotely control lights, roller shutters, gates, pumps and other electrical devices. It uses 2.4GHz Wi-Fi and Bluetooth connectivity and is compatible with AVATTO, Tuya Smart and Smart Life systems.

Key features

• Four-channel DIY smart switch module
• Remote control via AVATTO, Tuya Smart or Smart Life apps
• Voice control with Amazon Alexa or Google Assistant
• Manual operation via buttons on the housing
• 433 MHz RF radio remote control support
• Schedules, automatic, timed modes and group control
• Bluetooth fallback when Wi-Fi connection is interrupted
• Wire connection according to NO, COM and NC markings
• Pairing via Reset button or app

Specifications

• Brand: Avatto
• Model: WSMD-4 250V
• Type: DIY 4-channel smart switch module
• Power supply: AC 85-250V / USB Type-C 5V
• Maximum load: 10 A per channel
• Wireless connectivity: Wi-Fi 2.4 GHz b/g/n + Bluetooth
• Radio frequency: 433 MHz (RF Remote)
• Operating temperature: -10 °C ~ +40 °C
• Application support: AVATTO / Tuya Smart / Smart Life
• Voice control: Amazon Alexa / Google Assistant
• Certifications: CE, RoHS
