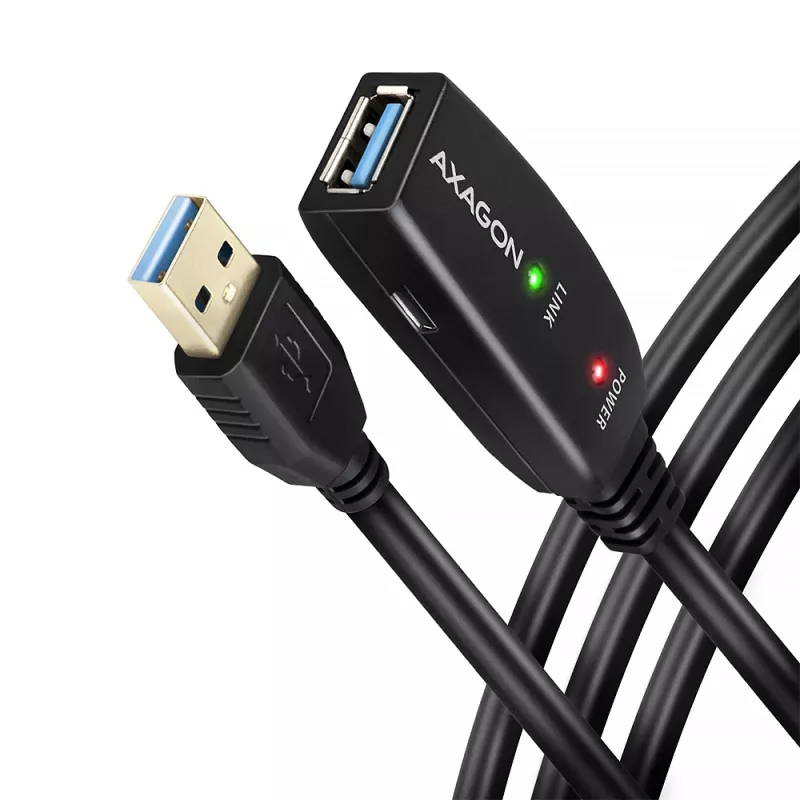

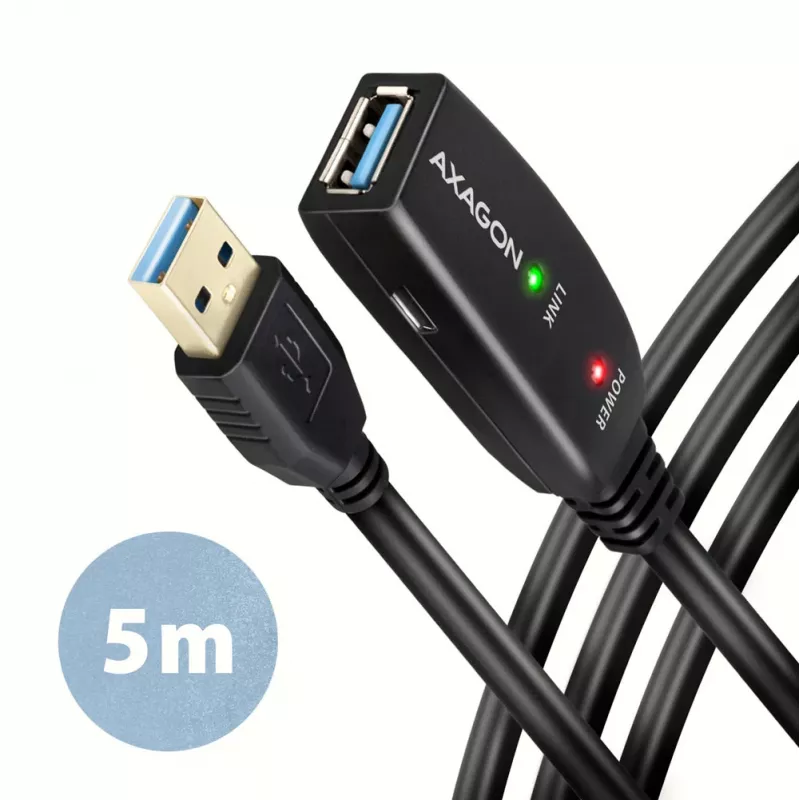

Axagon ADR-305 USB 3.2 Gen 1 A-M -> A-F actieve verleng-/repeaterkabel 5 m

Active extension AXAGON ADR-305 USB 3.2 Gen 1 cable 5 m long. Ideal for connecting your computer to a USB device such as a mouse, keyboard, webcam, printer, scanner, plotter and others. The active USB repeater cable strengthens the passing USB signal and allows you to connect a significantly more distant USB device than the usual 5 meters when passive cables are used. The range of the cable can be further extended by using several cables in a row.

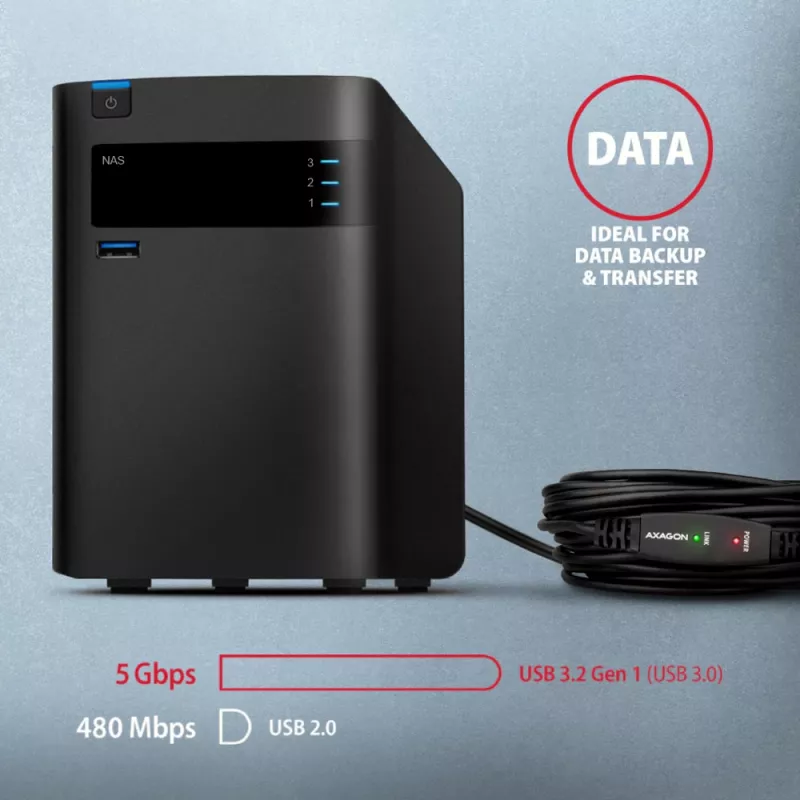

Thanks to the used USB 3.2 Gen 1 (formerly USB 3.0) interface, you can enjoy a data transfer speed of up to 5 Gbps. So, you can use the cable for devices that require higher speed, such as backup systems, NAS data storage and others.

A great advantage of the ADR-305 extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.

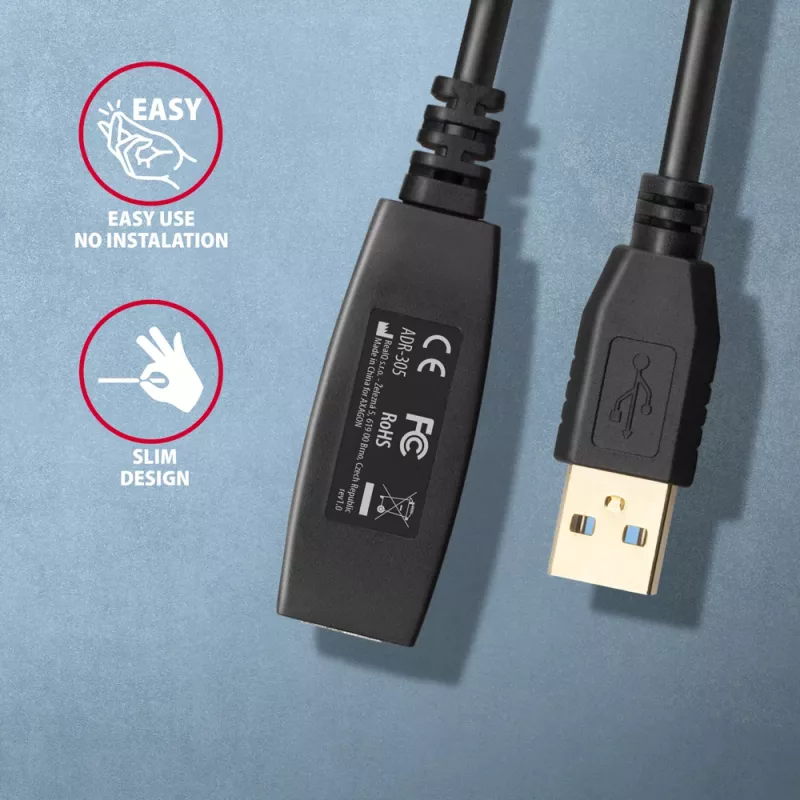

The remarkably compact body of the AXAGON repeater allows for trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.

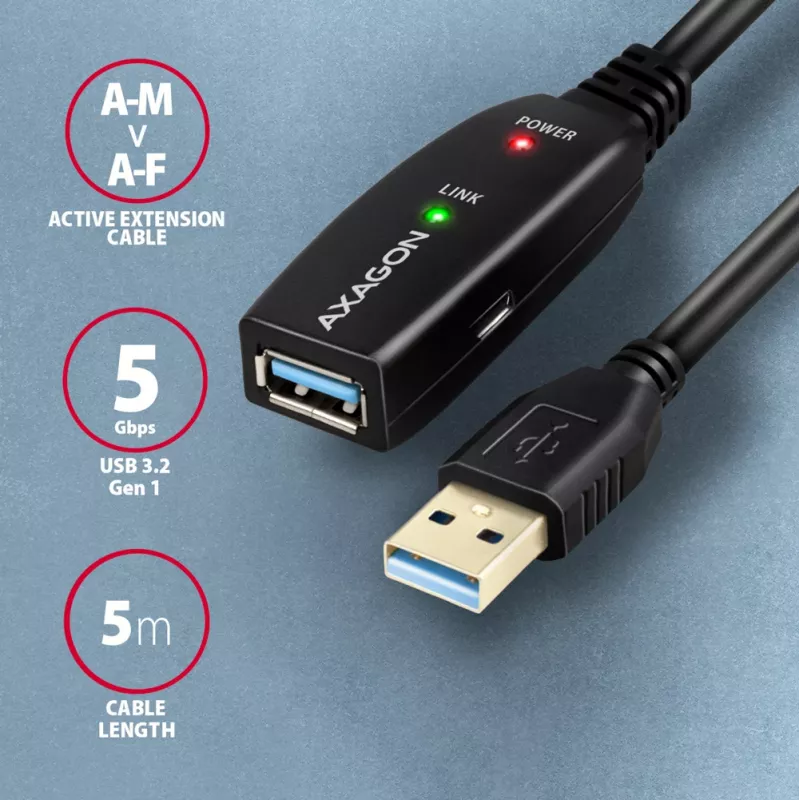

Input:
• USB 3.2 Gen 1 for connection to a computer
• USB Type A (M) male connector

Output:
• USB 3.2 Gen 1 for connecting a remote USB device
• USB Type A (F) female connector
• transmission rate 5000 / 480 / 12 / 1.5 Mbit/s (super / high / full / low speed)

Power supply:
• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).
• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.

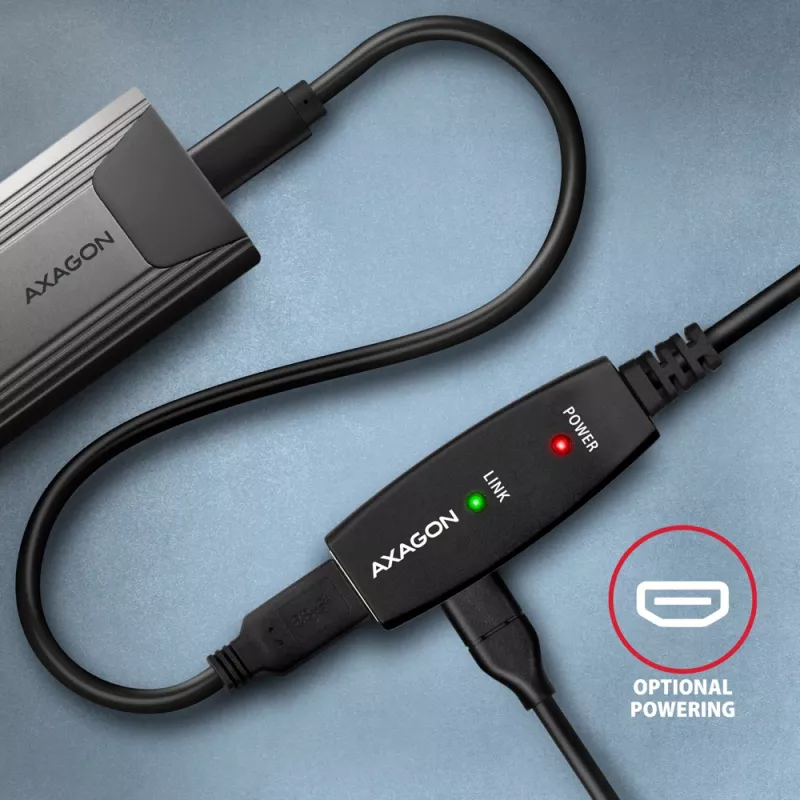

• The active part of the cable includes a Micro USB connector for additional external power supply of 5V/1-2 A.
• The power cable USB A-M / Micro USB, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.
• When powering the repeater cable with the power adapter, an external 2.5" disk can be connected without the need for own power supply to the disk.
• For longer USB route with multiple repeater cables connected in a row, the USB bus supply may be inadequate for USB devices with lower power consumption than an external 2.5" drive. Also, in this case it can help to boost the power supply by connecting a power adapter.

Other features:
• Fully compatible with USB 3.2 Gen 1 (USB 3.0) and backward compatible with USB 2.0 and USB 1.1.
• Full Plug and Play and Hot Plug support.

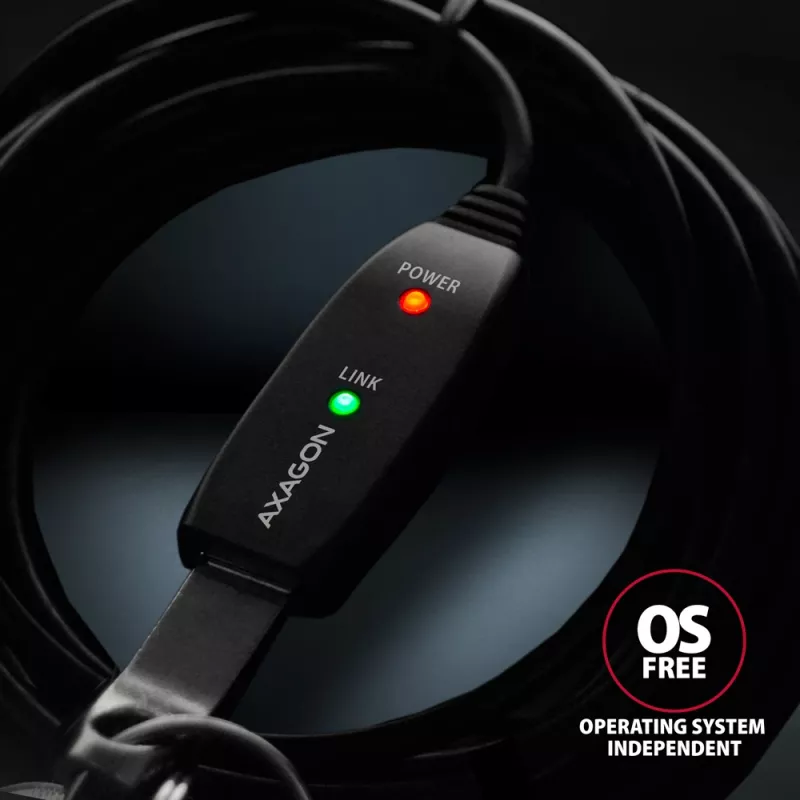

• Two LEDs indicating power and USB connection.
• Behind the active USB cable, a common passive USB cable can also be used.
• Dimensions of active part with are 75 x 24 x 13mm, cable length 5 m.
• Weight 208 g.

Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
• Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.

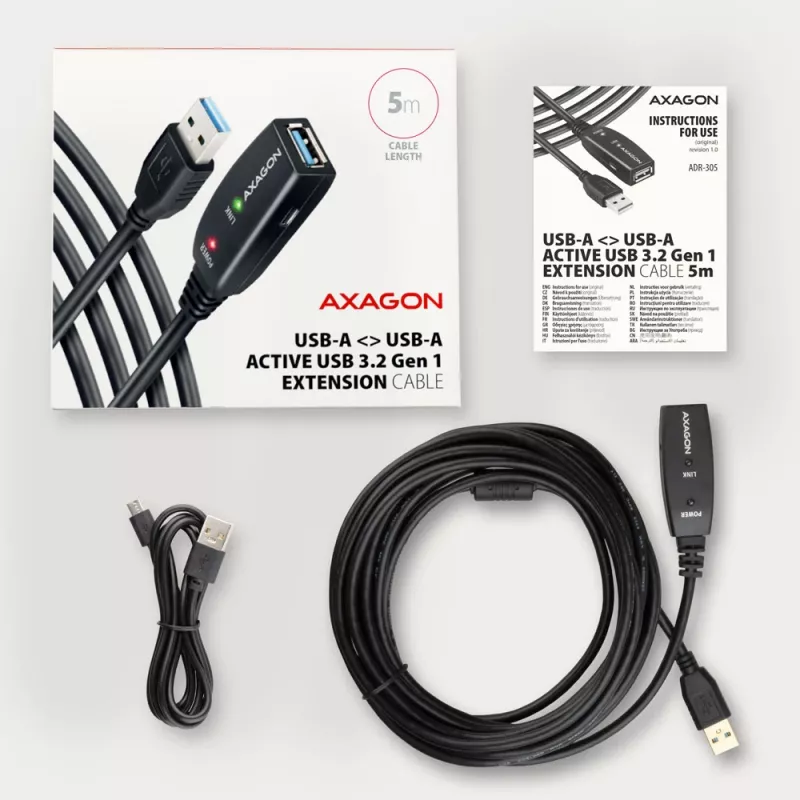

Package contains:
• USB 3.2 Gen 1 A-M > A-F active repeater 5 m long,
• USB-A / Micro USB power cable,
• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.

How to use

Connect the USB A male end to the host computer and plug the USB A female end into the remote USB device. If the connected device draws more current than the USB bus can supply, connect the included USB-A to Micro USB power cable to a suitable 5 V USB-A charger to provide additional power to the active module. Multiple ADR-305 units can be chained sequentially to extend the USB route; verify power requirements when using several repeaters in a row.

Recommendations

For most peripherals the cable will work without external power, but for power-hungry devices or long chains of repeaters use the supplied power cable and a USB-A 5 V / ≥1 A adapter. When powering the repeater with an adapter, external 2.5" drives can be used without their own power supply. Ensure connected devices and host OS are compatible; drivers are provided by supported operating systems and install automatically.
