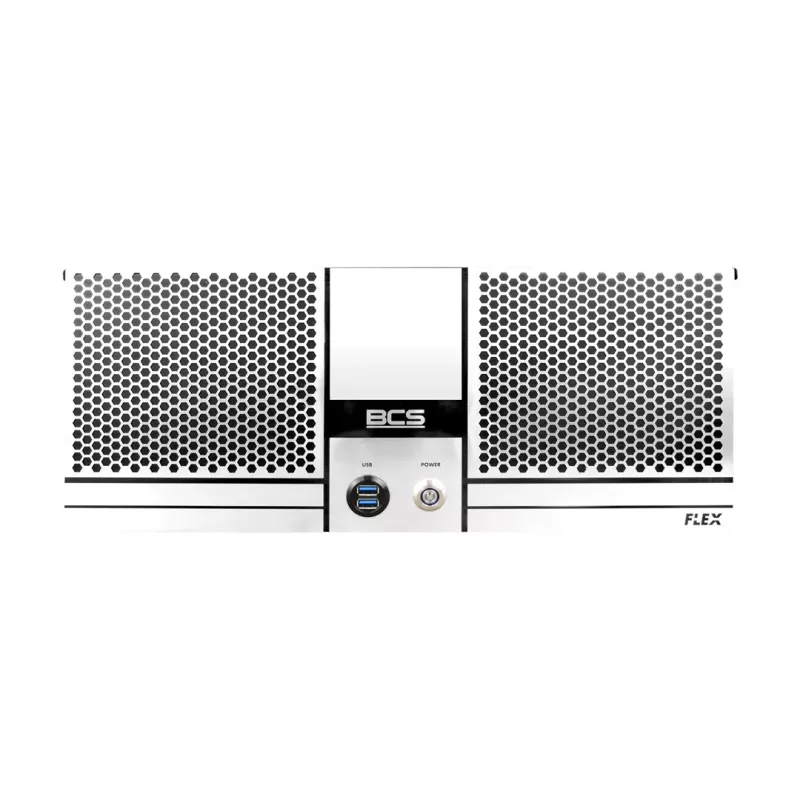

BCS 8-kanaals 4K IP NVR-recorder BCS-F-NVR7008

The BCS-F-NVR7008 is a high-performance 8-channel IP network video recorder designed for reliable 24/7 surveillance. Supporting up to 8MP (4K) resolution with H.265+ compression, it delivers crisp video while saving bandwidth and storage. Ideal for small to medium-sized security systems, this NVR offers seamless integration with BCS IP cameras and ONVIF-compliant devices.

Advantages

Efficient H.265+ compression reduces storage requirements by up to 50% compared to H.264. Plug-and-play setup with P2P support enables remote access via mobile apps (BCS Manager, DMSS). Compact design with low power consumption (<10W) makes it suitable for desktop or wall-mounted installations.

Suitable for

• Retail stores, offices, and warehouses requiring 8-channel 4K recording
• Remote monitoring applications with mobile app access
• Cost-effective surveillance upgrades from analog to IP systems

Key specifications

• Video Input: 8 IP channels (up to 8MP/4K)
• Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI (4K), 1x VGA (1080p)
• Audio: 1x RCA input, 1x RCA output
• Storage: 1x SATA port, up to 10TB
• Network: 1x RJ-45 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: DC 12V, <10W (without HDD)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with BCS 4K IP cameras and a high-quality SATA HDD (e.g., WD Purple or Seagate SkyHawk). Ensure network bandwidth of at least 60 Mbps for full channel recording.
