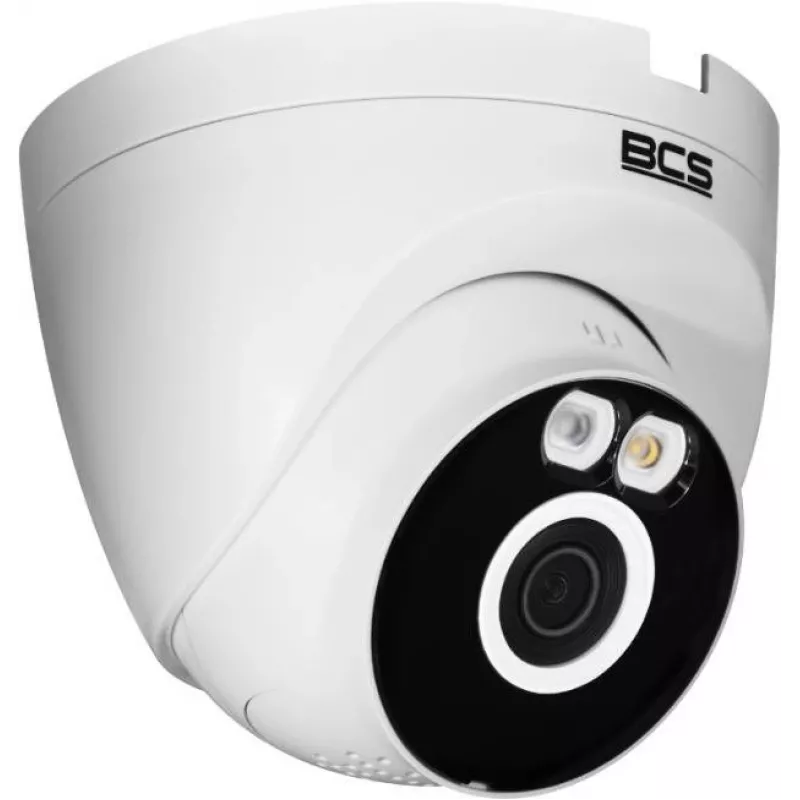

BCS LINE BCS-L-EHOME03 Camera

The BCS LINE BCS-L-EHOME03 is an IP camera with 5 Mpx resolution and a 1/2.7'' CMOS sensor. It features a fixed 2.8 mm lens with F1.6 aperture and provides IR and white light illumination with a range of 30 m.

Key features

• 5 Mpx resolution (2880 × 1620)
• Fixed 2.8 mm lens, F1.6 aperture
• IR LED + White Light illumination, 30 m range
• Built-in microphone
• AI: human and vehicle detection (false alarm reduction)
• microSD card slot up to 256 GB
• Wi-Fi 802.11 b/g/n/ax 2.4 GHz
• ONVIF (S/G/T) compliant
• IP67 rated

Specifications

• Brand: BCS
• MPN: L-EHOME03
• Product line: BCS LINE
• Camera type: HOME
• Sensor: 1/2.7'' CMOS
• Pixels: 2880 × 1620
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Field of view: H: 108°, V: 57°, D: 129°
• Camera sensitivity: 0.007 Lux (F1.6, Color, 30 IRE), 0.0007 Lux (F1.6, B/W, 30 IRE), 0 Lux (IR)
• White balance: auto
• WDR: DWDR
• Image rotation: Flip 180°
• Number of streams: 2
• Resolutions: 5M (2880 × 1620) / 640 × 360
• Main stream: 2880 × 1620 @ 1–25/30 fps
• Second stream: 640 × 360 @ 1–25/30 fps
• Bitrate: H.264: 32–4096 kbps, H.265: 32–4096 kbps
• Video compression: H.264B / H.264 / H.264H / H.265
• Day/night: mechanical infrared filter (ICR)
• Illuminator type: IR LED + White Light
• IR range: 30 m
• White Light range: 30 m
• Microphone: yes
• Audio compression: PCM / G.711a / G.711Mu
• Memory card slot: microSD up to 256 GB
• Support: mobile app (iOS, Android)
• Motion detection: yes
• Network: RJ-45 10/100 Mbps
• Wi-Fi: 802.11 b/g/n/ax 2.4 GHz
• Compliance: ONVIF (S/G/T)
• Power supply: 12 V DC
• Power consumption: max 5 W
• Housing colour: white
• Protection class: IP67
• Operating conditions: -40°C to +60°C, max 95% RH
• Dimensions: Ø109.9 × 102.2 mm
• Weight: 0.3 kg
• AI: human and vehicle detection (false alarm reduction)
• Accessories included: power supply
