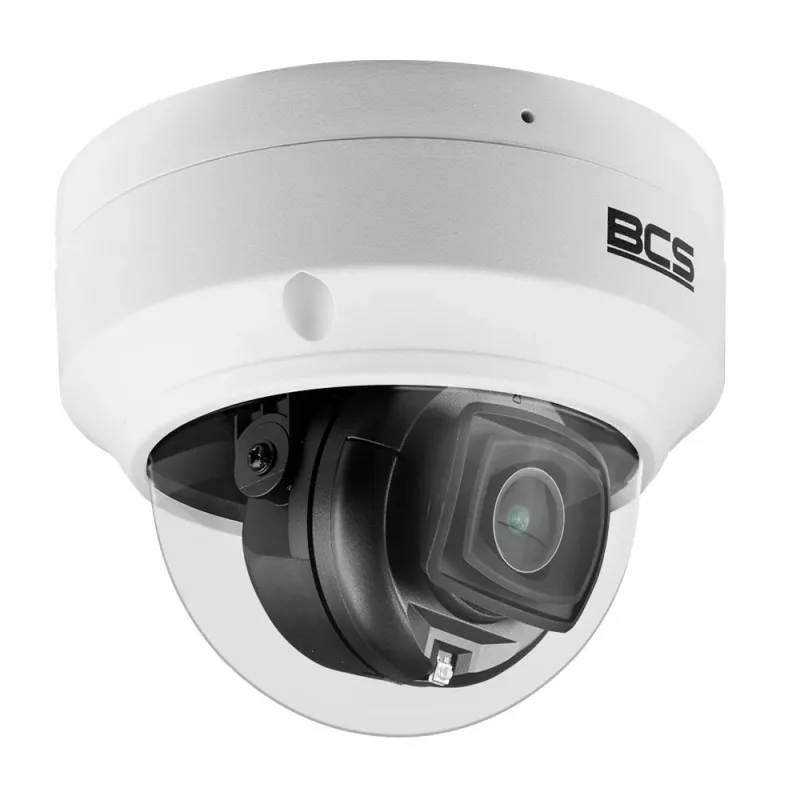

BCS-P-DIP24FCL3-Ai1 4MP IP-domecamera met AI, witlicht, PoE, IP67, IK10

For installations where reliable perimeter protection and clear identification are non-negotiable, the BCS-P-DIP24FCL3-Ai1 stands apart from conventional fixed domes. Its 4-megapixel sensor and integrated white-light LEDs deliver full-colour images up to 30 metres in total darkness, while built-in AI analytics actively distinguish humans and vehicles from false triggers. Housed in a vandal-resistant IK10 metal casing and sealed to IP67, this camera is engineered for demanding outdoor and indoor environments.

Highlights

• 4MP (2592 x 1520) resolution with DWDR for balanced exposure in high-contrast scenes
• Built-in white-light illumination (30 m) enables colour imaging at night
• AI-powered SMD, line crossing, intrusion detection, and face detection reduce false alarms
• IP67 weatherproof and IK10 vandal-resistant metal housing
• PoE (802.3af) or 12V DC power for flexible installation
• Onboard microSD slot (up to 256 GB) for local recording

In daily use

Mounting the camera is straightforward thanks to its compact dome form factor and three-axis adjustment. Once connected to an NVR or VMS, the AI analytics can be configured to trigger alerts only for relevant events—such as a person crossing a virtual line after hours—rather than every passing shadow. The integrated microphone captures ambient audio, while the audio input/output terminals allow two-way communication when paired with an external speaker and microphone. Live and recorded footage can be accessed via web browser, mobile app, or desktop client, with H.265+ compression reducing bandwidth and storage requirements without sacrificing image quality.

Full specifications

• Image sensor: 1/2.7" 4MP CMOS
• Lens: fixed 2.8 mm, horizontal field of view 98°
• Video compression: H.265+/H.265/H.264+/H.264/MJPEG
• Illumination: white-light LEDs, range up to 30 m
• Audio: built-in microphone, 1× audio in, 1× audio out
• Alarm: 1× alarm in, 1× alarm out
• Storage: microSD card slot (up to 256 GB)
• Network: 1× RJ45 10/100 Mbps Ethernet
• Power: 12V DC or PoE (802.3af), max consumption 6.5 W
• Ingress protection: IP67
• Vandal resistance: IK10
• Operating temperature: -30°C to +60°C
• Housing material: metal

Final note

With its combination of AI analytics, white-light illumination, and rugged construction, the BCS-P-DIP24FCL3-Ai1 is a dependable choice for securing perimeters, entrances, and critical areas where accurate detection and colour evidence are essential.
