BCS-P-NVR0401-4K BCS Point recorder (3) - 4-kanaals 4K NVR

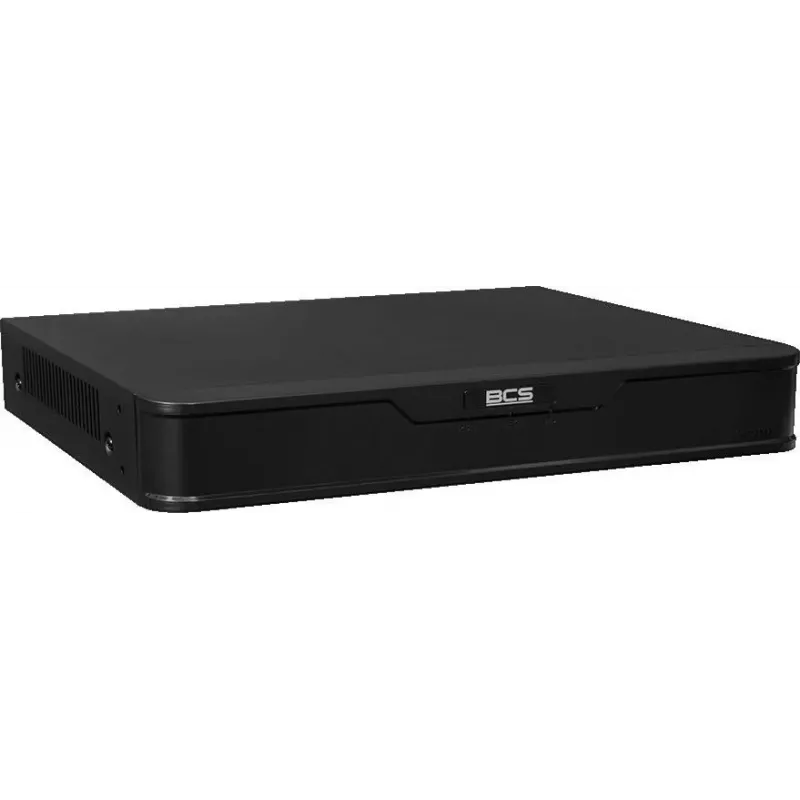

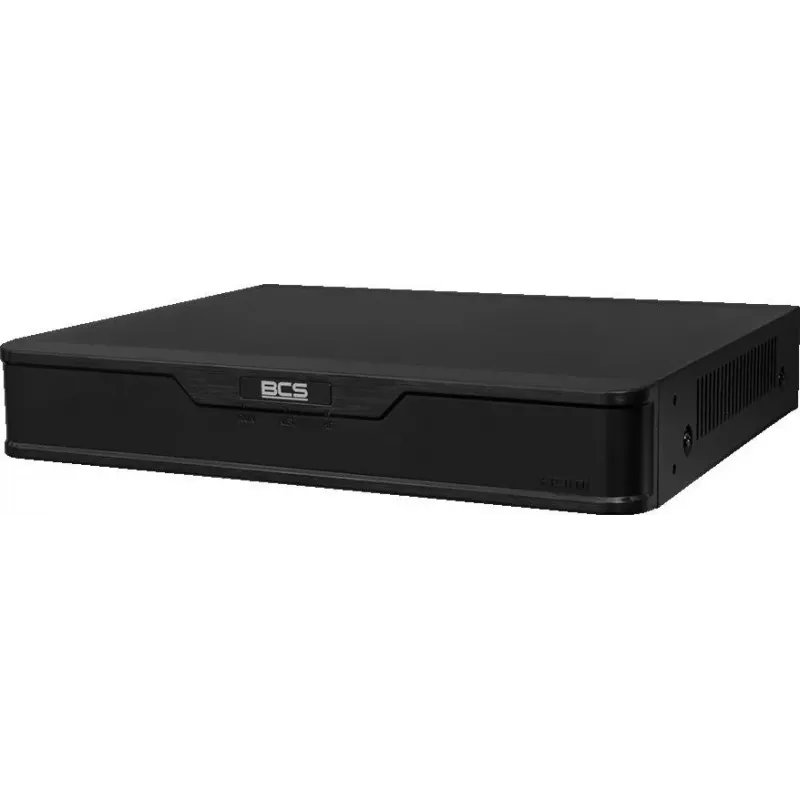

The BCS-P-NVR0401-4K is a compact and powerful 4-channel network video recorder (NVR) designed for small to medium-sized surveillance systems. It supports up to 4 IP cameras with a maximum recording resolution of 8MP (4K), delivering crisp and detailed video footage. With H.265+ compression, it optimizes storage and bandwidth without compromising quality. The recorder features a single SATA HDD bay supporting up to 8TB, providing ample storage for extended recording. Its sleek design and low power consumption make it ideal for home or office use.

Advantages

This NVR offers seamless integration with BCS Point mobile app for remote viewing on iOS and Android devices. It supports simultaneous playback of up to 4 channels, allowing efficient review of recorded footage. The device includes multiple recording modes (manual, schedule, motion detection, alarm) for flexible surveillance. With HDMI and VGA outputs, it can connect to monitors or TVs for live viewing. The unit is built for reliability with an operating temperature range of -10°C to +55°C.

Suitable for

• Small businesses (retail shops, offices)
• Residential homes
• Warehouses and storage facilities
• Remote monitoring of multiple locations

Key specifications

• Video Input Channels: 4 IP channels
• Max Recording Resolution: 8MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Audio Compression: G.711A
• HDD Bays: 1 SATA (up to 8TB)
• Network Interface: 1x RJ-45 10/100 Mbps Ethernet
• Video Outputs: 1x HDMI (up to 4K), 1x VGA (up to Full HD)
• Audio Input/Output: 1x RCA each
• USB Ports: 2x USB 2.0
• Power Supply: DC 12V / 2A
• Power Consumption: < 10W (without HDD)
• Operating Temperature: -10°C to +55°C
• Mobile App: BCS Point (iOS/Android)
• Simultaneous Playback: 4 channels
• Recording Modes: Manual, Schedule (Continuous, Motion Detection), Alarm
• Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P

Recommendations

For optimal performance, use compatible BCS IP cameras and a high-quality CAT5e or CAT6 Ethernet cable. Ensure the HDD is properly installed and formatted before use. Regular firmware updates are recommended to maintain security and functionality.
