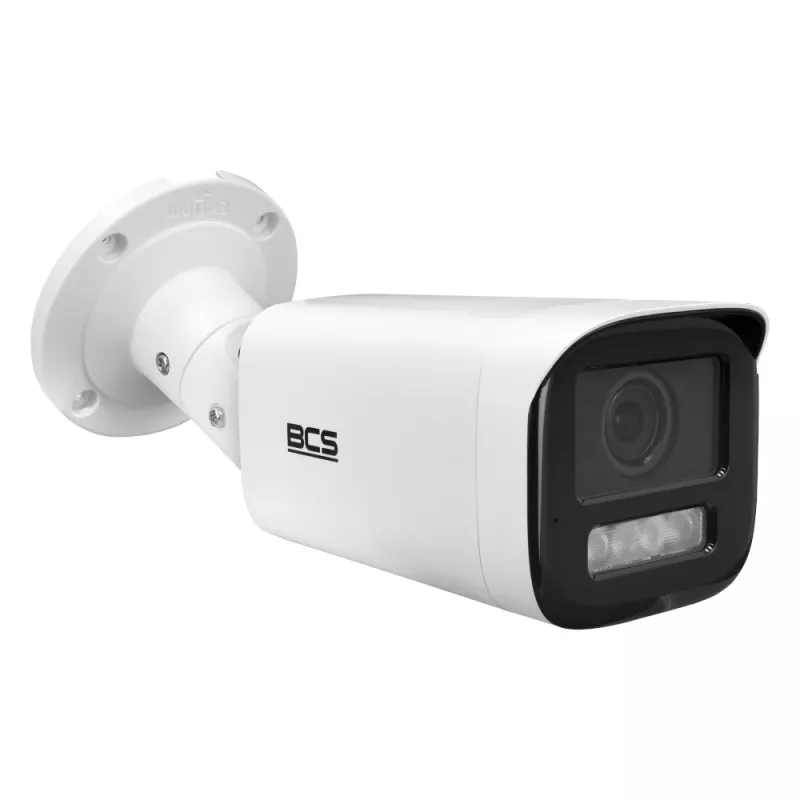

BCS-V-TIP44VSR5L5(2) 4MP IR IP-bulletcamera, 2.8mm, 50m IR, IP67, PoE

The BCS-V-TIP44VSR5L5(2) is a high-performance 4MP IP bullet camera designed for outdoor surveillance. Featuring a 1/3" Progressive Scan CMOS sensor, it delivers crisp 2560x1440 resolution at up to 30fps. Equipped with a fixed 2.8mm lens (100° horizontal FOV) and Smart IR technology with up to 50m range, it ensures clear images day and night. The camera supports H.265+ compression for efficient bandwidth and storage, and offers 120dB True WDR for challenging lighting conditions. With IP67 weatherproof rating and metal housing, it is built to withstand harsh environments. Power via 12V DC or PoE (802.3af) simplifies installation.

Advantages

This camera combines high-resolution imaging with robust build quality. The 120dB True WDR ensures balanced exposure in scenes with both bright and dark areas. Smart IR adjusts intensity to prevent overexposure, while 3D DNR reduces noise for clean video. H.265+ compression saves up to 70% bandwidth compared to H.264. ONVIF compliance guarantees compatibility with major VMS platforms.

Suitable for

• Perimeter surveillance of commercial buildings, warehouses, and parking lots
• Outdoor monitoring in residential complexes and gated communities
• Industrial sites requiring durable, weatherproof cameras

Key specifications

• Sensor: 1/3" Progressive Scan CMOS, 4MP (2560x1440)
• Lens: Fixed 2.8mm, F2.0, H-FOV 100°
• IR: Smart IR, up to 50m
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• WDR: 120dB True WDR
• DNR: 3D DNR
• Power: 12V DC, PoE (802.3af), max 6.5W
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C
• Network: 1x RJ-45 10/100Mbps, ONVIF Profile S/G/T
• Storage: MicroSD slot up to 256GB
• Smart Features: Motion Detection, ROI, Privacy Masking
• Housing: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface can support the camera's weight. For night vision, avoid obstructions within the IR range.
