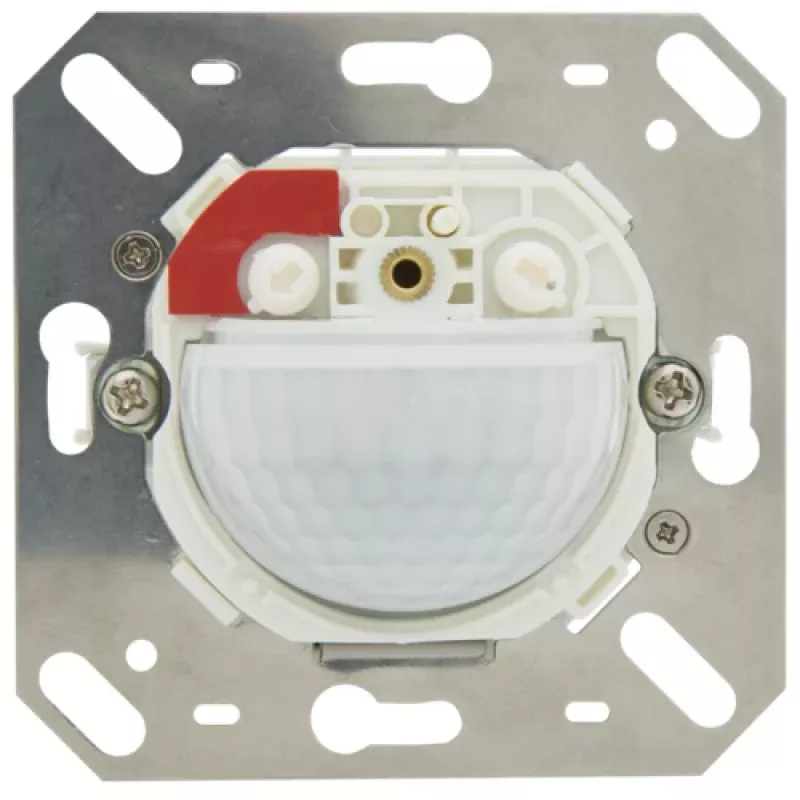

BEG BRCK LUXOMAT Indoor 180-R inbouw bewegingsmelder-inzet, 180° detectie, 2000W schakelvermogen, wit

The Indoor 180-R sensor insert stands apart from ordinary motion detectors by combining a remarkably wide 180° coverage with a discreet flush-mounted design that sits nearly invisible in the wall. It is not merely a switch—it is a precise presence-sensing module built for demanding indoor automation tasks, delivering reliable switching of lighting and other loads without compromising on aesthetics. The sensor insert is supplied without a cover frame, allowing it to be integrated seamlessly into existing switch ranges or matched with compatible frames for a clean architectural look.

Highlights

• 180° PIR detection angle for broad room coverage
• Flush-mounted installation for a discreet, professional finish
• High switching capacity: 2000 W resistive, 600 W LED
• Adjustable time delay from 15 seconds to 30 minutes, plus pulse mode
• Brightness threshold adjustable from 10 to 2000 lux
• Robust UV-stabilised polycarbonate housing in white

In daily use

Installed at a recommended height of 0.8 to 1.2 metres, the Indoor 180-R reliably detects movement within a tangential range of up to 10 metres and a radial range of 6 metres. The passive infrared sensor responds to changes in heat radiation, making it ideal for corridors, stairwells, offices, and utility rooms. The integrated potentiometers allow precise adjustment of the switch-off delay and the ambient light threshold, so the connected load is only activated when needed—reducing energy consumption and extending lamp life. The pulse function of the time delay is particularly useful for stairwell lighting controllers or existing pulse relays.

Full specifications

• Detection angle: 180°
• Mounting type: Flush-mounted (wall)
• Sensor technology: PIR (passive infrared)
• Application area: Indoor
• Operating voltage: 230 V AC ±10%
• Frequency: 50 Hz
• Max. switching power (resistive load): 2000 W
• Max. switching power (LED load): 600 W (max. 600 VA)
• Max. switching power (fluorescent lamps, uncompensated): 1000 VA
• Time delay setting range: 15 sec - 30 min, pulse
• Brightness threshold setting range: 10 - 2000 lux
• Protection rating: IP20
• Recommended installation height: 0.8 - 1.2 m
• Detection range (tangential): 10 m
• Detection range (radial): 6 m
• Power consumption (standby): approx. 0.5 W
• Ambient temperature range: -25 °C to +50 °C
• Colour: White
• Material: UV-stabilised polycarbonate

Final note

For a seamless integration into your existing switch design, the Indoor 180-R offers the perfect blend of high-performance motion detection and discreet aesthetics.
