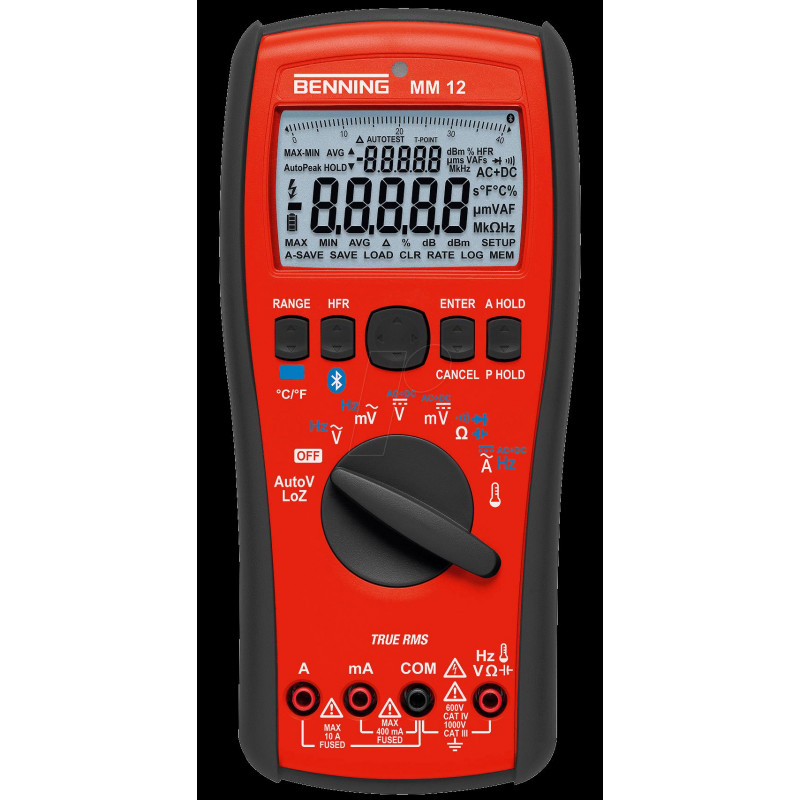

BENNING MM12 True RMS digitale multimeter met Bluetooth en datalogger, 6000 counts, CAT IV 600V / CAT III 1000V 044088

With a 6000-count display and True RMS measurement, the BENNING MM12 delivers precise readings even on non-sinusoidal waveforms. Bluetooth connectivity and a 40,000-value data logger make it a powerful tool for professional diagnostics and long-term monitoring.

Overview

The BENNING MM12 is a professional digital multimeter engineered for demanding electrical and electronic applications. It measures AC/DC voltage up to 1000 V, AC/DC current up to 10 A, resistance up to 60 MΩ, capacitance up to 10 mF, frequency up to 10 kHz, and temperature from -200 °C to +1200 °C using the included K-type thermocouple. True RMS technology ensures accurate readings for distorted waveforms, while the low-pass filter enables reliable measurements on variable frequency drives. The instrument is safety rated CAT IV 600 V / CAT III 1000 V, making it suitable for use at the source of low-voltage installations.

What stands out

• Bluetooth interface for wireless data transfer to mobile devices
• Integrated data logger with capacity for 40,000 measured values
• True RMS measurement for accurate readings on non-sinusoidal signals
• Wide measurement ranges: voltage to 1000 V, current to 10 A, resistance to 60 MΩ
• Temperature measurement with K-type thermocouple from -200 °C to +1200 °C
• Low-pass filter for measurements on frequency-controlled drives
• Auto-ranging plus diode and continuity test functions
• Includes test leads, thermocouple, battery, and protective rubber holster

Technical details

• Display: 6000 counts, digital
• DC voltage range: 0.1 mV – 1000 V
• AC voltage range: 0.1 mV – 1000 V
• DC current range: 0.1 µA – 10 A
• AC current range: 0.1 µA – 10 A
• Resistance range: 0.1 Ω – 60 MΩ
• Capacitance range: 1 nF – 10 mF
• Frequency range: 0.01 Hz – 10 kHz
• Temperature range: -200 °C to +1200 °C (K-type thermocouple)
• Safety rating: CAT IV 600 V / CAT III 1000 V
• Power supply: 9 V block battery (included)
• Connectivity: Bluetooth
• Data logger: 40,000 measured values
• Special functions: low-pass filter, auto-ranging, diode test, continuity test
• Included accessories: test leads, K-type thermocouple, battery, protective rubber holster

Our verdict

The BENNING MM12 combines high safety ratings, True RMS accuracy, and wireless data logging in a rugged package. It is an excellent choice for electricians, maintenance technicians, and engineers who need reliable measurements and convenient data documentation in the field.
