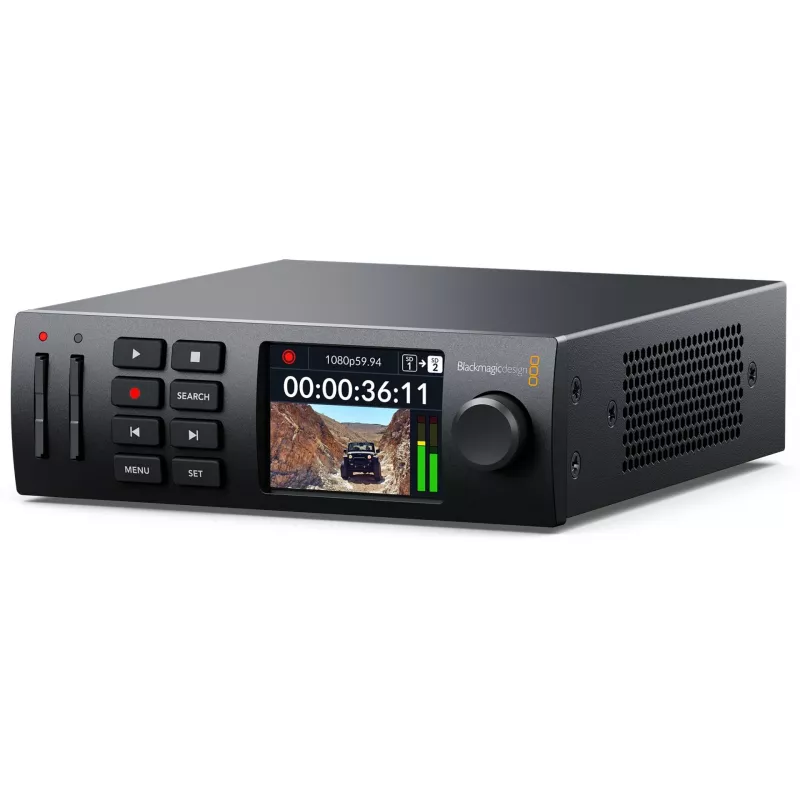

Blackmagic Design HyperDeck Studio HD Mini broadcast recorder/speler

The HyperDeck Studio HD Mini is a professional broadcast deck that records and plays back high-quality video on SD cards, offering the reliability and features needed for live production, mastering, and digital signage. Its compact 1/3 rack width design fits perfectly in outside broadcast vans, flight cases, and equipment racks.

Advantages

This deck supports recording to two SD card slots, allowing for non-stop recording with automatic card switching. It can record Apple ProRes, Avid DNxHD, and H.264 files in SD and HD formats up to 1080p60. The built-in LCD screen provides confidence monitoring of video, audio, and timecode, while the front panel transport controls enable intuitive operation. With both 3G-SDI and HDMI inputs and outputs, it integrates seamlessly into any professional workflow. The USB-C expansion port allows recording to external disks or using the deck as a webcam for live streaming. Timecode and reference inputs ensure synchronization in multi-camera setups, and RS-422 deck control enables integration with edit systems.

Suitable for

• Broadcast and live production
• Recording and playback for digital signage
• Mastering and duplication
• On-set monitoring and playback
• Live streaming via USB webcam output

Key specifications

• Video inputs: 1 x 3G-SDI, 1 x HDMI Type A
• Video outputs: 1 x 3G-SDI, 1 x HDMI Type A
• Supported codecs: Apple ProRes, Avid DNxHD, H.264
• Recording media: 2 x SD card slots (UHS-I/II), USB-C 3.0 for external recording
• Video standards: SD (NTSC/PAL), HD up to 1080p60
• Control: RS-422 deck control, Ethernet, USB-C
• Reference input: Tri-Sync or Black Burst
• Power: Built-in 100-240V AC supply
• Rack size: 1/3 RU width, 1 RU height

Recommendations

For broadcasters and video professionals seeking a compact, reliable deck with dual SD recording and versatile connectivity, the HyperDeck Studio HD Mini is an excellent choice. Its robust feature set and proven performance make it ideal for any production environment.
