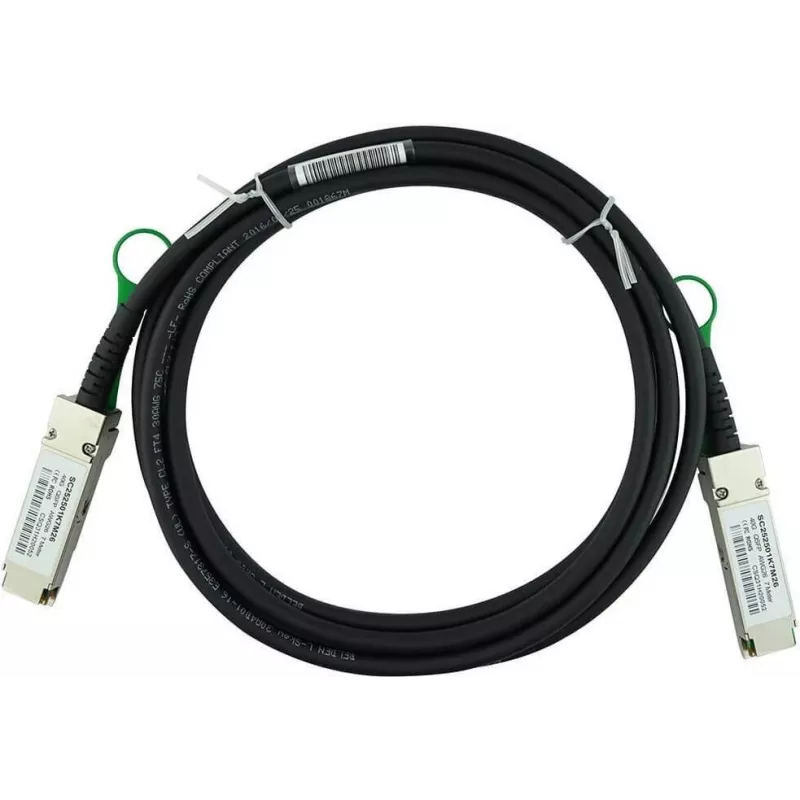

BlueLAN-compatibele Raisecom EQP-4/1-C QSFP Direct Attach kabel, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 1 meter (EQP-4/1-C-BL)

This BlueLAN compatible QSFP Direct Attach Cable (DAC) is designed for Raisecom EQP-4/1-C equipment, providing a high-performance, cost-effective interconnect solution for data centers and high-performance computing environments. With 40 Gbps data rate and passive twinax copper construction, it ensures reliable, low-latency connections.

Advantages

Cost-effective alternative to optical transceivers with lower power consumption. Passive design requires no external power, and the 30 AWG gauge ensures flexibility for tight cable management. Hot-swappable for easy deployment.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network interconnect between switches and routers
• 40GBASE-CR4 Ethernet and InfiniBand QDR applications

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Transfer Rate: 40 Gbps
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper Twinax
• Passive/Active: Passive
• Hot-Swappable: Yes
• Number of Lanes: 4
• Compatible Brand: Raisecom
• Compatible Model: EQP-4/1-C

Recommendations

For optimal performance, ensure your equipment supports 40GBASE-CR4 or InfiniBand QDR standards. This cable is ideal for short-reach, high-speed interconnects within racks.
