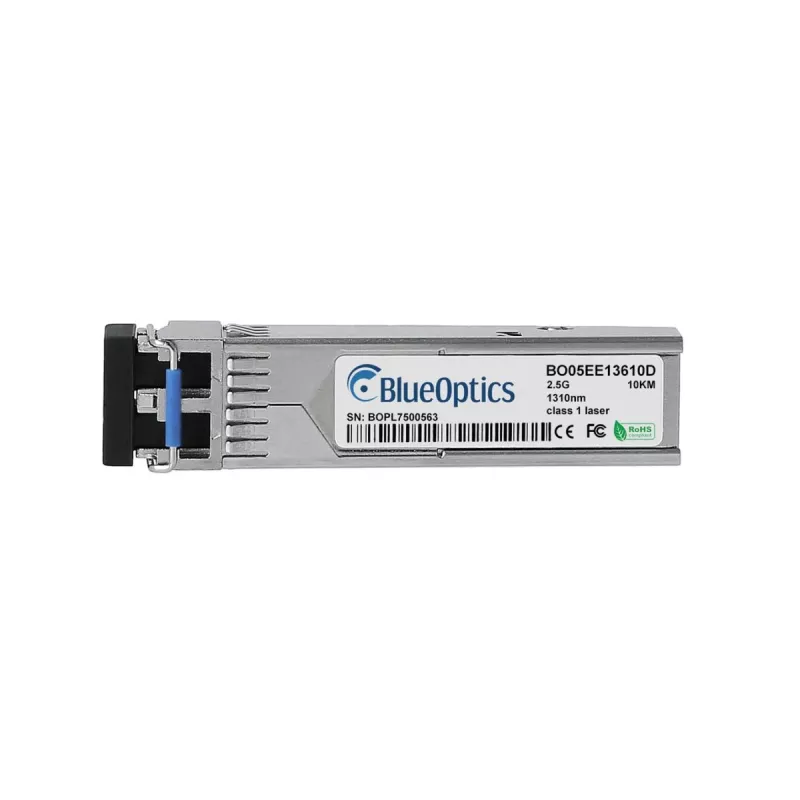

BlueOptics BO05EE13610D SFP-transceiver 2.5GBASE-LX 10km

The BlueOptics BO05EE13610D SFP Transceiver is a high-performance, hot-pluggable module designed for 2.5 Gigabit Ethernet applications over single-mode fiber. It supports the 2.5GBASE-LX standard and provides reliable data transmission up to 10 km. This transceiver is MSA compliant and features Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Advantages

Cost-effective solution for upgrading network infrastructure to 2.5G speeds. Low power consumption (<1.0W) and compact SFP form factor ensure easy integration into existing switches and routers. DDM support allows proactive network management.

Suitable for

• Enterprise and data center networks requiring 2.5G connectivity
• Metro Ethernet and access networks
• Fiber Channel storage area networks
• Point-to-point and backhaul applications

Key specifications

• Form Factor: SFP
• Data Rate: 2.5 Gbps
• Ethernet Standard: 2.5GBASE-LX
• Max Transfer Distance: 10 km
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Power Consumption: < 1.0 W
• Supply Voltage: 3.3 V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, pair this transceiver with compatible 2.5GBASE-LX switches or media converters. Use single-mode fiber (OS1/OS2) with LC connectors. Ensure proper handling and ESD protection during installation.
