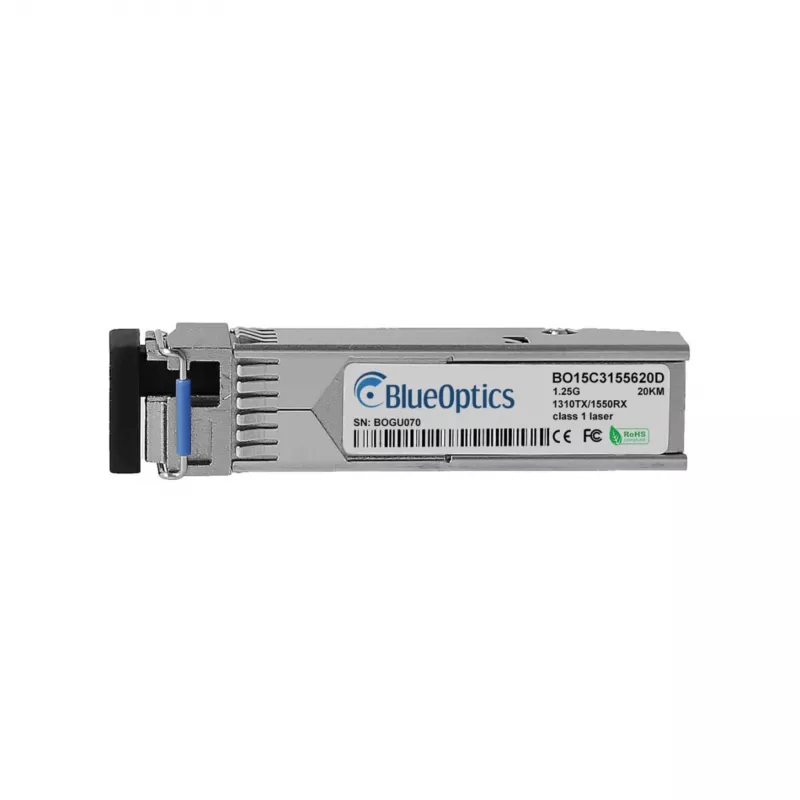

BlueOptics BO15C3155620D compatibele Synology SFP-BXU35-20KM SFP-transceiver, LC Simplex, 1000BASE-BX, 20 km

The BlueOptics BO15C3155620D is a high-performance SFP transceiver designed for compatibility with Synology SFP-BXU35-20KM. It operates at 1.25 Gbps over single-mode fiber, supporting 1000BASE-BX standards with a reach of up to 20 km. This BiDi transceiver uses LC simplex connectors and features wavelengths of 1310 nm (TX) and 1550 nm (RX), enabling full-duplex communication over a single fiber strand.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Hot-pluggable design simplifies installation and maintenance. Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters. Low power consumption (<1.0 W) reduces energy costs. MSA compliant for interoperability with a wide range of networking equipment.

Suitable for

• Gigabit Ethernet connections in enterprise networks
• Metropolitan area networks (MANs) requiring long-distance fiber links
• Data center interconnects and server uplinks
• Telecommunications and ISP infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps (1000 Mbps)
• Standard: 1000BASE-BX
• Connector: LC Simplex
• Fiber Type: Single-Mode (OS2)
• Max Distance: 20 km
• Wavelength: TX 1310 nm / RX 1550 nm
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Hot-Pluggable: Yes
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber optic cable (9/125 µm) and ensure proper cleaning of connectors before installation. This transceiver is compatible with Synology SFP-BXU35-20KM and other MSA-compliant SFP slots.
