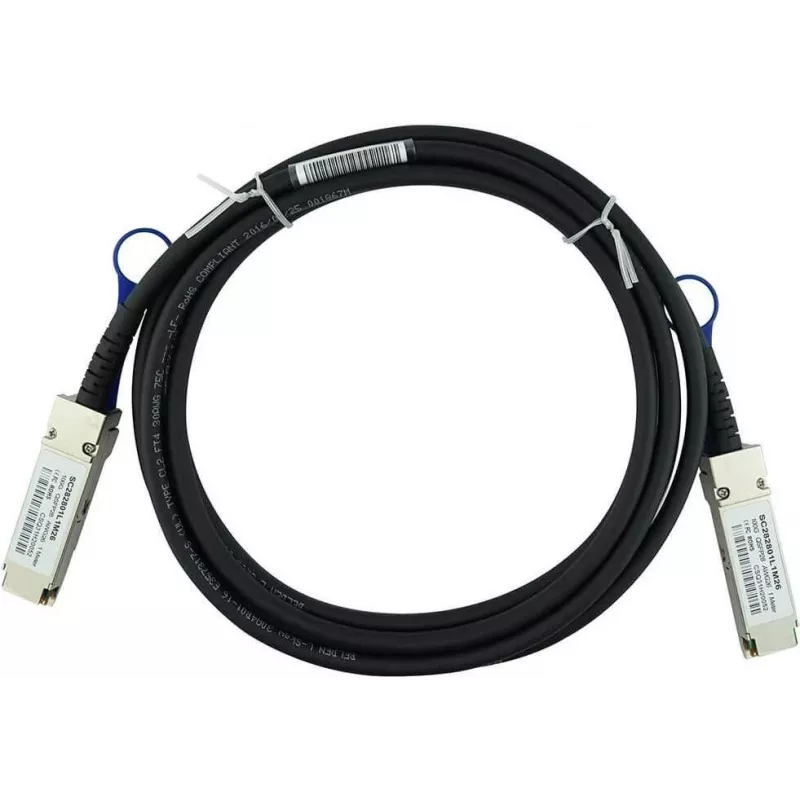

BlueOptics compatibele Amphenol NDAAFF-0004 BlueLAN QSFP28 Direct Attach-kabel, 100GBASE-CR4, Infiniband EDR, 26AWG, 5 meter (NDAAFF-0004-BL)

The BlueOptics NDAAFF-0004-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This cable is fully compatible with Amphenol NDAAFF-0004 and BlueLAN SC282801L5M26, ensuring seamless integration into existing network infrastructures. With a length of 5 meters and 26 AWG wire gauge, it provides reliable, low-latency connectivity for data centers and high-performance computing environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed interconnects. Its passive design consumes zero power, reducing overall system power consumption. The QSFP28 form factor supports hot-swappable installation, minimizing downtime during upgrades or maintenance. The copper twinax construction ensures excellent signal integrity and durability.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Storage area networks
• Enterprise networking equipment requiring 100GBASE-CR4 or InfiniBand EDR

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps (4x 25 Gbps lanes)
• Protocol Standard: 100GBASE-CR4, InfiniBand EDR
• Cable Length: 5 Meter
• Wire Gauge: 26 AWG
• Cable Material: Copper Twinax
• Transceiver Type: Passive
• Impedance: 100 Ohm
• Hot Swappable: Yes
• Power Consumption: 0W (Passive)
• Compatibility: Amphenol NDAAFF-0004, BlueLAN SC282801L5M26

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP28 ports supporting 100GBASE-CR4 or InfiniBand EDR. This cable is ideal for short-reach interconnects within racks or between adjacent racks. Always handle with care to avoid damaging the connectors.
