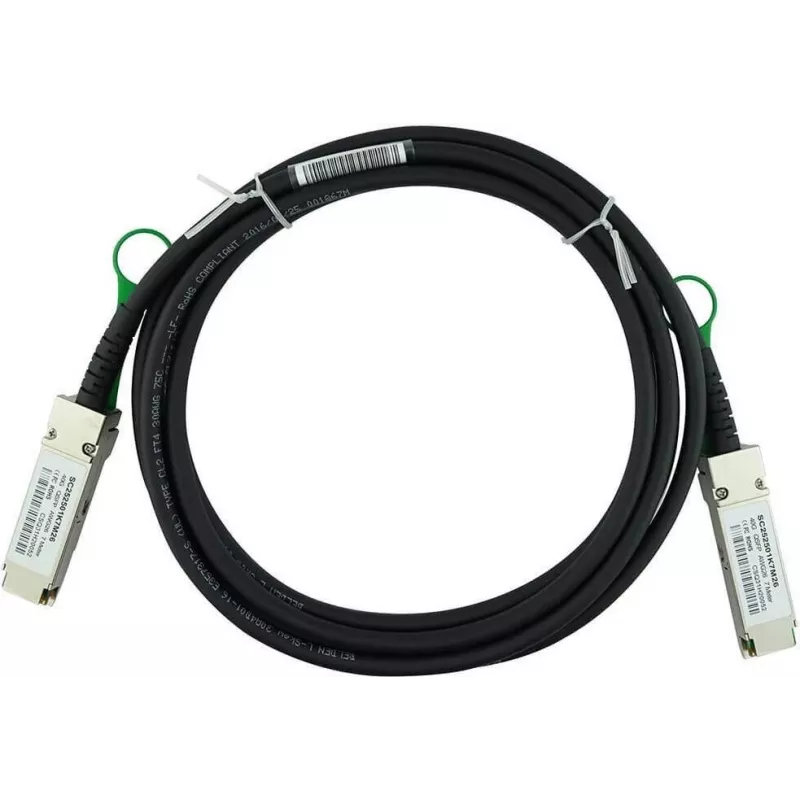

BlueOptics compatibele Maipu QSFP-STACK-20 BlueLAN QSFP Direct Attach kabel, 40GBASE-CR4, Ethernet/Infiniband QDR, 30AWG, 2 meter (QSFP-STACK-20-BL)

The BlueOptics QSFP-STACK-20-BL is a high-performance, passive Direct Attach Cable (DAC) designed for 40 Gigabit Ethernet and InfiniBand QDR applications. This 2-meter twinax copper cable features QSFP connectors on both ends, providing a cost-effective and low-power solution for short-range interconnects in data centers and high-performance computing environments. Fully compatible with Maipu QSFP-STACK-20 and other standard QSFP 40G ports, it ensures reliable, high-speed data transmission with minimal latency.

Advantages

This DAC cable offers significant advantages over active optical cables and transceivers: lower power consumption (<0.5W), reduced cost, and simplified cable management. The 30 AWG gauge ensures flexibility while maintaining signal integrity over the 2-meter length. Hot-swappable design allows for easy installation and maintenance without network downtime.

Suitable for

• Data center top-of-rack to server interconnects
• High-performance computing clusters
• Enterprise network aggregation and core switching
• InfiniBand QDR fabric connections

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 2 Meter
• Cable Type: Twinax Copper
• Wire Gauge: 30 AWG
• Supported Protocols: Ethernet, InfiniBand QDR
• Compatibility: Maipu QSFP-STACK-20 and other QSFP 40G ports
• Passive/Active: Passive
• Hot-Swappable: Yes
• Power Consumption: < 0.5W
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP ports. This cable is ideal for short-distance, high-bandwidth links within racks or between adjacent racks. For longer distances, consider active optical cables or fiber transceivers.
