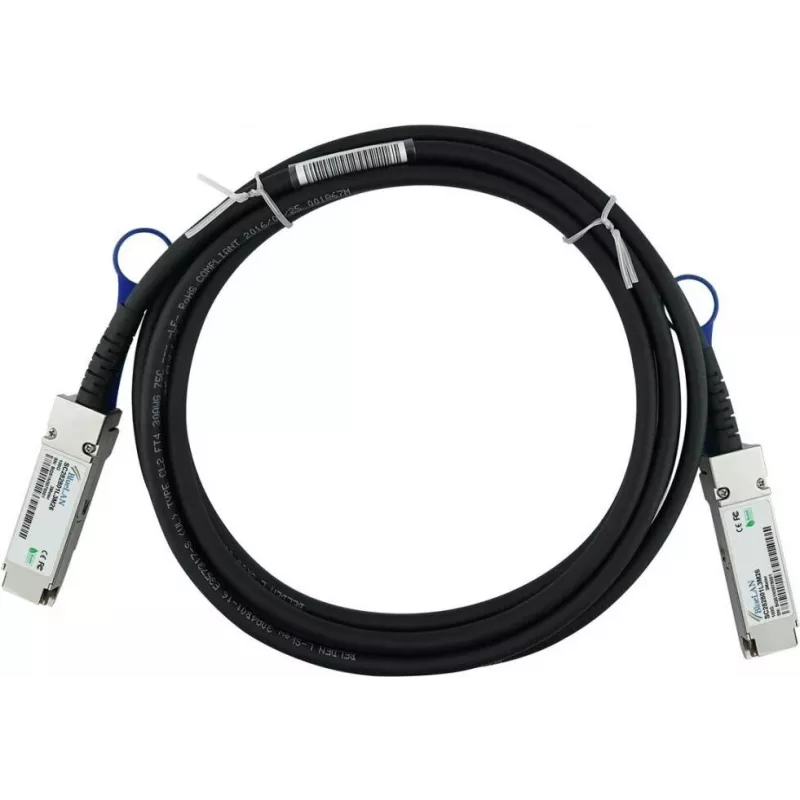

BlueOptics Dell 470-ABOX BlueLAN SC282801L3M26 QSFP28 Direct Attach kabel, 100GBASE-CR4, 26AWG, 3 meter

This BlueOptics Dell 470-ABOX BlueLAN SC282801L3M26 QSFP28 Direct Attach Cable (DAC) is a high-performance, passive copper cable designed for 100 Gigabit Ethernet connectivity. It provides a cost-effective and reliable solution for short-range interconnects in data centers and enterprise networks.

Advantages

• 100 Gbps data rate for high-bandwidth applications
• Passive copper design with low power consumption (<0.5W per end)
• Hot-swappable QSFP28 connectors for easy installation
• Compliant with 100GBASE-CR4 standard
• Backward compatible with QSFP+ and SFP+ ports

Suitable for

• Data center server-to-server connections
• Switch-to-switch interconnects
• High-performance computing clusters
• Storage area networks

Key specifications

• Connector Type: QSFP28 to QSFP28
• Data Transfer Rate: 100 Gbps
• Cable Length: 3 meters (9.84 ft)
• Wire Gauge: 26 AWG
• Cable Material: Passive Copper
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is an OEM compatible alternative for Dell 470-ABOX.
