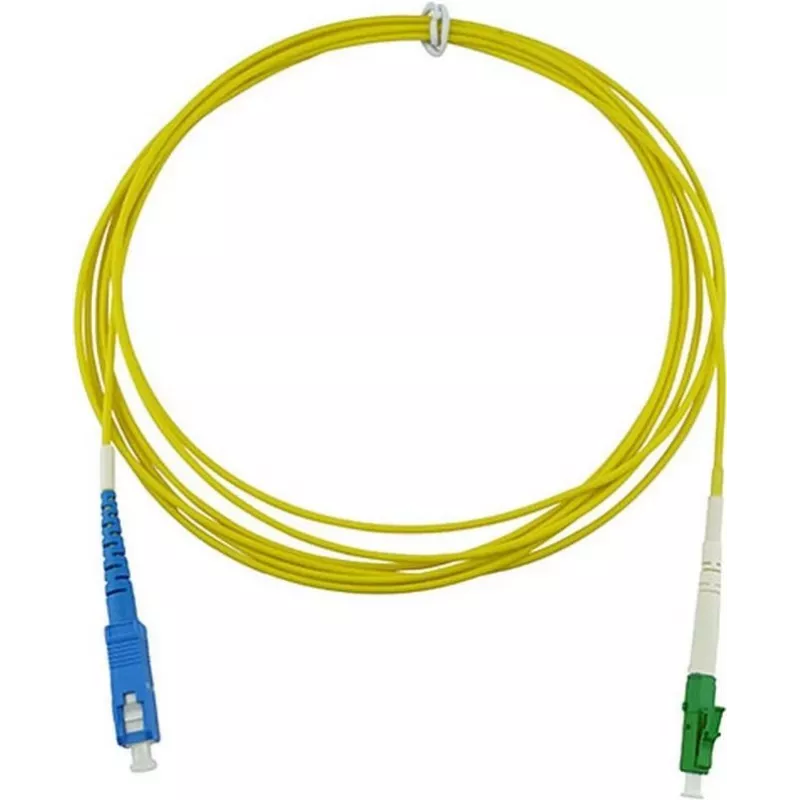

BlueOptics simplex glasvezel-patchkabel LC/APC naar SC/UPC Singlemode OS2 7m LSZH geel

This simplex fiber optic patch cable delivers a reliable 7-meter link between LC/APC and SC/UPC terminations, engineered for single-mode OS2 networks. Its low insertion loss of ≤0.2 dB ensures stable, high-performance connectivity in demanding environments.

Advantages

The 9/125 µm OS2 fiber core provides exceptional signal integrity over long distances. The LC/APC connector achieves a return loss of ≥60 dB, minimizing back reflections, while the SC/UPC connector offers ≥50 dB. The LSZH jacket is flame-retardant and low-smoke, making it safe for indoor use. With a dynamic bend radius of 10D and static of 5D, it withstands tight installations without performance degradation.

Suitable for

• Data centers requiring high-density fiber connections
• Telecommunications networks and FTTx deployments
• LAN and SAN infrastructures
• Environments with strict fire safety regulations

Key specifications

• Cable type: Simplex fiber optic patch cable
• Fiber mode: Singlemode OS2
• Connector A: LC/APC
• Connector B: SC/UPC
• Length: 7 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 3.0 mm
• Insertion loss: ≤0.2 dB
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754, IEC 61755

Recommendations

For optimal performance, pair this cable with BlueOptics transceivers and ensure proper bend radius management during installation. Ideal for professionals seeking a durable, high-quality fiber link.
